Tsd63-315 Type Pipe Butt Fusion Welder for Pipes Welding

Product Description

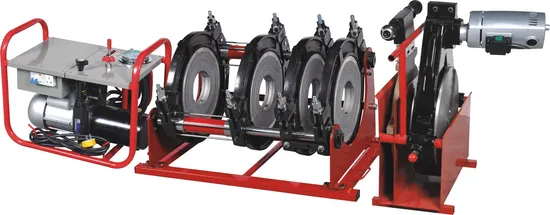

Hydraulic Butt Fusion Welding Machine TSD63-315:
This machine is designed for butt welding of pipe-to-pipe and pipe-to-fitting of PE PP PVDF and
other thermo-plastic materials.It can work in trenches,worksite and workshop,and it is an ideal
joining equipment for water and gas supply pipelines.
Characteristic & Benifit:
1.Detaching device is especially designed to break off melted pipes end from the heating plate
on the expiry of heating up.
2.Safety switch enables the trimmer to start only when it is located in the operation position.
3.A mechanical lock excludes the disengagement of the trimmer during the operation
4.Removable heating plate with DuPont high quality non-stick PTFE coating, and also equipped
with digital temperature controller
5.Low temperature difference in heating plate surface, within7 degree
6.Steel stand for trimmer & heating plate is with location pin for heating plate for carrying protection.
7.Incorporated with large easy to read scale pressure gauge, accumulator, pressure regulation
valve, swing check valve, high pressure hoses, and quick couplers
8.Imported oil seal & Italian quick couplers
9.Fine operation panel with clearly strong meshing printing character
Specification & Detail

Model	TSD630
Welding range	315 355 400 450 500 560 630mm
Power supply	380V±10%, 50Hz
Overall cylinder section	23.1CM2
Max. Pressure	6MPa
Total power	12.2KW
Heating plate power	9.2KW
Trimmer motor power	1.5KW
Hydraulic unit motor power	1.5KW
Heating plate Max. Temp.	270ºC
Heating plate temperature difference	±7ºC
Manufacture standards	ISO12176-1
Overall Weight (kg)	622KG

Standard machine includes	√ Main frame with 4 main clamps only
	√ Complete hydraulic unit
	√ Carrying stand with trimmer & heating plate
Optional parts	Layer inserts		630*560,560*500,500*450,450*400,355*400,355*315
	Single inserts	Wide inserts pipe-to-pipe	630*560,630*500,630*450,630*400,
		Beveled inserts pipe-to-fitting	630*560,630*500,630*450,630*400,630*355,630*315
