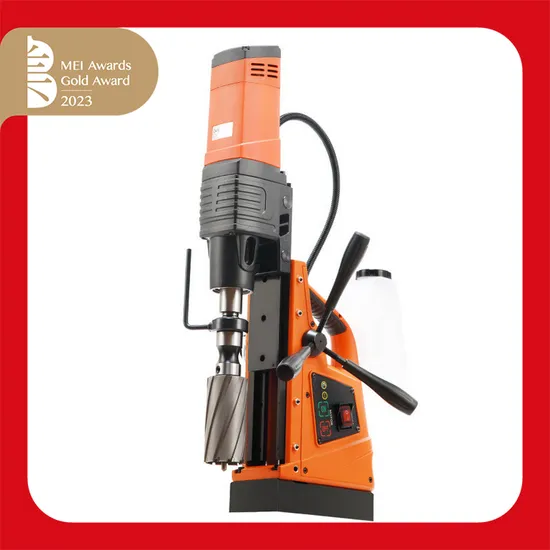

Dx-60 220V 1500W 15000n Mt3 Magnetic Base Drill Machine

Product Description

Product Type	DX-35	DX-60
Stroke	120mm	170mm
Magnetic base bize	167*84*44mm	210*100*45mm
Input power	1100W	1500W
The max cutting depth	50mm (2")	75mm
The max cutter capacity diameter	35mm (1-3/8")	60mm
Motor can adjust the height to	95mm	130mm
The max diameter of twist drill	13mm	31.5mm
The min cutter depth	10mm	10mm
Magnetic adhesion	10000N	15000N
The type of shank	19.05mm (3/4")	MT3
Total weight	15.4kg	25.4kg
Load speed	450rpm	250/450rpm
Countersunk drilling	10-35mm	10-50mm

Company Profile

Zhejiang Xinxing Tools Co., Ltd. established in 1992, is a manufacturer concentrating on R&D and manufacture of cutting tools with high-performance. Drafting unit for Chinese industrial standard of annular cutter.
Our products include high efficiency energy saving annular cutter series that won the single industry
champion, and rail cutter, hole saw, and self-developed magnetic drilling machine series.
In addition, a series of high-precision tools, spade drill, BTA deep hole drill, S drills, and milling cutter have been added.
The company has modern production lines, including internationally-known numerical control machine tool, full-automatic CNC machine tool, heat treatment production line, strong production capacity, From raw material testing, blanking, rough processing, heat treatment, finishing processing to finished product inspection and testing, and all the production processes are completed by our own factory. For you, which means: The most reliable products supply and the fastest delivery time.
After many years of technological innovation and development, the company has more than 110 core independent intellectual property rights patents, including 10 invention patents. The company implements a strict quality management system and has successively passed the ISO9001 quality system certification and the ISO14001 environmental system certification.
In the future, CHTOOLS will devote to become a leading international cutting tool manufacturer, provide you with more effective and better services, become your trusted tool supplier.
