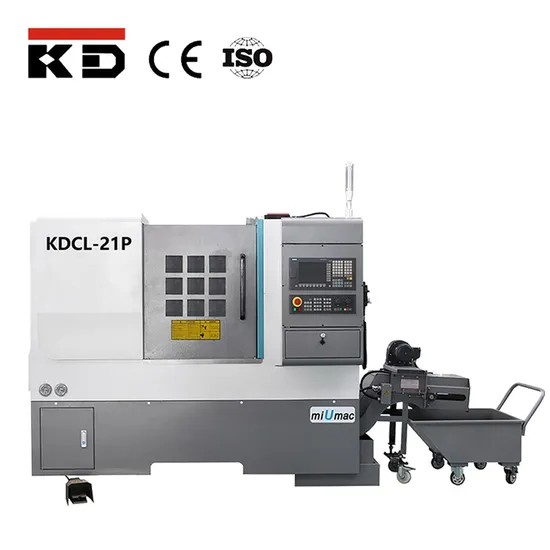

Kdcl-21p 2320X1650X1750mm Metal-Cutting Tools CNC Lathe Machine
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDCL-21P
Movement Method
Contour Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Max. Swing Over Bed
420mm
Max. Length of Workpiece
280mm
X Travel
450mm
Z Travel
350mm
Max. Speed of Spindle
60-4000rpm
Spindle Nose
A2-5
Diameter of Spindle Thru Hole
56mm
Main Motor
5.5kw
Transport Package
2320X1650X1750mm
Specification
2320x1650x1750mm
Trademark
kaida
Origin
Zhejiang
HS Code
8458110000
Production Capacity
50 Set/ Month
Product Description
KDCL-21P 2320x1650x1750mm Metal-Cutting Tools CNC Lathe MachineFEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
| MODELS | KDCL-21P |
| CAPACITY | |
| Max. swing over bed | Ф420mm |
| Max. cutting diameter for disc parts | Ф120mm |
| Max. length of workpiece | 280mm |
| TRAVEL | |
| X travel | 450mm |
| Z travel | 350mm |
| Guide ways X&Z | Precision linear ball rail |
| FEED | |
| Rapid feed for axis X | 28m/min |
| Rapid feed for axis Z | 28m/min |
| SPINDLE | |
| Max. speed of spindle | 60-4000rpm |
| Spindle nose | A2-5 |
| Diameter of spindle thru hole | Ф56mm |
| Hydraulic chuck | 6″ |
| Type of spindle motor | Servo motor |
| TOOL POST | |
| Tool number | Gang Tool |
| Gang tool table/distance between T-slot | 200x650mm/50mm |
| Standard tool size | 20x20mm |
| OTHERS | |
| Main motor | 5.5kW |
| Min. input | 0.001mm |
| Bed structure | 45° slant bed |
| Overall dimensions(L×W×H) | 2320×1650×1750mm |
| Net weight | 2500kg |
PRODUCT CONFIGURATION
