Automatic Unloading Fiber Laser Cutter Cutting Machine for Profile Tube 4000W

Product Description

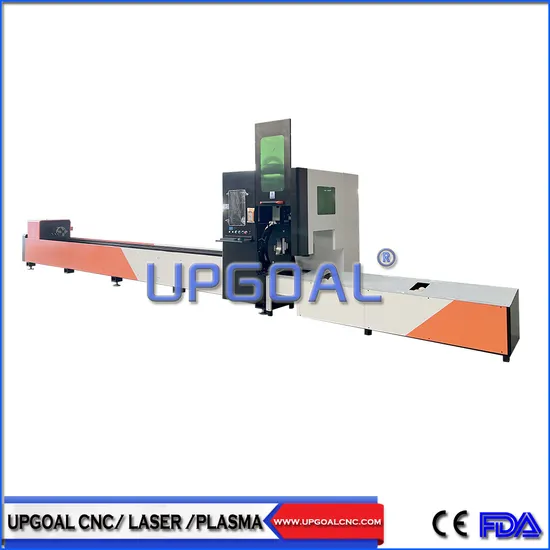

Automatic Unloading Fiber Laser Cutting Machine for Profile Tube 4000W
Features
UPGOAL tube profile fiber laser cutting machine is specially designed for metal tubes with superior performance and simple operation. The tube fiber laser cutting machine has good cutting quality and cutting efficiency. It uses the strong heat generated by the high-density laser beam to irradiate the surface of the material to realize the cutting of metal pipes. Its standard diameters are 220mm, 160mm, 320mm, and the standard length is 6m. Other sizes can be customized.
(1) Strong compatibility, can be flexibly applied to cutting metal round pipes, square pipes, rectangular pipes, special-shaped pipes, etc., and can process any graphics and patterns.
(2) High precision, fast speed, narrow cutting seam, small heat-affected zone, smooth cutting surface without burrs.
(3) Non-contact cutting, with auto focusing RayCus BM06K auto focusing laser cutting head will not touch the surface of the material and scratch the workpiece.
(4) Fully automatic chuck adopts dual pneumatic mode to automatically fix the pipe to avoid possible displacement during the cutting process and ensure cutting accuracy.
(5) Adopted stable RAYCUS RFL-C4000W fiber laser source, photoelectric conversion rate is high, high beam quality, work life of more than 100,000 hours, no maintenance costs.
(6). The FSCUT 3000DE control system is embedded with a rich memory of laser cutting setting references, flexible layout designs and tool path editing, data import/export,bridging, coedge, beam compensation, curve smoothing, division, caombination, automatic identification of exterior and interior modes and so on, compatible, with laser source brands such as IPG, SPI, JK, Raycus, etc.
(7). Adopted Yaskawa Japan 1300W 850W servo motor and driver for XY axis, rotary axis with 1.8KW/2.9KW the servo motor with SHIMPO reducer, more accurate, It realizes closed-loop control of position, rotating speed is more faster, general rated speed can reach 2000~3000 rpm; With high strong anti-overload capability, and smooth operation at low speed, no stepping operation similar to stepper motor when running at low speed.
(8) Teyu S&A Industrial chiller , ensuring fiber laser and laser head can be cooled quickly to ensure that the laser machine has stable power even working at high temperature, high efficient and fast operation.
(9) Adopted SMC Japan proportional valve for both Oxygen and Nitrogen, improve cutting accuracy & save gas.
(10) Automatic blanking rack, can realize blanking of long workpieces, limit the swing of pipes within the length range, and improve cutting accuracy and blanking reliability.
(11) Gantry double-drive structure,with imported Hiwin, Taiwan Linear square guide rail with ball bearing slide block which ensure high weight capacity, high precision, smooth and steady running.Taiwan YYC rack&pinion transmission system for XY-axis,improves the production efficiency.
(12) High-rigidity heavy chassis,reducing the vibration generatedduring high-speed cutting greatly. High-performance vaiation aluminium crossbeam,after finite element analysis,realizes highly accelerated circular arc cutting speed.
(13) Air blower 1500W for blow- off.
(14) Optional screw type air compress with driver & filter, and voltage stabilizer.
Technical Parameters

Model	UG-2260FL
Cutting diameter	φ20*20-φ240*240mm
Cutting length	6000mm
Laser type	Fiber laser generator
Laser working medium	Fiber
Laser wavelength	1080±5 nm
Cutting head	RAYTOOLS BM06K auto focusing pointed tip
Rated output power	4000W(MAX/RAYCUS brand)
Laser cutting system	FCUT3000
Driving system	Fuji/Yaskawa Japan servo motor 1300W/850W
Reduction gear	SHIMPO, Japan
Guide rail	Linear square guide rail, Hiwin, Taiwan
Transmission system	Helical rack and pinion transmission, YYC, Taiwan
Proportional valve	SMC, Japan
Straight axis positioning accuracy	± 0.01-0.05mm/m
Straight axis re-positioning accuracy	± 0.01-0.05mm/m
Cutting precision can be reach	±0.2mm
Maximum travelling speed	100m/min
Cutting speed	20m/min
Maximum acceleration	1.5G-1.8G
Maximum rotation speed:	100RPM
Quick clamping response in seconds	1-2S
Power supply	AC380V, 50/60Hz, three phases
Graphic format supported	CAD,DXF, etc
Lubrication system	Automatic
Working environment	Temp:0-40ºC,humidity:≤80%,No condensation
Machine size	10800*2150*2050mm
Weight	3000kg
Certificate	CE/FDA

Application
It is suitable for various special-shaped pipes such as round pipes, square pipes, rectangular pipes, oval pipes, etc.Professional for cutting carbon steel tube, stainless steel tube, galvanized tube, electrolytic tube, silicon steel a variety of thin metal metarials.
Application Industry
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc.
Applicable materials:
Used for cutting various metal materials such as carbon steel, low carbon steel, galvanized steel, stainless steel, brass, aluminum, gold, silver, titanium, spring steel and copper can be flexibly processed round pipes, square pipes, rectangular pipes, elliptical pipes and special-shaped pipes, etc.
