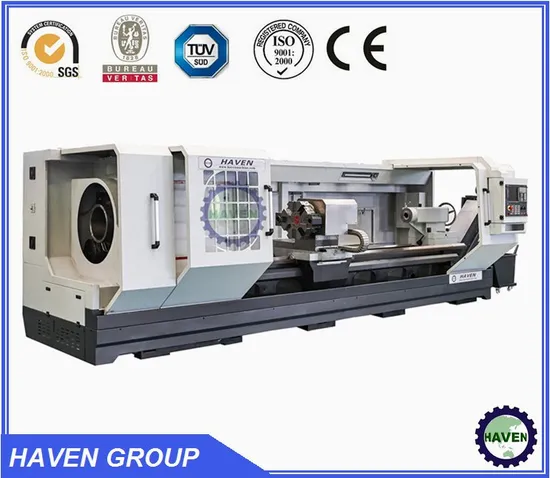

CNC Pipe Thread Lathe Machine
| US$99.00-99,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
QK1332
Tool Holder
4 Stations Tool Post
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Control System
GSK or Fanuc
Max. Dia. swing over bed
1000mm
Max. Dia. swing over cross slide
610mm
Distance between centers
1500mm
Transport Package
Wooden Pallet
Specification
QK1332
Trademark
HAVEN
Origin
China
HS Code
84581900
Production Capacity
50 Units/Month
Product Description
QK1332 CNC Pipe Thread Lathe MachineMain feature:
QK13 series of CNC pipe threading lathe is mainly used for processing inner and outer pipe thread, metric thread and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface, conical surface and other revolution and end surface as general CNC lathes
Main specification:
| SPECIFICATION OF YIMAKE LATHE MACHINE | |||||
| ITEMS | UNIT | QK1332 CNC Pipe Lathe | |||
| Basic | Max. Dia. swing over bed | mm | Φ1000 | ||
| Max. Dia. swing over cross slide | mm | Φ610 | |||
| Distance between centers | mm | 1500 | |||
| Range of machining thread | mm | Φ190-320 | |||
| Width of bed way | mm | 755 | |||
| Main motor | kw | 30 (direct drive) | |||
| Coolant pump motor | kw | 0.125 | |||
| Spindle | Spindle bore | mm | Φ330 | ||
| Spindle speed (frequency conversion) | r/min | 3 steps: 10-60 / 60-100 / 100-240 | |||
| Tool post | Number of tool stations | -- | 4 | ||
| Size of tool section | mm | 40×40 | |||
| Feed | Z axis servo motor | kw/Nm | GSK:2.3/15 | Fanuc:2.5/20 | Siemens:2.3/15 |
| X axis servo motor | kw/Nm | GSK:1.5/10 | Fanuc:1.4/10.5 | Siemens:1.5/10 | |
| Z axis travel | mm | 1250 | |||
| X axis travel | mm | 500 | |||
| X/Z axis rapid traverse speed | mm/min | 4000 | |||
| Number of feed and screw pitch | mm | 0.001-40 | |||
| Accuracy | Positioning accuracy | mm | 0.020 | ||
| Repositioning accuracy | mm | 0.010 | |||
| CNC system | GSK | -- | GSK980TDC | ||
| Fanuc | -- | Fanuc Oi Mate TD | |||
| Siemens | -- | Siemens 808D | |||
| Tailstock | Tailstock quill diameter | mm | Φ140 | ||
| Tailstock quill taper | mores | m6# | |||
| Tailstock quill travel | mm | 300 | |||
| Tailstock cross travel | mm | ±25 | |||
| Others | Dimension(L/W/H) | mm | 5000×2100×2100 | ||
| Net weight (kg) | kg | 11500 | |||
| Gross weight | kg | 13000 | |||
| Accessory | Tool post | 1 set | 4 position NC turret | ||
| Chuck | 2 set | Φ780 four-jaw electric chuck | |||
| Center rest | -- | negotiate if necessary | |||
| Rear support bracket | -- | negotiate if necessary | |||
| Package | Standard export package | 1 set | Steel pallet iron frame and plywood box | ||
