Universal Radial Turret Milling Machine Milling Drilling Machine

Product Description

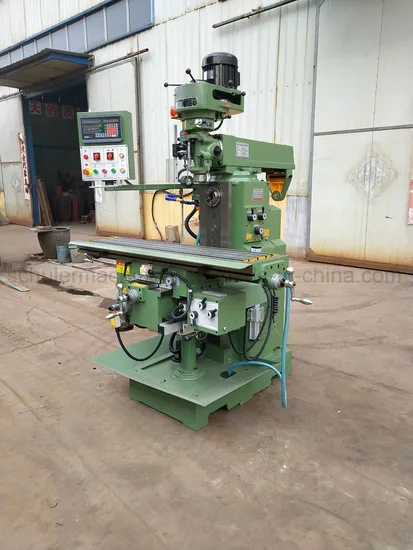

ZX6350A Universal Radial Turret Milling Machine Milling Drilling Machine
Performance:
The worktable can be moved vertically and horizontally, and the main shaft is vertically arranged. Usually, the table top and the head can be lifted up and down. It has various cutting functions such as drilling, milling, boring, grinding and tapping. The headstock can be rotated 90° left and right in a vertical plane. Some models can be rotated 45° left and right in the horizontal plane. Most models can be automatically moved longitudinally.
Standard Accessories:
1.milling chuck sets
2.Reducing sleeve 7:24ISO50/MS4 and 40/MS4 3.Hexagonal Spaner 5 and 10
4.Stay wrench S21-24 and S27-30
5.Horizontal milling cutter arbor 7:24 ISO50 27 6.Horizontal milling cutter arbor 40
7.Draw bar M24 (on the machine)and M16
8.work lamp
9. cooling systerm 10.universal milling head XC63T4A
Optional Accessories:
1.X/Y power feed
2.Z axis lifting motor
3.three axis sino dro
4.QH200 flat vice
Technical Parameters and Details
Brand Image:
As a professional manufacturer of milling machines, we want our customers to know of our commitment to providing the latest products to all customers.

Specifications	Units	ZX6350C
Table size	mm	1120x280
T Slot number/width/pitch	mm	5/14/50
Longitudinal travel	mm	630
Cross travel	mm	280
Vertical travel	mm	430
Vertical milling capacity	mm	32
Face milling capacity	mm	100
Drilling capacity	mm	50
Longitudinal feeds range	Mm/min	24-720
Cross feeds range	Mm/min	-
Vertical milling spindle travel	mm	120
Spindle nose to table surface	mm	140-570
Travel of movable arm	mm	360
Vertical milling spindle taper		MT4
Horizontal milling spindle taper		MT4
Vertical milling spindle speeds	R/min	115-1750 ,8 steps
Horizontal milling spindle speeds	R/min	32-1320 ,12 steps
Vertical milling motor	kw	1.5/0.85
Main motor	kw	2.0/2.4
Overall dimensions	mm	1400x1300x2100
Net weight	Kg	1300

Agents Wanted:
We have strong partnerships in Europe, America, South America, India, Southeast Asia and South Africa. We also supply OEM service, and we are looking for agents in these areas. In the further, we want to develop SCHULER to a global brand. Wherever you are from, we are looking forward to explore new market with you.
Delivery:
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
Payment:
We prefer to do 100% T/T (30% T/T in advance, 70% T/T before shipment)
