30HP 60HP Thin Veneer Saw Stone Granite Cutting Machine for Tiles Corners
| US$15,200.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
30HP 60HP Stone Cutting Machine
Type
CNC Cutting Machine
Usage
Ceramics, Granite, Marble
Application
Machinery & Hardware, Stone Industry
Source Voltage
380V
Automation
Automatic
Cutting Ability
Low Speed
Control
Control Panel
Certification
CE
Blade Diameter
750mm-1200mm
Blade Number
Single or Dual
Electric
3phase, 380V, Customized
Stone Type
Granite, Marble, Basalt, Limestone etc
OEM
Available
Finished Stone
Veneer Stone, Corner Stone
Transport Package
Nude Packing
Specification
3300mm*2180mm*2180mm
Trademark
BESTLINK
Origin
China
HS Code
84791090
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
285.00cm * 190.00cm * 180.00cm
Package Gross Weight
2300.000kg
Product Description

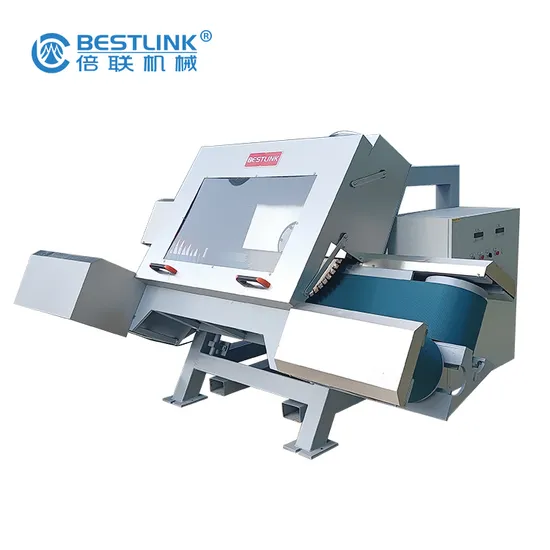

30HP 60HP Thin Veneer Saw Stone Granite Cutting Machine for TilesThe mighty stone saw is compact, portable, and lighter - making the task of hauling much easier. This model comes with a smaller and faster 30 in. blade for quicker cutting of your everyday stones.
Effectively changing the stone cutting industry,
This mighty stone saw has been designed to be safe, sturdy and simply low maintenance.
Every aspect-from components to assembly-was designed to fit all the below criteria and do it at a reasonable price.
| Technical parameter sheet for the mighty stone saw | |||||
| model | VS-30 | VS-30D | VS-60 | VS-60D | |
| Dimensions (L*W*H)(mm) | 2850*1900*1800 | 3050*3000*1800 | 3300*2180*2180 | 3550*3500*2200 | |
| Machine Weight(kg) | 2300 | 4500 | 3200 | 6000 | |
| Main Motor Power(kw) | 22kw(30HP) | 22kw(30HP)*2 | 45kw(60HP) | 45kw(60HP)*2 | |
| Electricity | 3 phases,380V,50Hz(customizable) | ||||
| Amperage | 86/43A | (86/43A)*2 | 172/86A | (172/86A)*2 | |
| Water Consumption(m³/h) | 3.5 | 4 | 4 | 4 | |
| Blade Size(mm) | 800 | 1000&1200 | |||
| Blade Speed Standard(adjustable) | Max.900rpm. | Max.780rpm. | |||
| Max.stone heigh(mm) | 0-350 | 0-450 | |||
| Saw blade adjustable distance(up/down)(mm) | 0-120 | 0-250 | |||
| Saw blade adjustable distance(back/forth)(mm) | 0-200 | 0-250 | |||
| Max.stone thickness(mm) | 20-220 | 20-270 | |||
| Conveyor Belt Length*width*thickness(mm) | 5970*280*7 | 6800*400*7 | |||
| Conveyor Belt Speed(Adjustable)(mm/min ) | 600-2450 | 600-2450 | |||
| Max.Cutting Depth(mm) | 280 | 350-450 | |||
Pictures for the Thin Veneer Saw Machine Detailes:
Veneer stone saw is loading and shipping to Norway
