Hastelloy C (FM40)

Product Description

Character
A Nickel-Chromium-Molybdenum alloy with better overall corrosion resistance and versatility than any other NiCrMo available. It has excellent resistance to localised corrosion and to a variety of mixed industrial chemicals.
Application field
Hastelloy C22 is widely used in the chemical field and petrefaction field, such as the element of chloride organic and catalyze system. This material especially suit for high temperature environments, impure inorganic acid and organic acid(such as formic acid and acetic acid), sea-water corrosion enviroments
Specification/Size
Strip(thickness*width ): 0.05mm~3.0mm*≤ 420mm
Bar: Round: Φ 5.5mm~250mm, square: 40mm~240mm*40mm~240mm
Wire: Φ 0.1mm~18mm
Plate(thickness*width*length): 3.0mm~60.0mm*1000mm*2000mm

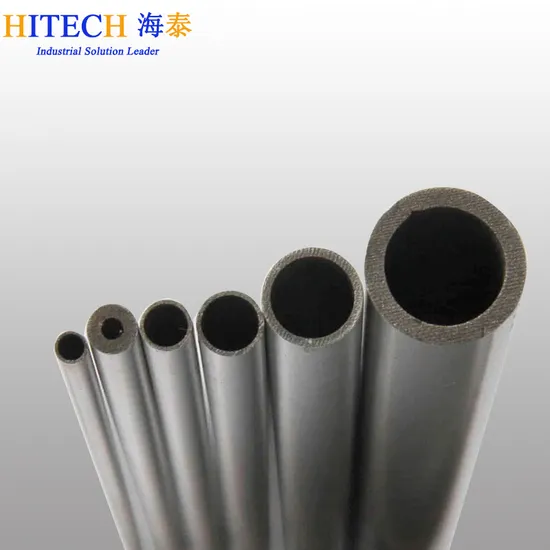

Seamless tube: 6mm~219mm(OD)*0.5mm~18mm(WT)
Welded tube: 1mm~120mm(OD)*0.1mm~10mm(WT)
Hastelloy c is also one of our best sellers. Our India, Canada, Argentina purchase more round bar and plate from us every year. The quantity can be up to 5tons.

Chemical Analysis of Alloy C22

C

MN

P

S

Si

Cr

Ni

Mo

Co

Fe

W

V

0.015 max

0.50 max

0.02 max

0.02 max

0.08 max

20.0 -22.5

rem

12.5 - 14.5

2.5 max

2.0 - 6.0

2.5 - 3.5

0.35 max

Specifications

Sheet/Plate

Round Bar

Pipe

Tube

Fittings

Forgings

ASME SB-575

ASME SB-574

ASME SB-622 ASME SB-619 ASME SB-775

ASME SB-622 ASME SB-516 ASME SB-626

ASME SB-366

ASME SB-564
