Multi-Function Automatic Filling Cheese Grain Hummus Cup Price Fill Seal Machine
| US$28,500.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ACFS-8
Type
Piston Filling Machine
Automatic Grade
Fully Automatic
Material Type
Liquid
Filling Valve Head
Multi-Head
Feed Cylinder Structure
Multi-Room Feeding
Dosing Device
Plunger
Filling Principle
Pressure
Packaging Container Lifting Structure
Pneumatic Lifting
Structure
Linear
Packaging
Cup/Trays
Packaging Material
Plastic/Aluminum Foil/Paper
Applicable Materials
Plastic Cups, Paper Cup
Sealing Way
Roll Film, Aluminium Foil Film
Power
5.5kw
Voltage
3p 380V/50Hz
Capacity
6500cups/Hour
Transport Package
Wooden
Specification
ACFS-8
Trademark
JACPACK
Origin
China
HS Code
84223030
Production Capacity
6500cups/Hour
Packaging & Delivery
Package Size
4600.00cm * 1100.00cm * 1850.00cm
Package Gross Weight
2100.000kg
Product Description

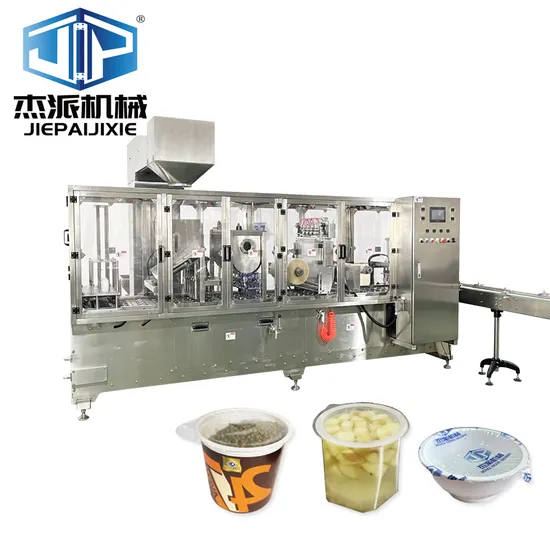

Product DescriptionThe automatic linear cup filling sealing machine is suitable for continuous filling sealing and packaging of cups, jars and other containers, such as yogurt,sauce,coffee,hummus,juice, etc.
Applicable materials: plastic cups, paper cup;
Sealing way: roll film, Aluminium foil film
Others:material elevator optional
Our Advantages
Packing Sample
Product Parameters
| Model | ACFS-8 |
| Voltage | 3P 380v/50hz |
| Power | 5.5kW |
| Sealing temperature | 0-300ºC |
| Cup size | Diam ≤ 95mm H ≤120mm |
| Filling volume | 50-250ml or customized |
| Filling error | ±1% |
| Sealing Material | PET/PE, PP, Aluminum foil, Paper/PET/PE |
| Capacity | 6500cups/hour |
| Intake pressure | 0.6-0.8Mpa |
| Weight | 2100kg |
| Size | 4600×1100×1850mm |
FAQ
Q1: How long does it take to deliver the machine after the order & deposit?
A1: Usually it will take 40-60 working days to manufacture the machine and make it ready to deliver. We will begin to design the machine according to the container samples provided by customers, and then prepare for acceptance and delivery after processing, assembly and debugging.
Q2: What do you need to make a specific offer for my product?
A2: To make a special offer we will need the dimension(s) of the package(s) you want to use on this machine. We also need the approximate production volume you need per day. If with other special request please also inform us before we make the project.
Q3: Can you offer overseas service?
A3: Yes, if request. But we suggest online problem solving at first. If the problem still shows we can arrange an engineer to go to your factory personally to solve the issue.
