1.3m Width 3-Point Disc Harrow Plow for Four Wheel Tractor in Europe Standard

Product Description

Product Description

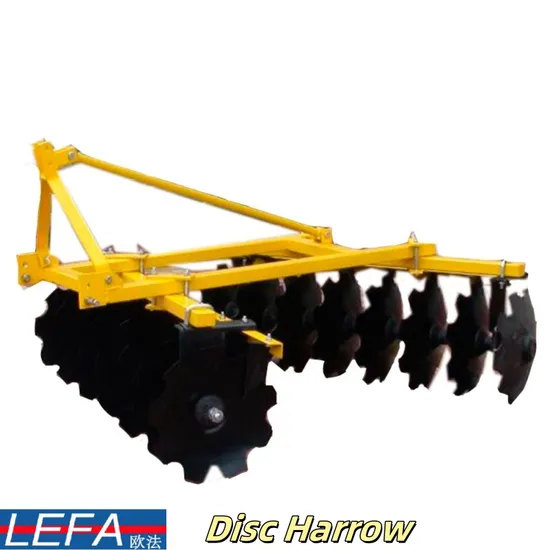

3 point heavy duty disc harrow for tractor
This heavy duty disc harrow was designed according to the Europe standard;
It adopts the features on hydraulic offset structure, built-bearing composite design, bearing seal, durable, easy to transport,adjustable, easy maintenance.
This heavy duty harrow also can be used to clean the stubble before tillage, break the hardened and impervious soil surface, crush and spread straw into the field, shatter soil after tillage, and level the land and preserve soil moisture. It can be used as tillage machine instead of plow on the cultivated land.
Our Advantages
1.It is a trailed hydraulic offset disc harrow for 12-60HP four wheels tractor
2. This hydraulic trailed heavy disk harrow is designed in the standard of Europe.
3.With high strength, good seal, the advantages of long life products.
4. More strong harrow frame and to be in long working life.
5.Unique design of bearing assembly can keep good seal.
6.The disc blades are for 65Mn steel. Product Parameters

	LF-BQX-1.1	LF-BQX-1.3	LF-BQX-1.5	LF-BQX-1.7	LF-BQX-1.9	LF-BQX-2.3
Working width(m)	1.1M	1.3M	1.5M	1.7M	1.9M	2.3M
Working depth(mm)	80-120MM
No.of disc(pcs)	12	14	16	18	20	24
Disc Dia.(mm)	460MM/ 18''
Weight(kg)	200	220	240	260	310	360
Tractor power(hp)	12-20	15-25	25-35	30-35	35-45	50-60
Linkage	3 Point linkage, CATEGORY I

Detailed Photos

LF-BQX Series Light Duty Offset Disc Harrow is designed specially for small land with steep slopes that is difficult to harrow.
The disc harrow is used for breaking up the ground, shattering soil lumps and mixing crop residues into soil as green manures.
This harrow is mounted to tractor by 3 point linkage, the whole straucture is enough strong to perform excellently in steep land
with high speed.
Product details:
• 1. 28×28 square harrow shaft used, 200mm spacing between discs
• 2. High Carbon disc blade hardness: 38-44 HRC, assuring the toughness and wear ability of disc blade.
• 3. Compact harrow structure, convenient for assembly and adjustment
• 4. High harrowing speed and efficiency when three point mounted with tractor rear
• 5. Especially performing well in rugged land with more steep slopes
• 6. Disc harrow adopting using bearing combinations with a grease filling hole on it, keeping sand or soil from going into
bearing to cause break down and maintaining conveniently
