Australia Standard Car Spraying Paint Booth (Model CP-800) for Sale
Basic Info.
Model NO.
CP-800
Type
Spray Booth
Certification
CCC, CE, ISO9001
Substrate
Steel
Brand
Compass
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Total Power
18kw
Transport Package
Steel Frame
Specification
6.9 x 3.9 x 2.65(m)
Trademark
COMPASS
Origin
China
HS Code
8419399090
Production Capacity
200 Sets / Month
Product Description

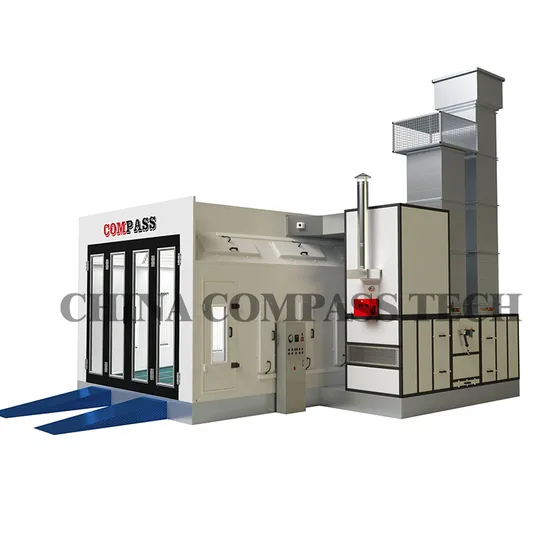

CP-800 car spray booth Product details:Technical data for CP-800 spray booth
| Outside Dimension (mm) | 7000×5350×3400 | Inside Dimension(mm) | 6900×3900×2650 |
| Front Door(mm) | 3000×2600(W*H) | Service door(mm) | 800×2000(W*H) |
| Total Power | 18kw | ||
| Cabin system | Front door | 3 folded sheet metal formed door | |
| Wall panel | 50mm EPS sandwich panel, steel sheet thickness: 0.476mm | ||
| Ceiling panel | Galvanized steel sheet | ||
| Basement | 300mm depth construction galvanized basement, full galvanzed grids | ||
| Ramps | Two pieces 2000*750mm ramps | ||
| Door glass | 5mm tempered glass | ||
| Air make-up system | Air inlet fan system | 1 set 7.5kw turbo fan, fan model:DDF-630B, with one manual damper | |
| Exhausted fan system | 1 set 7.5kw turbo fan, fan model: DDF-630B, with one manual damper | ||
| Air inlet capacity | 25000m3/h | ||
| Exhuasted capacity | 25000m3/h | ||
| Exhausted ducting | six meters straight galvanized ducting and two 135 degrees elbows | ||
| Purification system | Pre-filter | G3 grade | |
| Ceiling filter | 600G filter EU5 / F5 | ||
| Floor filter | Fiberglass filter | ||
| Exhausted filter | Filber glass and carbon filter | ||
| Heating system | Heat Exchanger | SUS 304 200KW stainless heating exchanger | |
| Heating burner | Riello G20 diesel oil burner(gas burner is for option) | ||
| Heating productivity | 200000Kcal/hour | ||
| Spray to baking switch | Pneumatic damper | ||
| Chimney ducting | 4 meters chimney ducting and one chimney elbow | ||
| heating temperature | Maximum 80ºC | ||
| fuel consumption | 6-8L/vehicle | ||
| Lighting system | Ceiling lighting | 8 Units, each 4 * 24W LED lamps. | |
| Side lighting | 8 Units, each 4 * 24W LED lamps. | ||
| Illumination | 1200LUX | ||
| Control system | Switch controlling system | Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge | |
