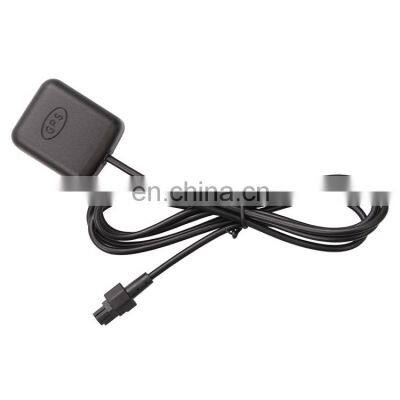

Molex 1.5m Cable Car Auto Vehicle Rearview Mirror Digital Video Recording GPS Navigator GPS Receiver Module

Product Description

Product Description
DescriptionMain chipUBX-G7020-KTTrack sensitivity-165dBmTime to First FixExtremely fast at low signal levelBuilt in high LNAYESPower consumptionMax 25mA 3.3VProtocolNMEA-0183 compliant protocol or custom protocolOperating temperature-40 to 85℃Operating voltage3.0V to 5.0VModule typeUART/TTLSize45x38x13mmCertificationRoHS compliant(Lead-free)1.1 General DescriptionThe HR-45R-20MXB module series is a family of stand alone GPS receivers featuring the high performance UBX 7 positioningengine. These flexible and cost effective receivers offer numerous connectivity options in aminiature 45x38x13mm package.Their compact architecture and power and memory options make HR-45R-20MXB modules ideal for battery operated mobile devices with very strict cost and space constraints.The 56-channel UBX M8 positioning engine boasts a Time-To-First-Fix (TTFF) of under 1 second. The dedicated acquisition engine,with over 1 million correlatorsis capable of massive parallel time/ frequency space searches,enabling it to find satellites instantly. Innovative design and technology suppresses jamming sources and mitigates multipath effects, giving HR-45R-20MXB GPS receivers excellentnavigation performance even in the most challenging environments.1.2 Applications-UVA(unmanned aerial vehicle)-DVR(Digital Video Recording)-Rearview Mirror DVR-Car Tracker1.3 Power SupplyRegulated power for the HR-45R-20DUB is required. The VCC Pin Need a stable DC voltage supply. Power supply ripple must be less than 30mV. The input voltage Vcc should be 3.0V~5.0V, Recommended power supply voltage is 3.3V . maximum current is 25mA. Suitable decoupling must be provided by external decoupling circuitry.1.4 UART PortsThe module supports two full duplex serial channels UART. All serial connections are at 3V CMOS logic levels, if need different voltage levels, use appropriate level shifters. The baud rate of both serial ports are fully programmable, the data format is however fixed: X, N, 8, 1, i.e. X baud rate, no parity, eight data bits and one stop bit, no other data formats are supported, LSB is sent first. The modules default baud rate is set up 9600bps, however, the user can change the default baud rate to any value from 4800 bps to 115kbps. UART port can be used for firmware upgrade, NMEA output and UBX proprietary commands input.2.1 ApplicationThe Gmouse is equipped with a USB connects to your application platform. The HR-45R-20DUB Gmouse It consists of a UBX-G7020-KT single chip GPS IC which includes the RF part and Baseband part, a patch antenna, a LNA, a SAW filter, a TCXO, a crystal oscillator, Also comes with a 0.22F crystal capacitor ,can backup satellite ephemeris about 2 hour.2.2 Configuration instruction ExplainThe module supports the commonly used commands in configuration, The following table describes some of the parameters of the UART port configuration command,baud rate setting: NMEA data refresh rate is set, the NMEA statement output set, positioning mode setting etc.The Module power up initialization requires 300ms,Please send the sixteen system from CPU via serial port.This is one of our standard GPS Receiver. Please kindly send us inquiry directly for your customized requirements. Thank you.Pin AssignmentNo.Pin nameI/ODescription1RS232_RXDIRS232 UART Serial Data input2VCCIModule Power Supply3 RS232_TXDORS232 Serial Data output4GNDGGroundConnectorThese Connectors Are Available!12.5 DC 4Pin 180° Male6USB22.5 DC 4Pin 90°Male7USB TYPE C33.5 DC 3Pin 180°Male84-pin BM head43.5 DC 3Pin 90°Male9NO Connector5Molex10CustomizationWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All CategoriesWireless ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Cable / ConnectorSIM Card HolderSensorIC
