1~4ton Electric Hydraulic Scissor Lifting Table with CE

Product Description

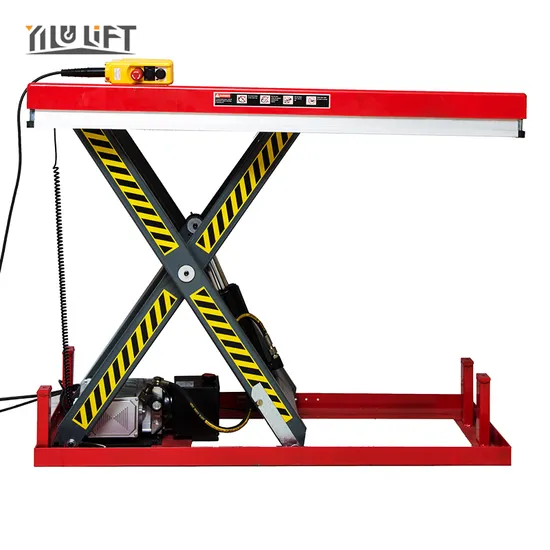

Stationary Electric Hydraulic Scissor Lift Table
Electric scissor lift table is our star and popular model material handling equipment, it is equipped with hydraulic lifting system and electric control system, simple and stable working, easy installaion and low failure rate. The standard load capacity is from 1000kg to 4000kg, and max. platform height from 1m to 1.4m, some stock is also available if urgently needed.
This scissor lift table equipped with safety valve: explosion-proof valve, spillover valve, and emergency decline valve etc. to protect the safety both for goods and user. It is widely used in the factory, warehouse, workshops, construction site etc. for the material or cargo handling and lifting.
Except the below standard models, we also can custom it per clients' requirements. Please tell us the model you need, or tell us your required loading capacity, platform height and platform size, we will send you a quote with best price and details information as soon as possible.
Specs Table

Series	Model	Load (KG)	Self Height	Max Platform Height(MM)	Platform Size(MM)	Lifting time	Net weight
			(MM)			(S)	(KG)
Single Scissor	HW1001	1000	205	990	1300×820	20~25	160
	HW1002	1000		990	1600×1000	20~25	186
	HW1003	1000	240	1300	1700×850	30~35	200
	HW1004	1000		1300	1700×1000	30~35	210
	HW1005	1000		1300	2000×850	30~35	212
	HW1006	1000		1300	2000×1000	30~35	223
	HW1007	1000		1300	1700×1500	30~35	365
	HW1008	1000		1300	2000×1700	30~35	430
	HW2001	2000	230	1000	1300×850	20~25	235
	HW2002	2000		1000	1600×1000	20~25	268
	HW2003	2000	250	1300	1700×850	25~35	289
	HW2004	2000		1300	1700×1000	25~35	300
	HW2005	2000		1300	2000×850	25~35
	HW2006	2000		1300	2000×1000	25~35	315
	HW2007	2000		1400	1700×1500	25~35	415
	HW2008	2000		1400	2000×1800	25~35	500
	HW4001	4000	240	1050	1700×1200	30~40	375
	HW4002	4000		1050	2000×1200	30~40	405
	HW4003	4000	300	1400	2000×1000	35~40	470
	HW4004	4000		1400	2000×1200	35~40	490
	HW4005	4000		1400	2200×1000	35~40	480
	HW4006	4000		1400	2200×1200	35~40	505
	HW4007	4000	350	1300	1700×1500	35~40	570
	HW4008	4000		1300	2200×1800	35~40	655
Double Scissors	HD1000	1000	305	1780	1300X820	35-45	210
	HD2000	2000	360	1780	1300X850	35-45	295
	HD4000	4000	400	2050	1700X1200	55-65	520
Three Scissors	HT1000	1000	470	3000	1700x1000	35-45	450
	HT2000	2000	560	3000	1700x1000	50-60	750
Four Scissors	HF400	400	600	4140	1700x1000	30-40	800
	HF800	800	706	4210	1700x1000	70-80	858
	HF2000	2000	850	4200	2500x1500	80-90	980

Advantages 1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lifts and fall very stable.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Equipped with aluminum safety sensor under the platform for anti-pinch while dropping.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissor to prevent damages during operation.
10. Brief structure make it much easier to operate and maintain.
11. Stop at the per-concerted and accurate location point.

Safety Precautions 1.Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2.Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3.Emergency decline valve: it can go down when you meet an emergency or the power off.
4.Overload protection locking device: in case of dangerous overload.
5.Anti-dropping device: Prevent falling of platform.
6.Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.
Details
Commitment is a big word, and not to be taken lightly. With YILU LIFT our first commitment is to offer high quality products. The second promise is innovation. We are constantly developing new models as part of the vacuum lifter family to better serve our customers unique needs. If you have a lifting need, we have a solution.
FAQ

1: How to place an order?

Answer: Please tell us your detailed requirements (including your product materials, product dimensions and product weight), and we will send you detailed parameters and quotations as soon as possible.

2: What is your price?

Answer: It depends on your requirements of the equipment and shipment terms (FOB, CIF, DDP)

3: How should I pay?

Answer: We accept wire transfer; letter of credit; Paypal; Wetern Union.

4: What is the delivery time?

Answer: For the standard product, the delivery time is 7 days.For customized orders with no stock, we need to determine the delivery time according to the situation, if you need urgent items, please contact us.

5: About the warranty

Answer: 1-year warranty. Lifelong technical support via email or video.

6: About the guarantee

Answer: MIC will protect the order. We have trade assurance.

7: Mode of transportation

Answer: You can choose sea, air, rail transportation.
