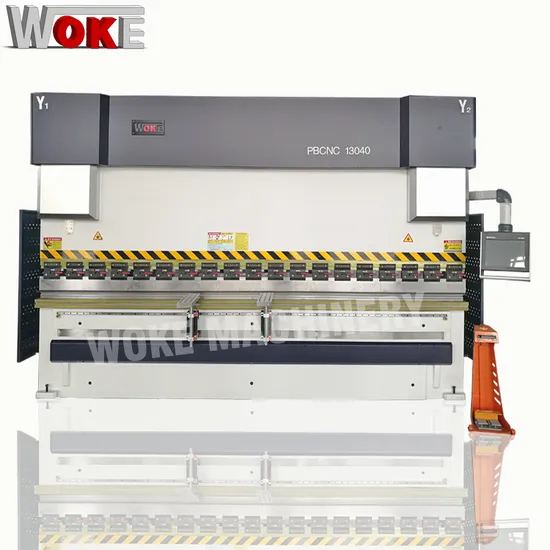

Press Brake Machine 100ton, We67K 125t 2500 CNC Hydraulic Press Brake
| US$6,000.00-20,000.00 | 1 Piece (MOQ) |
Basic Info.
Condition
New
Certification
ISO 9001:2008, CE
Automation
Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Bending Force
40t, 60t, 80t, 125t, 160t
Control System
Estun E21, E200, Delem CNC
Control Axis
2(Y, X)
Power Supply
Customized as You Request
Hydraulic System
Rexroth
Bending Thickness
2, 3, 4, 6mm or Large
Bending Length
2.5, 3.2, 4, 5, 6m
Transport Package
Nude Packing, Steel Pallet
Specification
12CBM
Trademark
WOKE
Origin
Nantong, Jiangsu, China
HS Code
8462299000
Production Capacity
40PCS/Month
Product Description
| WOKE manufacturing and selling good quality shearing machine, press brake, bending machine, cutting machine. Main market is Asia, Middle East, European, American. OEM, customers' design, color, size and logo are all accepted. With 15 years professional manufacturer and overseas experience. Fast delivery, good quality and competitive price. WOKE manufacturing and selling good quality shearing machine, press brake, bending machine, cutting machine. |
| Product range: Shearing machine, press brake, rolling machine, punch press, CNC cutting machine. |
| Address: Libao Industrial Zone, Hai'an County, Nantong City, Jiangsu China. |
You can see more videos and our machines on following link
MAIN FEATURES & ADVANTAGES
| » The frame is steel-welded construction, vibration to eliminate stress, with high strength and good rigidity. » Synchronized positive stop design, and by Estun CNC programmable controller assuring accurate repeatability & ease of use. » Integrated hydraulic system allowing rapid approach switching automatically to slow bend. » Inch, single mode being designed for the machine and reversing and maintain time can be controlled by the time relays. » Safe fence and the electric inter locker have bee designed for the machine to ensure the operation safety. » The RAM is adopted hydraulic top-drive with two cylinders, working smoothly and stably. » Mechanical stop nuts ensure stable and reliable positioning accuracy. » The segmented punches of different length are adopted which can be combined into a certain Length according to the processing demand to meet the different requirement of special workpieces. » Back gauge is driven by linear guide way and ball screw, quick, convenient and accurate. » The machine can be adopted with normal clamp devices or quick clamp as an option according to the customer's requirement to decrease the labors' work intension and increase the work efficiency. |
SPECIFICATIONS
| Model | Nominal pressure | Worktable length | Distance between columns | Throat depth | Opening | Motor | Dimension(LXWXH) |
| Ton | mm | mm | mm | mm | Kw | mm | |
| 40T/1500 | 40 | 1500 | 1180 | 250 | 325 | 4 | 1850×1300×2100 |
| 40T/2000 | 40 | 2000 | 1550 | 250 | 325 | 4 | 2250×1300×2100 |
| 40T/2500 | 40 | 2500 | 2050 | 250 | 325 | 4 | 2750×1300×2100 |
| 63T/2500 | 63 | 2500 | 2050 | 250 | 360 | 5.5 | 2750×1350×2230 |
| 63T/3200 | 63 | 3200 | 2600 | 250 | 360 | 5.5 | 3450×1350×2230 |
| 80T/2500 | 80 | 2500 | 2050 | 320 | 380 | 7.5 | 2750×1400×2350 |
| 80T/3200 | 80 | 3200 | 2600 | 320 | 380 | 7.5 | 3450×1400×2350 |
| 100T/2500 | 100 | 2500 | 2050 | 320 | 380 | 7.5 | 2750×1450×2380 |
| 100T/3200 | 100 | 3200 | 2600 | 320 | 380 | 7.5 | 3450×1450×2380 |
| 100T/4000 | 100 | 4000 | 3200 | 320 | 380 | 7.5 | 4250×1450×2380 |
| 125T/2500 | 125 | 2500 | 2050 | 320 | 380 | 7.5 | 2750×1450×2380 |
| 125T/3200 | 125 | 3200 | 2600 | 320 | 380 | 7.5 | 3450×1450×2380 |
| 125T/4000 | 125 | 4000 | 3200 | 320 | 380 | 7.5 | 4250×1450×2380 |
| 160T/2500 | 160 | 2500 | 2050 | 320 | 380 | 11 | 2750×1700×2600 |
| 160T/3200 | 160 | 3200 | 2600 | 320 | 450 | 11 | 3450×1700×2600 |
| 160T/4000 | 160 | 4000 | 3200 | 320 | 450 | 11 | 4250×1700×2600 |
| 200T/3200 | 200 | 3200 | 2600 | 320 | 470 | 15 | 3450×1850×2860 |
| 200T/4000 | 200 | 4000 | 3200 | 320 | 470 | 15 | 4250×1870×2950 |
| 250T/3200 | 250 | 3200 | 2600 | 400 | 530 | 18.5 | 3450×1920×3050 |
| 250T/4000 | 250 | 4000 | 3200 | 400 | 530 | 18.5 | 4250×1950×3150 |
| 300T/3200 | 300 | 3200 | 2600 | 400 | 560 | 22 | 3450×2200×3130 |
| 300T/4000 | 300 | 4000 | 3200 | 400 | 560 | 22 | 4250×2250×3320 |
| 300T/6000 | 300 | 6000 | 4700 | 400 | 560 | 22 | 6100×2250×4250 |
| 400T/3200 | 400 | 3200 | 2600 | 400 | 640 | 30 | 3200×2280×3250 |
| 400T/4000 | 400 | 4000 | 3200 | 400 | 640 | 30 | 4000×2300×3600 |
| 400T/6000 | 400 | 6000 | 4700 | 400 | 640 | 30 | 6000×2350×4650 |
| 500T/6000 | 500 | 6000 | 4700 | 400 | 640 | 37 | 6000×2450×4700 |
| 600T/6000 | 600 | 6000 | 4700 | 460 | 650 | 45 | 6000×2700×5710 |
Can achieve any angle by the customized tools
MACHINE DETAILED IMAGES
KINDS OF CONTROL SYSTEM
| E21 NC control system, 2 Axis(Y,X) |
| Features: -Backgauge and block control -Control for general AC motor, frequency inverter -Intelligent positioning -Stock counter -Holding / decompression time setting -Program memory of up to 40 programs up to 25 steps per program -One side positioning -Retract function -One key backup/restore of parameters and programs -mm/Inch -Chinese/English |
| E300 CNC control system, 3 Axis(Y,X,R), Servo drive |
| Features: -Support X,Y, R servo control, hydraulic or mechanical crowning option -Built-in control logic, hydraulic valve and I/O port logic configuration freedom. -Accuracy angle program, built in tool library and material. -EDS/ProNet servo. -Microswitch keyboard plate -Collision detection,R axis collision avoidance function. -USB interface. One key backup/restore of parameters and programs. -One page program. -Advanced CAD bus servo technology. -Color LCD screen |
| DELEM DA52s CNC control system, 3 Axis(Y1, Y2, X) |
| Features: -Quick, one page programming -Hotkey navigation -7'' widescreen colour TFT -Up to 4 axes(Y1, Y2, and 2 auxiliary axes) -Crowning control -Tool/material/product library -USB, peripheral interfacing -Advanced Y-axis control algorithms for closed loop as well as open loop valves -Panel based controller with optional housing. |
HYDRAULIC GUILLOTINE SHEAR
POWER PRESS
