Well Designed Full Automatic Waste Shredder for Old Garbage Recycling Plant

Product Description

Detailed Photos

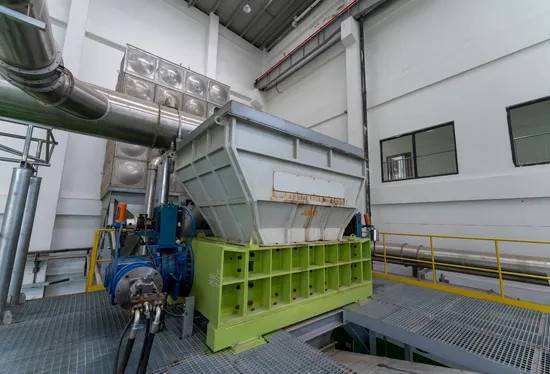

ARIES primary shredder is a robust and reliable shredder mainly applied in processing MSW,bulky waste and industry waste.It typically goes first in the waste mechanical treatment.
Working Principle
Driven by the hydraulic motor,two main shafts with special-shaped knives rotate in the shredding chamber.By the action of tearing,shearing,and squeezing caused by knives and counter-plate,material is shredded into smaller pieces,which makes the later treatment or transportation easier and more efficient.
FeaturesThe main shaft adopts average point compression lock structure, which saves labor and is convenient for disassembly.It is optional to choose pressing device to realize better feeding and crushing of materials such as barrel.According to different materials and requirements, the driving mode can be motor + reducer or hydraulic drive motor + reducer.Specially designed bearing sealing system prevents foreign matter from entering the bearing.The main components of the hydraulic system are from the first-class international brand, bringing the smaller impact and stable performance to the machine.

Product Parameters

	Aries1200	Aries1600	Aries2000
Shredding chamber (L×W)	1.2×1m	1.6×1.2m	2×1.3m
weight (machine body)	12t	19t	25t
power	2×55/75KW	2×(75-132)KW	2×(90-160)KW
Number of shaft	2pcs	2pcs	2pcs
Knife thickness	20-50mm	30-80mm	50-100mm
Speed of main shaft	10-50r/min	10-50r/min	10-50r/min
Output size	50-300mm	50-300mm	50-300mm

Company Profile
JONO was founded in 2006 and is located in Wujiang District, Suzhou. The company has a floor area of 25,000 square meters, more than 80 design researchers, more than 200 employees and more than 150 patents. It is a new landmark of Wujiang enterprise, also a national high-tech enterprise, has been rated as a waste sorting leader for four consecutive years by the industry association.
First stage plant covers and area of 27000 square meters, whose floor area is 34000 square meters and the overall investment is 100 million RMB. on March 18, 2015, the construction work was started. it is equipped with technology institute, science and technology demonstration hall, pilot test and industrial centeer, large-scale material test center, high- standard manufacturing factory.
Jono has a complete and professional group of teams of research and development design, project management, equipment manufacturing, electrical automation and solid waste recycling waste recycling operation. Each team can be either independent to provide customers with services such aselectrical automation, equipment manufacturing, technology development and other professional services, or jointly provide customers in MSW sorting or recycling industry with complete solutions and whole plant EPC project general contracting services.
Factory and Workshop Pictures
Sucessful Projects
By 2018, JONO has undertaken more than 80+ EPC Projects, which are distributed in more than 40 cities . Our equipment is capable of handling more than 50,000 tons of waste every day.Through persistence and accumulation, we have the proprietary knowledge of total solutions in eight segments, including Municipal Solid Waste (MSW), organic waste, decoration waste, construction waste, recyclables, bulky waste, industrial waste and landfill waste.
This project with the treatment capacity of 600t/d is set for a fine sorting of MSW before they were sent to the CFB (circulating fluidized bed) for incineration.it is the first pilot plant at Singapore to treat the non-source sorted waste, it includes pre-treatment, bio-drying and post-treatment, within the pre-treatment, HDPE, LDPE,PP and MIX PET will be sorted out, the remains will be sent to bio-drying box, after 8-9days, the water content will be reduced from 45% to 25%. After the post treatment,ferrous, non-ferrous and inert could be separated. Eventually the calorific value of RDF will be increased from 1000kcal/kg to 3800kcal/kg, which could reach the EU standard Class III. This MBT plant is focusing on recycling and RDF production, a good reference case for the idea of " waste to value".
Jono has independently developed the MSW mechanical biological treatment technology, and aunched the automatic disposal scheme of waste classification and treatment smart factory. After the intelligent separation of mixed MSW, the disposal path for products includes: Aerobic/Anaerobic fermentation to produce high-quality biological fertilizer; plastic granulation; production of high calorific value refused derived fuel RDF.
Jono Projects All Over the World
6 Key Technology

Artificial Intelligence Sorting	Biological Treatment
Mechanical Shredding	Conveying&Storage
Mechanical Sorting	Mobile Solutioins

7 Solutions

Municipal Solid Waste	Landwill Waste
Organic Waste	Construction Waste
Recyclables	Bulky Waste
Industrial Waste	Decoration Waste

Certifications
Partners and Clinets

Lindner, Austria. Lindner was frormed in 1948. As a specialist in shredding technology in Europe, it is also one of the famous waste shredder manufacturers.

BRT-Harter, Germany. It is the leading company in the field of Mechanical sorting. The sales of Bag-opener takes 60% of the European market share. The sales of ballistic screen is over 500 sets globally, the machines provided by BRT-Hartner are used in more than 1000 countries.

MVT, Italy Founded in 1968, it is a market leader in the bio-drying, compost and in the design, construction and installation of air suction and purification systems which remove dust, fumes, vapours and Volatile Organic Compounds. Now globally over 50 projects have been sucessfully completed.

FAQ
YOU MIGHT INSTERESTED IN FOLLOWING QUESTIONS
1. Are you manufacturer or trading company?
We are a professional recycling machines manufacturer for more than 15years we supplying full technical support and solutions, timely and professional service, always effort on quality, honest, win-win business for every client.
2. How do you assistant to install the machine on worksite?
We are experienced on more than 80 projects, engineer and technicians will assistant client on construction, installation, commissioning.
3. How can I get spare parts for replacement in other countries?
Wearing parts like blades, it is necessary to buy with machine, other parts in stock could be delivery out by express if urgent or by sea within 5days.
4. Can I use mark machine with different LOGO and color?
Yes, please confirm details with sales.
If you have any need ,pls feel free to contact us.
