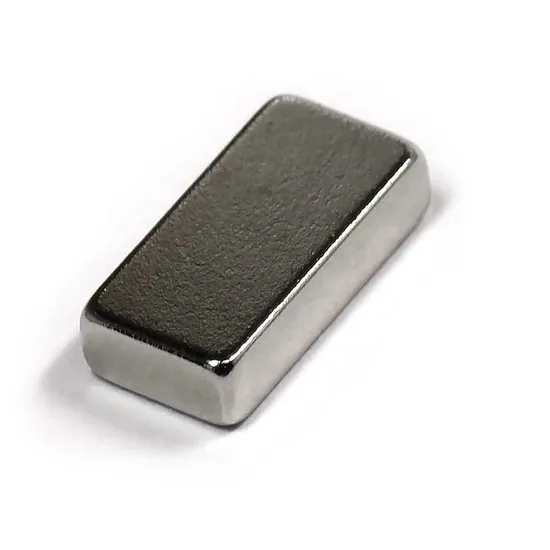

1/2"X1/4"X1/8" Nickel Plating Rectangle Neodymium Block Magnet

Product Description

Product Description

Product Name	Nickel Plating Rectangle Neodymium Magnet
Magnet Shape	Block Shape
Dimensions	Customized
Magnet Material	NdFeB
Grade	N33-N52 (M, H, SH, UH, EH, AH)
Tolerance	0.05mm ~ 0.1mm
Plating/Coating	Nickel/Epoxy Resin/Zinc, etc.
Magnetism Direction	Through thickness
Country Of Origin	China

Technical Data
Size Information As almost all the magnets are customized according to customers' requirement, below we list the maximum size and minimum size we can make for some typical shapes of magnets for your reference.

Magnets Shapes	Max. Size (mm)	Min. Size (mm)	Remarks
Block	240 x 100 x 50	2 x 2 x 1	Optional customized countersunk boreholes
Cylinder/Disc	D240 x 50	D2 x 1
Ring	OD240 x 50 (ID customized)	D5 x 1 x 1
Arc/Tile	Customized

Some block neodymium magnets sizes we made in the chart below for your reference.

5 x 1.5 x 1mm block neodymium magnet	18 x 15 x 10mm block neodymium magnet
5 x 2.5 x 1.5mm block neodymium magnet	18 x 18 x 4mm block neodymium magnet
5 x 2.5 x 2mm block neodymium magnet	19.05 x 12.7 x 6.35mm block neodymium magnet
5 x 4 x 1mm block neodymium magnet	20 x 4 x 2mm block neodymium magnet
5 x 4 x 1.5mm block neodymium magnet	20 x 4 x 3mm block neodymium magnet
5 x 5 x 1mm block neodymium magnet	20 x 5 x 2mm block neodymium magnet
5 x 5 x 1.2mm block neodymium magnet	20 x 5 x 5mm block neodymium magnet
5 x 5 x 2mm block neodymium magnet	20 x 10 x 2mm block neodymium magnet
5 x 5 x 3mm block neodymium magnet	20 x 10 x 5mm block neodymium magnet
6 x 4 x 2mm block neodymium magnet	20 x 20 x 3mm block neodymium magnet
6 x 5 x 2mm block neodymium magnet	20 x 20 x 5mm block neodymium magnet
7 x 6 x 1.2mm block neodymium magnet	20 x 20 x 10mm block neodymium magnet
8 x 4 x 3mm block neodymium magnet	22 x 8.5 x 1.4mm block neodymium magnet
8 x 5 x 5mm block neodymium magnet	25 x 6 x 2mm block neodymium magnet
8 x 8 x 4mm block neodymium magnet	25 x 8 x 1mm block neodymium magnet
10 x 3 x 2mm block neodymium magnet	25 x 15 x 6mm block neodymium magnet
10 x 4 x 1mm block neodymium magnet	25.4 x 25.4 x 12.7mm block neodymium magnet
10 x 4 x 1.2mm block neodymium magnet	30 x 7 x 2.5mm block neodymium magnet
10 x 4 x 1.5mm block neodymium magnet	30 x 10 x 5mm block neodymium magnet
10 x 4 x 2mm block neodymium magnet	30 x 10 x 10mm block neodymium magnet
10 x 5 x 1mm block neodymium magnet	30 x 12 x 12mm block neodymium magnet
10 x 5 x 1.2mm block neodymium magnet	30 x 15 x 6mm block neodymium magnet
10 x 5 x 1.5mm block neodymium magnet	30 x 30 x 15mm block neodymium magnet
10 x 5 x 2mm block neodymium magnet	40 x 10 x 5mm block neodymium magnet
10 x 5 x 3mm block neodymium magnet	40 x 10 x 10mm block neodymium magnet
10 x 6 x 6mm block neodymium magnet	40 x 15 x 5mm block neodymium magnet
10 x 10 x 1mm block neodymium magnet	40 x 18 x 5mm block neodymium magnet
10 x 10 x 1.2mm block neodymium magnet	40 x 20 x 5mm block neodymium magnet
10 x 10 x 2mm block neodymium magnet	40 x 20 x 10mm block neodymium magnet
10 x 10 x 3mm block neodymium magnet	40 x 40 x 20mm block neodymium magnet
10 x 10 x 4mm block neodymium magnet	46 x 30 x 10mm block neodymium magnet
10 x 10 x 5mm block neodymium magnet	50 x 15 x 15mm block neodymium magnet
12 x 7 x 2mm block neodymium magnet	50 x 25 x 10mm block neodymium magnet
12 x 8 x 2mm block neodymium magnet	50 x 50 x 12.5mm block neodymium magnet
15 x 4 x 4mm block neodymium magnet	50.8 x 50.8 x 25.4mm block neodymium magnet
15 x 15 x 3mm block neodymium magnet	60 x 30 x 15mm block neodymium magnet
15 x 15 x 8mm block neodymium magnet	70 x 70 x 30mm block neodymium magnet
18 x 8 x 4mm block neodymium magnet	110.6 x 89 x 19.5mm block neodymium magnet

Neodymium Magnets Production Process
Neodymium Magnets Performance Datasheet
Neodymium Magnets Magnetization Directions
Neodymium Magnets Surface Treatment

Surface Treatment	Process	Thickness	Color	SST	PCT
		(μm)		(Hours)	(Hours)
Nickel	Ni	10 ~ 20	Bright Silver	> 24 ~ 72	> 24 ~ 72
	Ni+Cu+Ni
Black Nickel	Ni+Cu+Ni	10 ~ 20	Bright Black	> 48 ~ 96	> 48
Cr3+Zinc	Zn	5 ~ 8	Bright Blue	> 16 ~ 48	---
	Cr3+Zn		Shining Color	> 36 ~ 72
Sn	Ni+Cu+Ni+Sn	10 ~ 25	Silver	> 36 ~ 72	> 48
Au	Ni+Cu+Ni+Au	10 ~ 15	Gold	> 12	> 48
Ag	Ni+Cu+Ni+Ag	10 ~ 15	Silver	> 12	> 48
Epoxy	Epoxy	10 ~ 20	Black/ Grey	> 96	---
	Ni+Cu+Epoxy	15 ~ 30		> 120	---
	Zn+Epoxy	15 ~ 25		> 120	---
Passivation	---	1 ~ 3	Dark Grey	Temporary Protection	---
Phosphate	---	1 ~ 3	Dark Grey	Temporary Protection	---

Remarks:
1. The SST results differ from coating. In general, Salt Spray Test result for the magnets with barrel plating (normally for small size of magnets), is better than the ones with rack plating (normally for big size of magnets).
2. Salt Spray Test (SST) condition: 5% NaCl, 35°C, continuously spray a certain time, test whether there is corrosion on plating/coating surface.
3. Pressure Cooking Test (PCT) condition: 2 atm, 95% RH (Relative Humidity), 121°C to test the plating/coating adhesion. (Zinc, Passivated/Phosphated, and Epoxy not suitable for PCT).
4. Other test methods for plating/coating: Drop Test, Cross Cut Test, Heating and Spilling Test, Constant Temperature, Humidity Test, etc. Physical Properties of Neodymium Magnets

Curie Temperature (°C)	310~380
Maximum Working Temperature (°C)	80~230
Electrical Resistivity (µ.cm)	110~170
Hardness (Hv)	560~580
Density (g/cm3)	7.4~7.8
Relative Recoil Permeability (µrec)	1.05
Saturation Field Strength (kOe/kA/m)	(30-40)/(2,400-3,200)
Temp. Coefficient of Br (T.C.α (Br)) (%/°C)	-0.12 ~ -0.10
Temp. Coefficient of Hcj (T.C.β (Hcj)) (%/°C)	-0.6

Packing & Shipping Packing - Inner Packaging
- Standard Air and Express Packaging
- Standard Sea Packaging
Shipping
-When the gross weight is below 50kgs, we recommend to send it after packed in magnetism shielded cartons by express. -When the gross weight is between 50-100kgs, it can be sent by express or air. -When the gross weight is over 100kgs, we recommend to ship it by sea.
Remarks: We have good contract prices with FedEx, DHL, UPS and TNT. Of course you can choose freight collect with your international courier's account no. For air and sea shipping, we have an experienced logistics team to handle the delivery and our own forwarders that we have been cooperating with for many years. If you would like to ask your forwarder to deal with the delivery, it is also okay with us. Company Introduction Hangzhou Shengyuan Machinery Co., Ltd. is specialized in manufacturing permanent magnets and magnetic assemblies. Our main products include neodymium magnets, SmCo magnets, AlNiCo magnets, ferrite magnets, pot magnets, magnetic hooks, fishing magnets, magnetic lifters, magnetic rods & grates, magnetic pushpins, magnetic tool holders and magnetic chucks, etc. We have a professional R&D team with plenty expertise and a sales team with rich experience in overseas business. Furthermore, all our products are manufactured with advanced equipment and strict QC procedures in order to ensure high quality. Our company's core value is "Building A Good Reputation With Quality Products And Excellent Service".
With the advanced management concepts and experienced team, we have exported our products to many countries and regions all over the world, especially to North America and Europe. Our products enjoy a good reputation among our customers.
We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits. Add.: No. 66, Leda Rd., Xiaoshan Economic & Technological Development Zone, Hangzhou City, Zhejiang Province, 311200 China. CONTACT US...
Why Choose Us 1. Factory direct price makes our customers more competitive in the market. 2. OEM and customization is welcome.
3. Quick response to customers.
4. Professional R&D team with extensive expertise in the area of magnets and magnetic assembies . Most of our engineers at least have 10 years experience.
5. Advanced production and inspection equipment.
6. Strict quality control system. ISO9001:2015 and RoHS
7. Experienced logistics team to deal with FOB, CIF and DDU terms. FAQ -What information should I provide in my inquiry? 1. Maximum working temperature. 2. Magnet's grade or magnetic flux density at the center.
3. Magnet dimensions and tolerance.
4. Any surface treatment on the magnet?
5. Order quantity.
6. Any special requirements for the packaging and transportation? -How soon can I expect to get your reply?
Normally you can receive our reply within 1 hour during our work time 08:00 - 18:00(UTC-8). -How will you ship the samples to me? We will use international express such as FedEx, DHL, UPS and TNT. We have a good contract price with them. -What is the normal delivery time for the customized magnet's order? The normal delivery time is about 20 days. -How about the payment methods? We accept T/T, PayPal, Western Union and L/C
