Model 4lz-13 Large Grain Wheat Combine Harvester for Rice/Wheat/Corn/Maize/Soybean
Basic Info.
Model NO.
4LZ-13
Application
Rice, Corn, Wheat, Soybean
Power Source
Diesel
Harvest method
Cutting
Drive Type
Mechanical + Hydraulic Drive
Transmission
Belt and Chain
Portable Harvester Type
Combine Harvester
Certification
ISO9001:2008, ISO45001 and ISO14001
Color
Red
Condition
New
Application Field
Agriculture
Warranty
12 Months
Method of Discharging Grain
Mechanical Automatic Unloading of Grain
Qty of Fan
1
Fan Diameter
293mm
Min Ground Clearance
360mm
Size of Main Threshing Drum
610*3050mm
Cutting Table Auger Type
Spiral Gear Type
Structure Type
Self-Propelled Full Feed
Feeding Rate
13kg/S
Engine Type
Vertical, in-Line, Supercharged, Intercooled, Hig
Driving Type
4WD
The Width of Cutting Table
5400mm
The Granary Volume
7.5stere
Tank Capacity
300L
Weight
12500kg
Transport Package
Standard
Specification
9450mm*5800mm*3850mm
Trademark
WAN NIAN LI
Origin
China
HS Code
8433510090
Production Capacity
10000PCS/Year
Packaging & Delivery
Package Size
945.00cm * 580.00cm * 385.00cm
Package Gross Weight
12500.000kg
Product Description

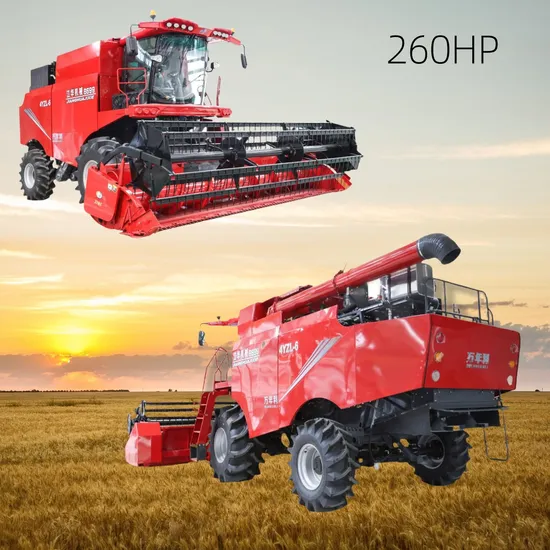

Product Description260 HP self-propelled grain combine harvester can be configured with different cutting tables ,suitable for wheat, soybean,sorghum and
other widespread grains,
achieving a multi-purpose machine,it is a good helper of modern farmers.
With single drum longitudinal axial flow threshing technology, it has better separation performance, thus reducing the grain crushing rate and improving the cost performance.
It is equipped with 260HP Yuchai engine,Mechanical + hydraulic drive and a fully sealed luxury cab,the engine rated speed is 2200R/min,which can meet the needs of different working environments
Product feature
Product Parameter
| Product specification of combine harvester | |||||
| Item description | unit | 4YZL-6(Corn) | 4LZ-13(wheat,soybean,sorghum) | ||
| Model | / | 4YZL-6 | 4LZ-13 | ||
| Structure type | / | Wheeled.Directly thresh.returning straw to the fields | Wheeled self-propelled full feed | ||
| Weight | kg | 10450(line spacing 650) /10350(line spacing 600) /10250(line spacing 550) | 12500 | ||
| Dimension(L×W×H) | mm | 10200×4165×3750(line spacing650) 10200×3880×3750(line spacing 600) 10200×3615×3750(line spacing 550) | 9450×5800×3850 | ||
| Gearbox | / | Mechanical gearbox+hydrostatic stepless transmission | |||
| Hourly productivity | hm2/h | 0.6~1.5 | 0.6~1.5 | ||
| Engine Part | Model No. | / | Yuchai YCA07P260-T400 | Yuchai YCA07P260-T400 or Yuchai YC6J220-T300 | |
| structure type | / | 6-cylinder,Vertical, in-line, supercharged, intercooled, high pressure common rail | 6-cylinder,Vertical, in-line, supercharged, intercooled, high pressure common rail | ||
| rated power | KW | 191 | 191/162 | ||
| rated speed | R/min | 2200 | 2200 | ||
| Generator | V | 24V alternator | 24V alternator | ||
| Fuel Consumption | kg/hm2 | ≤35 | ≤35 | ||
| Fuel Capacity | L | 300 | 300 | ||
| Walking Part | Drive mode | Front | / | Mechanical + hydraulic | Mechanical + hydraulic |
| Rear | / | mechanical | mechanical | ||
| Drive type | / | Four wheel drive | Four wheel drive | ||
| Working Speed | km/h | 1.5~6.0 | 1.5~6.0 | ||
| Work gear | / | 3 | |||
| Min.ground clearance | mm | 360 | 360 | ||
| Axle base | mm | 3290 | 3290 | ||
| Guide wheel base | mm | 2600 | 2600 | ||
| Drive wheel base | mm | 2600 | 2600 | ||
| Guide wheel tire specifications | / | 19.5L-24 | 19.5L-24 | ||
| Driving wheel tire specifications | / | 28L-26 | 28L-26 | ||
| Header | Cutting table auger type | / | / | Spiral gear type | |
| Cutter form | / | / | International standard type II | ||
| Reel type | / | / | Eccentric spring gear type | ||
| Dia.of reel | mm | / | Φ1130 | ||
| No.of reel slat | pcs | / | 6 | ||
| Feeding rate | kg/s | / | 13 | ||
| working width | mm | 3980(line spacing 650) /3685(line spacing 600) /3435(line spacing 550) | 5400 | ||
| Type of picking mechanism | / | Picking plate | / | ||
| Cutting table type | / | horizontal type | / | ||
| Number of picker rolls/plates | pcs | 12 | / | ||
| Number of working lines (channels) | pcs | 6 | / | ||
| line spacing | mm | 650/600/550 | / | ||
| Threshing & cleaning &Grain-unload | Threshing Rotor | Type | / | longitudianl axial flow | longitudianl axial flow |
| QTY | / | 1 | 1 | ||
| Size (outside diameter*length) | mm | 610*3050 | 610*3050 | ||
| fan | qty | pcs | 1 | 1 | |
| type | / | Tubular | Tubular | ||
| Diameter | mm | φ293 | φ293 | ||
| cleaning | Concave screen type | / | Type of grid | Type of grid | |
| Cleaning screen type | / | Fish scale sieve type | Fish scale sieve type | ||
| Grain-unload | Method of discharging grain | / | Mechanical automatic unloading of grain | Mechanical automatic unloading of grain | |
| Cabin | Cabin with A/C,with display equiped with 3-ways video to watch the rear tires and rear of machine and grain tank,and with suspension seat,auxiliary seat and hydrostatic clutch. | / | Luxury sealed cab | Luxury sealed cab | |
| / | air conditioner | air conditioner | |||
| / | RVC and Multimedia display | RVC and Multimedia display | |||
| / | Seat with armrest and alternate seat | Seat with armrest and alternate seat | |||
Company Profile
Exhibition
Packaging & Shipping
After sales service24-hour remote on-line serviceWe owns an extraordinary service team. We're realizing the localized overseas service, which covers digitalized service&training methods, 24-hour remote on-line service, and on-site service and serve our customers seamlessly.SIMILAR PRODUCTS
FAQQ1:Are you the factory or the trading company?A1:We are the factory,we located in Shanxian County,Heze City,Shandong Province,China.Q2:What after-sales service can your company provide?A2:We can provide technical support and on-site installation support.Q3:How about your price?A3:We sell every machine at a low pirce for the same quality, we leave the maximum profit to customers.Q4:Can you provide spare parts for free?A4:Of courseQ5:It can be customized?A5:Of course,you only need to provide customized requirementsQ6:Can we have some samples?A6:Of course. We understand the importance of testing some samples before placing an order.Q7:What is the MOQ?A7:Normally the MOQ is one set.There are some exceptions to this requirement because of the type of machines.
