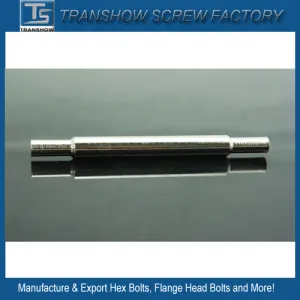

Nickle Plated Metal Steel Double Head Dowel Solid Pins

Product Description

Product Description
Nickle Plated Metal Steel Double Head Dowel Solid Pins
Carbon Steel Clevis Pin Customized
Zinc Plated Size 10x100mm
With Split Holes (single or double)
Surface is smooth and polishing
Clevis Pins used with cotter pins ( split pins ) to fastening components.
The regular type clevis pins with a hole in the end and the other end has an small flat head.
All Steel and Stainless Steel Clevis Pin with Split Pin
Single split hole and multi holes
Clevis Pin DIN1444, Split Pin DIN94
Or ANSI/ASME B18.8.1 Standard
Clevis Pin, available in diameter 3mm up to 30mm
Length from 10mm up to 200mm
Split Pin diameter from 1.3mm to 6.5mm
Length from 15 up to 100mm
All specifications can be customized
Clevis Pins used with cotter pins ( split pins ) to fastening components. The regular type clevis pins with a hole in the end and the other end has an small flat head.
Transhow Factory, produce and export various pins,
Straight Pin, Clevis Pin, Smooth Pin, Headed Pin
Split Pin, Cotter Pin, R Pin, Threaded Pin, Knurled Pin
Standard, DIN1444, DIN1481, ANSI

DIN1481 spring pin specifications
D	H	D/max	D1
3	0.60	3.3	2.1
4	0.80	4.4	2.8
5	1.00	5.4	3.4
6	1.25	6.4	4
8	1.50	8.5	5.5
10	2.00	10.5	6.5

Related Products More Optional
R Type Spring cotter Pins
Split Pin, is a kind of used to lock other components of the pins, used to lock shaft, sollted nut, etc
Size : M0.6~M20
Lenght : 8mm~45mm
Material : carbon steel , Spring Steel , Stainless Steel 304/316
galvanization passivation or phosphorus treatment;
If material is copper or stainless steel, will polishing,smooth and brighted
Packaging & Shipping
Company Profile Transhow Screw Factory, produce hex flange head bolt, round head and various headed bolts, wood screws and self tapping screws, customized screws, bolts, nuts, washers, threaded or non-threaded fasteners. Its manufacturing facility including wire heating and pre-production treatment equipments, cold heading machines, multi functional forming machines, tapping, grounding, stamping, drilling, lathes and other tooling.
With more than 15 years production and supplying experience, we are the main suppliers of fasteners and hardware to our local electronics, furniture and machining manufacturers. Our customized bolts, screws and metal stampings, couplings and clamps are widely used in the electricity supply system, electronic transmission facilities, furniture and instrument assembly parts.
