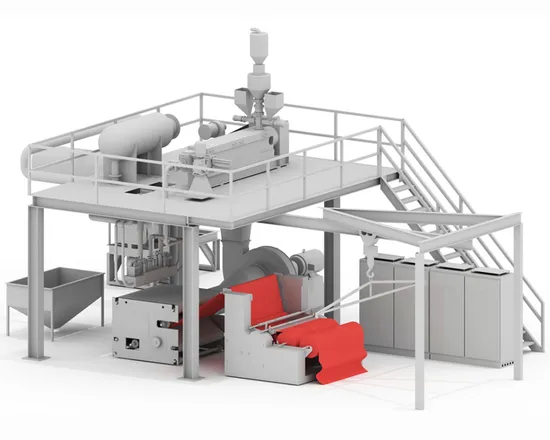

Jingwei Brand Jwm-2400 Meltblown Non-Woven Fabric Machine

Product Description

JINGWEI Brand Meltblown Non-woven Fabric Machine for Meltblown Face Mask Making
24h Online Customer Service

Detailed Photos

Product Description

Flow chart :
Raw material -----Melt extrusion -----Filtering -----Measuring -----Spinning -----Cooling--- Stretching Web forming-----Hot-rolling -----Winding and cutting--Final product

Application Area :
Hygienic/Medical products::sanitary napkin, diaper and so on,bandage first aid kit, surgical towel,birth aid kit etc;
Filler products:clothing warm flocs;
Filter products:mask filter layer,filter material for air,water and oil and so on;
Household Products:oil absorption blanket and so on.

Installation Instructions

1.Melt-blown Part
1-1	Vacuum Feeder	feeding capacity	300kg/h	1 set
		motor power	5.5kw*1
1-2	Screw Extruder	model	φ90; 30:1	1 set
		transmission motor	Siemens AC 55kw*1
1-3	Melting Filter	type	Candle	1 set
		filtration area	3.5 M²
		heating medium	oil heating/ conducting oil
1-4	Metering Pump	model	100cc	1 set
		Max. speed	35RPM
		motor power	3kw(35/1)*1
1-5	Meltblown Die Head Head Lifting Device	model	2400mm	1 set
		heating capacity	75kw*1
1-6	Head Lifting Device	model	2400mm	1 set
1-7	Air Heater	material	stainless steel	1 set
		motor power	300kw*1
1-8	Air Blower-High Pressure	model	2400mm	1 set
		motor power	90kw*1
1-9	Air Suction Blower	motor power	55kw*1	1 set
1-10	PLC Electric Control	cabinet group qty	1 group for meltblown	1 set
		PLC model	Siemens S7-300
2.Fabric Forming Part
2-1	Web Forming Machine	process speed	9~350m/min	1 set
		motor power	22kw*1 Siemens/Beide AC motor
		thickness	50mm
2-2	Electret Processor	model	2400mm	1 set
2-3	Auto Winder Machine	flatulence axis	3 pcs	1 set
		wind diameter	Max: 1200mm
		wind weight	Max: 500kg
