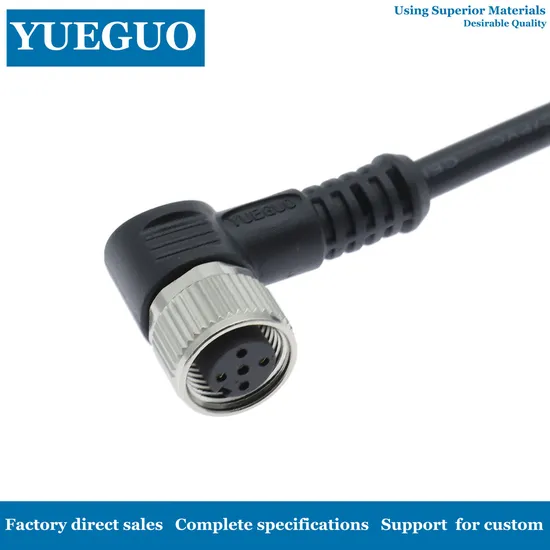

5-Core Black 90 Degree Elbow Round Waterproof M12 Connector
| US$1.10 | 100 Pieces (MOQ) |
Basic Info.
Model NO.
YG-12-L-5B-1M-PVC
Gender
Female
Certification
RoHS, CE
Application
UHF, Automobile
Contact Resistance
3.8mΩ
Contact Material
Brass
Surface Treatment
Nickel Plating
Housing
Brass Nickel Plating
Colour
Black,Orange
Connector Series
M12 Connector
Pin
4,5,8
Cable Length
Any(mm)
Material
PVC,PUR,Rubber,Nylon
Application Area
Auto Parts,LED,Sensor
Transport Package
Carton Packing
Specification
PCS
Trademark
YUEGUO
Origin
Guangzhou
Production Capacity
5000
Packaging & Delivery
Package Size
46.00cm * 32.00cm * 32.00cm
Package Gross Weight
0.500kg
Product Description
Product DescriptionDimension drawin
Speclficatlions
| Pin Number | 4 | 5 | 8 |
| Connector Locking s/stem | screw | ||
| Temination | soldermoulded-on cable | ||
| Wire gauge in mm² | Max.0.34mm²(WAG22) Max.0.25mm²(WAG24) | ||
| Cable outlet(mm) | 3.5-8mm | ||
| Shell protection | IP65/IP67 | ||
| Mechanical operation | >100 Steckzyklen/>100 Steckzyklen | ||
| Upper temperature | +85ºC | ||
| Lowertemperature | -25ºC | ||
| Rated voltage | 250V | 60V | 30V |
| Rated imoulse voitage | 2500V | 1500V | 800V |
| Pollution degree | 3 | ||
| Overvoltage categorie | II | ||
| Materiall group | II | ||
| Rated current(40ºC) | 4A | 2A | |
| Contact resistance | ≤3Ω | ||
| Pin contact | CuzN(Messing/brass) | ||
| Contact plating | Au(Gole/gold) | ||
| Male insert | PBT/PA(UL94HB) | ||
| Housing canle connectoe | PUR/PVC | ||
Instrumentation
Packaging & Shipping
FAQ Q1: Are you a manufacturer?
A1: We are manufacture, we can provide one-stop station service for connectors and cables with factory price.
Q2: What is the necessary information needed for quotation? A2:The series(M5/M8/M12),coding,male or female,pin number,cable length.
Q3: What is the minimum order quantity(MOQ)?
A3:100 pcs or negotiatable.
Q4: Volume order lead time? A4: 3-4 weeks. Q5: After-sales service A5: All the inquiry will be response within 24 hours, the commucation will be effective.
