High Quality Beautiful Price Colorful Mask Kids Mask Making Machine

Product Description

High Quality Beautiful Price Colorful Mask Kids Mask Making Machine
Machine Introduction :

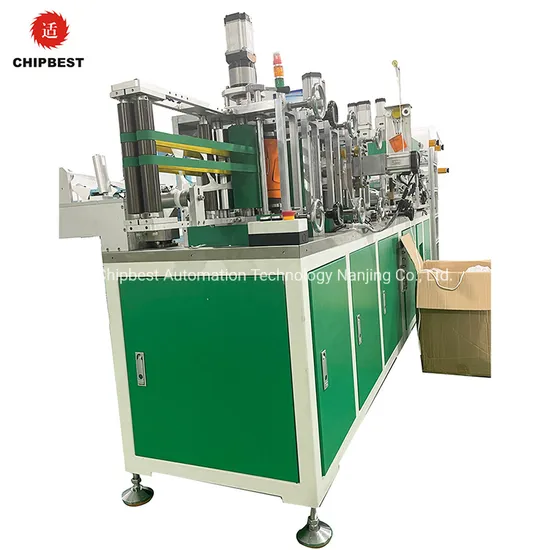

This good performance equipment is suitable for the automatic production of KN95 (N95) masks. The equipment cooperate with each production process through positioning system and tension system. In order to meet the market demand, we can simply replace the mold to adapt to all kinds of KN95 mask production.The whole machine consists of material feeding frame/rack, nose line/bridge unwinding folding group, edge sealing group, mask cutting group, discharging/outfeeding/output group, waste edge winding group, etc.By PLC control and power provided by servo motor, the production is completed after ultrasonic welding and forming. Machine Picture :
Action Flow :
Raw material loading (four or five layers of cloth shall be placed according to the product requirements) → pushing nose bar → body knurling → coding (code spraying or laser marking shall be selected according to the demand) → left and right ear belt welding → folding → edge sealing → finished product cutting → finished product discharge.
KN95 mask machine consists of the following equipment: Six layer raw material loading mechanism, nose bridge & embossing process, coding (optional or laser marking as required), welding ear belt process, cost cutting & waste disposal process.

Structure Diagram :

Equipment Parameters :

High Quality Beautiful Price Colorful Mask Kids Mask Making Machine
Item	Spec.	QTY
Touch screen	TGA63S(10.1)	1
Servo motor	MS6H-80CS30B1-20P7	11
Servo motor	MS6H-60CS30B1-20P4	11
Planetary reducer	PLF060 single pole(with 750W servo)speed 1:20 PLF060 single pole(with 750W servo)speed ratio 1:20	11
Planetary reducer	PLF060 single pole(with 400W servo)speed rate 1:5 PLF060 single pole(with 400W servo)speed ratio 1:5	11
Stepper motor	stepper 86	1
Stepper motor	stepper 57	2
Ultrasonic For welding ear	15k2600w	2
Edge sealing ultrasonic	15K4200W	1
Print Ultrasonic	15K2600W	1
Power line	3*2.5 mm²	1
AC contactor	NXC-38 / 220V	1
Air switch with electricity leakage protection	NXBLE-63-2P C32	1
Filter	CW4L2-50A-S	1

Technical Parameters :

Name	High Quality Beautiful Price Colorful Mask Kids Mask Making Machine
No.	project	Specification Parameters	remarks
1	Mask Producing Speed	110±10pcs/min
2	Total electric consumption	1. Max 26KW 2. (ultrasonic 2.6KW*3+4.2KW*1+ other 14KW)
3	Control system	PLC (programmable logic controller)
4	Compressed air pressure	0.5~0.7MPa
5	Voltage	220V,16A, 50/60Hz
6	Machine size(mm)	1. 1920(L)*9650(W)*1600(H) 2. 1600(L)*1200(W)*1600(H) 3. 1520(L)*610(W)*1600(H)
7	Machine weight	2000 kg
8	Air pipe	Φ12 air pipe, connect with triplet, and reserve 2 interfaces

Materials For KN95 Machine :
non-woven fabrics, hot air cotton, melt blown cloth

KN95 Mask Production Equipment Detaild Pictures :

Package & Shipping:
