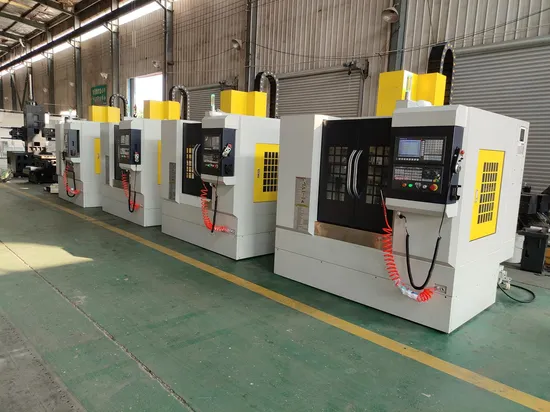

Small Size Vmc CNC Vertical Machine Center

Product Description

VMC855 vertical machining center product description:
1. X, Y, Z three-axis travel: 800×550×550mm.
2. The main shaft is driven by belt, the maximum speed is 8000 rpm.
3. Tool magazine: 24 tools Arm type ATC.
4. The head unit is a heavy box structure. The internal ribs are strengthened and highly rigid.
5. The spindle tooling method adopts pneumatic tooling, and the force of the spindle is uniform during tooling, which prolongs the life of the bearing.
6. The electrical box adopts an internally divided and isolated design to separate the heating source of the controller. The front side uses a heat exchanger to dissipate heat to prevent external dust from entering the electrical box; the rear side uses a fan to dissipate the heat of the fan.
7. The three-axis adopts Taiwan Shangyin/Yintai high-precision ball screw, combined with precision nut pre-compression and tail pre-tensioning devices to ensure that the machine backlash and thermal deformation are kept low for a long time.
8. The X, Y, and Z axes adopt roller-type linear guides, which have high rigidity, low noise, and low friction, which can make rapid displacement and obtain the best cycle accuracy!
9. All finished products have undergone laser positioning correction and circular testing. To ensure the best positioning accuracy and servo characteristics. In addition, the machine tool undergoes strict inspection measures before shipment to ensure the accuracy of the machine.

Item	Specifications	Unit	VMC500
Worktable	Size(L x W)	mm	700×300
-	(X/Y/Z axis travel	mm	500×300×400
-	Max. loading capacity	kg	300
T slot	Numbers/width/distance	mm	3-14-90
spindle	Spindle taper	-	BT30
-	Distance from spindle center to column guideway surface	mm	400
-	Distance from spindle nose to worktable	mm	100-500
-	Spindle speed	rpm	8000
-	Spindle motor	kw	3.7
Feed speed	X/Y/Z axis rapid feeding	m/min	24
-	X/Y/Z feeding speed	m/min	10
accuracy	positioning	mm	0.008
-	Re-positioning	mm	0.005
ATC	Numbers		12
-	Max. Dia. of tools	mm	100
-	Max. weight of tools	kg	6
	Machine Weight	kg	2000
-	Overall Size	mm	1800×1400×2100

Some machining Samples :
