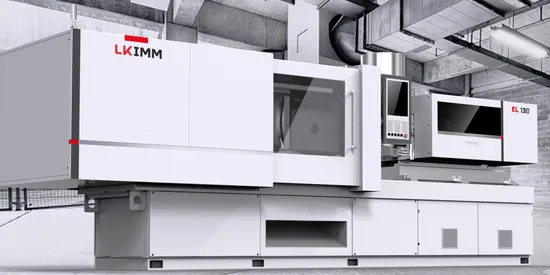

LK Elettrica-300 Ton Electric Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 5 in China.
We have 12 companies worldwide, 10 in domestic China, 1 in Taiwan and 1 acquired company IDRA in Italy, it is one of the world's leading die casting machine manufacturers. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang.
There are over 60 sales and service centers in the world with high-quality after-sales service. Our 24-hour prompt response system provide all-around fully coverage customer service.
Elettrica series 100 ton - 450 ton
Key features
Direct drive injection and clamping axis
Servo hydraulic auxiliary axis for corepull
Electric servo motor ejector and metering axis
Automatic clamping force adjustment
European technology
Use of application
Power tool, Personal Care, Medical, Automotive, Optical, Food industry
Technical Parameter List

ITEM		UNIT	EL300
Injection Unit	Injection unit		860I/860M			1100I/1100M			1400I/1400M
	Injection Speed	mm/s	160/250			160/250			160/250
	Screw type		A	B	C	A	B	C	A	B	C
	Screw Diameter	mm	45	50	55	50	55	60	55	60	65
	Shot Weight	g	318	393	475	428	518	617	594	707	830
	Injection Volume	cm3	350	432	523	471	570	679	653	778	913
	Injection Pressure	MPa	240	195	160	215	180	150	210	175	150
	Injection Holding Pressure	MPa	190	155	125	190	160	135	185	155	135
	Plasticizing Capacity	Kg/h	126	166	216	187	230	270	194	230	256
	Nozzle Pressing Force	kN	75			75			75
	Screw Speed	r/min	320			320			300
Clamping Unit	Locking Force	kN	3000
	Die Height (Min.-Max.)	mm	280-650
	Opening Stroke	mm	600
	Space Between Tie Bars	mm	730×730
	Ejector Stroke	mm	160
	Ejector Force	kN	69
	Minimum Mold Height	mm	510×510
	Size of mold platen	mm	1020x1020
Others	Flow	L/min	150
	Oil tank	L	90
	Rated power	kW	35/46			56/56			59/62
	Heating power	kW	20.0			24.8			30.0
	Machine Dimensions	mm	7275x1885x2440			7430x1885x2440			7745x1885x2440
