ODM 9.7 Inch Medical LCD Screen Display Applications 1536*2048 IPS TFT Display Panel

Product Description

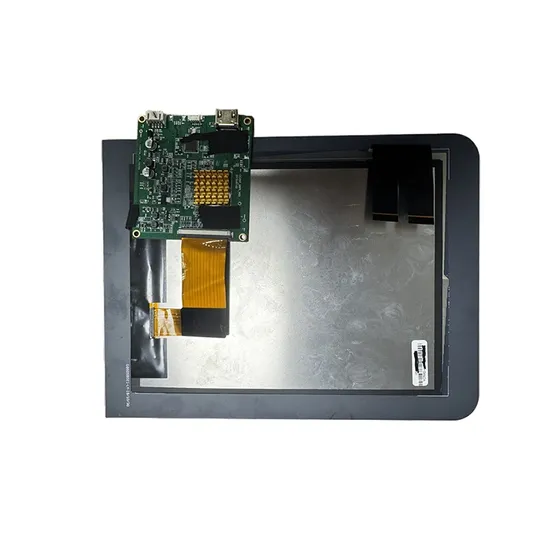

The CC0971N61A is a color active matrix TFT LCD that uses amorphous silicon TFT as a switching device, It's composed of TFT LCD panel, driver IC and backlight. This TFT LCM has a 9.7 inch diagonally active display area with resolution QXGA.

No	Item	Specification
1	Module size	9.7 inch(Diagonal)
2	Driver element	A-Si TFT active matrix / IPS
3	Resolution	1536 RGB (H) x 2048(V)
4	Display mode	Normally Black,Transmissive
5	Active area	147.46(W)×196.61(H)
6	Module size	154.016(W)×207.83(H)×2.6(T)
7	Color saturation	72%(NTSC)
8	Surface treatment	Anti-Glare
9	Color arrangement	RGB-stripe
10	Interface	MIPI
11	Backlight power consumption	2.5W (Typ.)
12	Panel power consumption	TBD (Typ.)
13	Weight	TBD (Typ.)

TFT LCD Display
Achieve micron level ultra-fine
circuit, stable function. Viewing Angle
Using professional tempered glass, the surface strength is as high as 7H or more, the structure can be made of ultra-thin thickness, and Borderless all-round viewing angle.Support Custom
Customized LCD Size & ResolutionCustomized Interface and Pins definitionCustomized FPC Shape and Material
Shenzhen Chengchen Technology Co., Ltd. was founded in 2015, the company is located in Baoan District, Shenzhen Guangdong-Hong Kong-Macao Greater Bay Area. Focusing on the combination of innovative display and intelligent hardware, we have a professionalR & D technical team, which can design and customize different product structures according to customer needs, strong hardware and software solution design capabilities, providing customers with high-quality display modules, touch one and one-stop solutions, and a complete product assembly plant.Products are widely used in industrial automation equipment, automotive electronics, medical display equipment, drone remote control, robots, industrial mobile terminals,conference equipment,intelligent business display, Internet of Things hardware display and other products. Chengche can provide you with the best quality products and the most satisfactory service.
1. Why choose us?* We have nine years of industrial LCD screen production experience, and we have a high reputation, and with many well-known companies have cooperative relations, there are many very successful cases. OEM/ODM offered for our customers. We are one of the leading manufacturer in this field.
2. What are the estimated lead times for the products?
* Samples that are in stock will be dispatched within 3 days of payment.
* Mass production typically takes between two to four weeks to complete.
3. What is the warranty duration for the products? * Our standard warranty period is generally one year, although it may vary depending on the specific product. 4. What is the Minimum Order Quantity (MOQ) for the products? * The MOQ varies for different products. Please get in touch with our sales team for detailed information regarding specific product MOQs. 5. How can I find the right product? * Please send us your requirements, we will recommend our standard products, if it's not fit, we will do the necessary adjustment & customization.
