Engine CNC Milling Machine 3 Axis Horizontal Provided 1 Set 16
| US$2,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MM-051
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
ISO 9001
Condition
New
Customized
Customized
Material
Metal
Application
Metal Recycling Machine
Machine Type
Milling Machine Type
Axis Configuration
Axis Configuration
Spindle Speed Range
Spindle Speed Range
Table Size
Customized
Control System
Fanuc, Siemens, Heidenhain
Machining Accuracy
±0.01mm, ±0.005mm, ±0.002mm
Spindle Speed
10,000rpm, 15,000rpm, 20,000rpm
Travel Range
X-Axis 500mm, Y-Axis 400mm, Z-Axis 300mm
Spindle Power
5.5kw, 7.5kw, 11kw
Feed Rate
10m/Min, 20m/Min, 30m/Min
Cutting Force
500n, 1000n, 1500n
Tool Capacity
12 Tools, 20 Tools, 30 Tools
Transport Package
Pallet
Specification
All Size
Trademark
BOLI
Origin
China
HS Code
8459619000
Production Capacity
2000
Packaging & Delivery
Package Size
205.00cm * 115.00cm * 245.00cm
Package Gross Weight
1300.000kg
Product Description

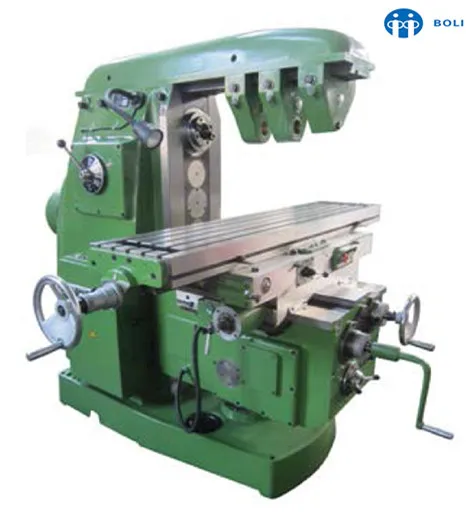

Milling MachineProduct Description
Standard Accessories
Drill chuck/Drawbar/Work lamp/Milling vice
Coolant system/Chip tray
X-axis mechanical power feed
Y-axis mechanical power feed
Toolbox&tools/Operation manual
Quality certificate/Packinglist
Optional Accessories
DRO/vise
Milling collet chuck
Rotary table
Dividing head
58 pcs clamping kits
Keyless drill chuck Product Parameters
| Model No. | Unit | X6032A | X6032B | X6036 |
| table size | mm | 1320×320(51.97"×12.60") | 1320×320(51.97"×12.60") | 1250×360(49.21"×14.25") |
| table travel | mm | 800(750)×300(31.20"(29.53")×11.81") | 1000×300(39.37"×11.81")(MANUAL) | longitudinal: 600(23.62") cross: 250(9.84") vertical: 420(16.54")) |
| worktable swivel angle | ° | - | - | ±15~±45 |
| worktable longitudinal/cross power feed | mm | - | - | 8steps 22~55 rapid: 810 |
| number/width/distrance of T-slot | mm | 5/14/63 | 5/14/63 | 3/18/80 |
| spindle taper | ISO50 | ISO50 | 7:24 ISO50 | |
| distance from spindle center to table surface | mm | 0-400(0"-15.75") | 0-400(0"-15.75") | 0~420(0"-16.54") |
| distance from spindle center line to arm | mm | - | - | 175(6.89") |
| arm travel | mm | - | - | 500(19.68") |
| spindle speed range | rpm | 58-1800 | 58-1800 | 60~1800 |
| spindle motor power | Kw | 4 | 4 | 4 |
| worktable power feed motor | W | - | - | 750 |
| worktable elevating moter | Kw | - | - | 1.1 |
| coolant pump | W | - | - | 90 |
| coolant flow | L/min | - | - | 25 |
| overall dimension | mm | 2070×1900×1850 | 2070×1900×1850 | 1880×1700×1830 |
| G.W. | kg | 2200 | 2300 | 2200 |
Detailed Photos
FAQ
1. Q: What is the brand of this milling machine? A: The brand of this milling machine is Haas. 2. Q: What is the maximum spindle speed of this milling machine? A: The maximum spindle speed of this milling machine is 10,000rpm. 3. Q: What is the table size of this milling machine? A: The table size of this milling machine is 600mm x 400mm. 4. Q: Does this milling machine have an automatic tool changer? A: Yes, this milling machine has an automatic tool changer with a capacity of 20 tools. 5. Q: What is the travel range of the X-axis on this milling machine? A: The travel range of the X-axis on this milling machine is 500mm. 6. Q: What is the power of the spindle motor on this milling machine? A: The power of the spindle motor on this milling machine is 5.5kW. 7. Q: What is the feed rate of this milling machine? A: The feed rate of this milling machine is 20m/min. 8. Q: What is the machining accuracy of this milling machine? A: The machining accuracy of this milling machine is ±0.01mm.
