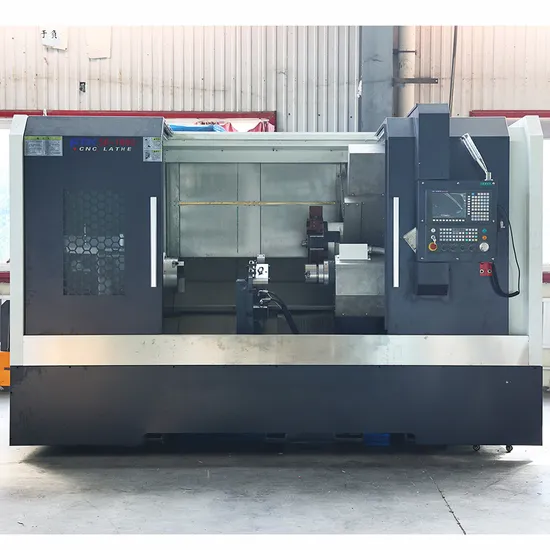

Automatic Metal TCK50 Horizontal Metal Slant Bed CNC Lathe
1.TCK-50 adopts 45 ° inclined layout and integrated bed base structure, which greatly improves the bending and torsional rigidity, high rigidity and high stability of the machine, a strong guarantee.2.TCK -50 Spindle Unit for the assembly of the spindle, the use of high-precision NSK spindle bearings, the whole spindle, unit precision, good rigidity and has an ideal performance. Through strict dynamic balance test, the spindle system has high accuracy, good accuracy retention, small thermal deformation, good thermal stability, the highest speed up to 2600rpm.3.TCK-50 configuration hydraulic knife tower, to provide users with convenient, practical and reliable processing parts.4.TCK-50 provides the user with perfect hydraulic and lubrication system, using high-quality hydraulic pump and hydraulic, valve and other components, greatly reducing the failure rate. Hydraulic and lubrication system design is simple and reliable. The machine tool adopts centralized fixed, quantity automatic lubrication.5.The driving motor and the ball screw adopt the elastic coupling, the transmission has no clearance, the precision is high, has the good protection function to the machine tool.6.This machine tool adopts servo main motor to realize stepless speed regulation and stable work. It can realize constant linear speed cutting for parts with high surface quality
Detailed Photos
TCK-50 CNC lathe adopts box structure bed, high strength Mihanna cast iron, compact structure, good strength, appropriate hardness, low friction coefficient, and has self-lubrication, base bed integral box structure, greatly enhanced, the whole machine tool rigidity and stability, and has the function of vibration absorption, reduce the tool loss, improve the workpiece, quality. With high performance-price ratio, compact and reasonable layout, high speed, high precision, high rigidity, and rich configuration, it provides the guarantee of high efficiency and high reliability for users.
Product Parameters

Specification	TCK50	TCK56	TCK600	TCK1000	FCK56
Max. swing diameter on the bed (MM)	500	560	600	560	650
Max. cutting diameter (MM)	360	330	550	350	530
Max. cutting length (MM)	500			1000	540
X-axis travel(MM)	200		280	200	280
Y-axis travel(MM)	±50
Z-axis travel	550	450	550	1050	750
X-axis moving speed (M/MIN)	30
Z-axis moving speed(M/MIN)	30
X-axis positioning accuracy	0.008mm
X-axis repeatability	0.005mm
Z-axis positioning accuracy	0.008mm
Z-axis repeatability	0.006MM
Spindle speed(RPM)	50-4500		50-3500	50-4500	50-4500
Main motor power	11kw
Main motor torque	72N.M
Weight (KG)	3600	4500	4300	4500	4200
