Heat Pipe Solar Collector (ILHC-5820H)

Product Description

The heat pipe solar collector consists of heat pipe vacuum tube, manifold, suppoting bracket and other accessories
1) Solar heat pipe and inner midium for thermal conduction, with a quick start and super daily efficiency about 55% in summer and 42% in winter.
2) No water to go through glass vacuum tubes, no freeze to break vacuum tubes, able to serve in extremely cold winter
3) Heat pipe tip is inserted into a closed cannula welded into the copper flow passage, system works well even with withdrawal of one or several heat pipe vacuum tubes
4) Aluminum alloy as bracket with super performance in every aspect, universal bracket suitable for slope and flat roof installation
5) Modularized collector, arbitrary combination with architectural structure, adaptable to either slope roof or flat ground or upright wall, Maintenance free collector
Warranty: 3 years international responsibility for integrated system and 15 years for vacuum tubes due to original quality problems
Certificate: CE, ISO9001: 2000, CCC

Heat Pipe Vacuum Tube	Spec. (mm)	Φ 47× 1500 Φ 58× 1800
	Tubes (pcs)	12 / 15 / 20 / 25 / 30
	Material	Three-target vacuum tube, red copper heat pipe, aluminum fin
	Coating	Cu/SS-ALN(H)/SS-ALN(L)/ALN

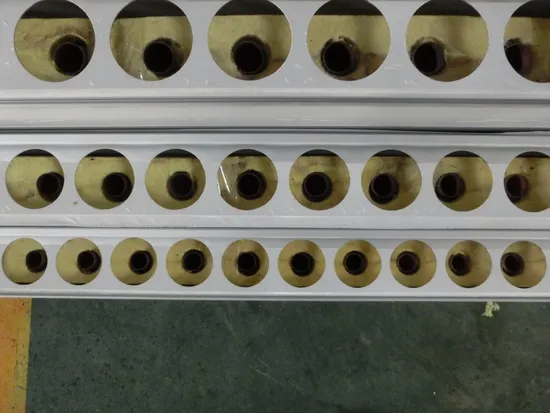

Pressurized Manifold	Flow passage	High-quality red copper Φ 35*1.0mm
	Outer shell	Aluminum alloy plate 2mm
	Insulation	Processed high-density polyurethane foam-forming 30mm
Bracket	Aluminum alloy 1.8~2.0mm
Accessories	Stainless bolts & nuts, dustproof rubber seal, plastic pipe holder
Working Pressure	12 bar
Tilt Angle	25° ~ 90° (-5° upright or level shift)
Hail Resistance	Φ 25mm diameter
Anti-freezing	≤ (-)35° C
