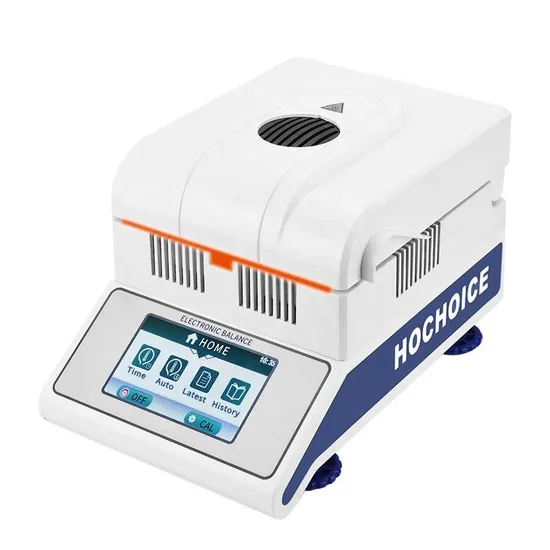

Hochoice 50g 100g 0.001g Touch Screen Automatic Digital Halogen Moisture Analyzer

Product Description

Product Parameters

Model No.:	Capacity	Readability	Calibration Mass	Platform Size
HCSFY001	50g	0.001g	50g	Φ90mm
HCSFY002	50g	0.002g	50g	Φ90mm
HCSFY005	50g	0.005g	50g	Φ90mm
HCSFY105	100g	0.005g	100g	Φ90mm
HCSFY102	100g	0.002g	100g	Φ90mm
HCSFY101	100g	0.001g	100g	Φ90mm
Specification	*Moisture Readability:0.02% (50g), 0.02%/0.01%(100g) *Sensor: Load cell *Operation Temp Range: 5-35 °C *Heating Way: Halogen Lamp Temp *Increase Step: 1°C *Temp Range 60-200°C *Dry Range: 100.00%-0.00% *Moisture Range: 0.00%-100.00% *Heating Time:1-99 minutes interval of 1 seconds *Heating Program: Standard, Fast *Output Port:RS232 *Power:AC220V or 110V

Product Description Function:
•Measures the precise moisture content of samples
•Built in RS232 Communication ports for easy communication with
printers and computers
• 160 Celsius Drying Temperature
• 3 drying profiles:Manual, timed, automatic
• Record save/history check
Structure:
*Large, Easy to Read LCD touch display can get the clear and precise results in seconds.
*Equipped with RS232 for easy PC connectivity
*The Moisture Analyzer combines high quality and durable construction into a sleek, compact design. It offers dependable, accurate results for a wide variety of moisture analysis applications.
*3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
*Super magnetic sensor can be accurate weighing, fast stability and is suitable for rapidly determining the quality and
provides accurate results at 0.01% 0.001g. With a large capacity of 90g, it is ideal for food, agriculture,
chemical, pharmaceutical and other applications that require measurements up to 0.01% 0.001g.
*Set up and operation is extremely easy. Just press and hold the temperature or time by press the screen to set drying parameters. Th
ADVANTAGES


Operation steps
SIMPLE OPERATION

1. Put the sample to be tested into the sample tray evenly (if the object is large, such as walnut nut products, it is suggested to crush and measure first, which is fast and accurate).


2. Cover the heating hood and finally press the "start" button. The rest will be done automatically. When the measurement is completed, the instrument will automatically alarm, and the measurement result will be locked on the LCD screen.


3. Shutdown mode: automatic shutdown, manual shutdown, timing shutdown.

Working principle
SIMILAR BUT BETTER
The traditional old mechanical moisture tester usually adopts the oven drying method. It takes 3-4 hours for a sample to be tested. At the same time, the moisture value (moisture content) of the sample can be obtained only by weighing and manual calculation in the balance. The low efficiency of the oven moisture meter can not meet the needs of the high-tempo enterprise production.
Hochoice moisture analyzer adopts high efficiency drying heating method - high power halogen lamp with high quality, fast heating and even heating. The sample is heated quickly and evenly, and the water content of the sample is dried continuously. During the whole measurement process, the instrument can display the measurement results in real time: sample weight, water content, solid content, measurement time, heating temperature, etc.
Related Products


COMPANY PROFILE COMPANY PROFILE
AUTHENTICATION

Our Company
SHANGHAI HUACHAO INDUSTRIAL CO., Ltd. a professional manufacturer engaged in the research, development, production, sale and service of precision electronic scales like electronic balance, digital baby scale, weighing scale, body fat scale, kitchen scale etc. more than 10 years.

Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure to full customer's satisfaction.

We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.




Our certifications Our Certifications


LOGISTICS DELIVERY LOGISTICS DELIVERY
QUICK DELIVERY

Packing
@ As per customer's specified requirements
@ Standard Export Packing:Carton+Pallet
Shipping
@ Small order: By express, TNT/ DHL/ UPS/ Fedex etc.
@ Large order: By sea or By air
@ Choose the best suitable way as your need.

FAQ FAQ
AUTHEBTICATION

Q:Does the machine measure fast?
A:Fast measuring speed, simple operation, in 5 minutes,the ordinary products can be dried and the data will be generated.

Q:Upper temperature limit for products?
A:The upper limit temperature of the product has little to do with the object it is measuring. The recommended temperature is 105 degrees.

Q:Can the moisture content be directly measured? (moisture value)
A:This product is automatic measurement, can automatically determine the content of water (water value), convenient and fast.

Q:How to use automatic drying?
A:Automatic drying means that if you are not sure about the approximate measurement time of the object, you can choose Automatic drying, so that the object will automatically stop after the moisture rate is measured.

Q:General object measurement time?
A:The normal time of general products, such as corn, millet and grain, is about 8 minutes, while the time of special products is 10-15 minutes. Different objects have different Settings.
Statement: this question and answer can only represent some regular answers of this product, do not represent industry products, please carefully refer to the choice!
