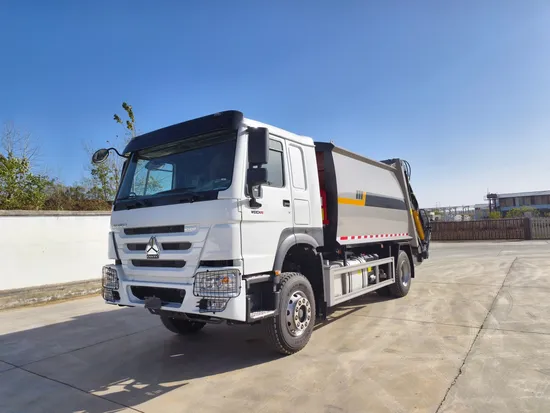

HOWO 300-340HP Garbage Compactor Truck 16cbm Compressed Refuse Truck

Product Description

Product Description
Chinese Factory HOWO 16m³ garbage compactor truck
Garbage Compactor Truck, also called Compressed Garbage Truck, Compactor Garbage Truck, Compressed Garbage Truck, Rear Loader Garbage Compactor Truck, Waste Compactor Truck, Waste Compressed Truck, Refuse Compactor. How the Garbage Compactor Truck Works? The garbage compactor trucks are loaded by sanitation engineers along neighborhood streets. The trash is loaded into a hopper in the back of the truck of rear loaders. Hydraulic cylinders operate the compacting mechanism, which takes the trash out of the hopper and places it into the body of the truck. How much does a Garbage Truck hold? Different types of garbage trucks that hold different amounts of waste. The truck that comes through your neighborhood can hold anywhere from 5 tons to 22 tons of waste. The available chassis brands for Garbage Compactor Truck areSINOTRUK, DONGFENG, FAW, FOTON, JAC, JMC, HYUNDAI, etc.
The car is a mature product of our company, the top part is composed of sealed garbage compartment, loader, shovel, hydraulic transmission system and electrical control system. The whole vehicle is fully sealed, using electro-hydraulic integration technology, with the help of machine, electricity, hydraulic combined automatic control system, through the compartment, filler and push shovel and other special devices, to achieve garbage pouring, crushing or flattening, strong loading, the garbage into the compartment and compacting and discharging. All the sewage in the process of compression enters the sewage compartment, which completely solves the problem of secondary pollution in the process of garbage transportation. vehicle disposition
The vehicle is composed of car chassis, garbage box, filler and turnover mechanism, the vehicle load part is made of Q345 high strength manganese steel, volume of about 16cubic meters, can load 10 tons of bulk domestic garbage, the car with two-way compression function, the middle and rear sewage tank, the latest brokenable wood function, China's especially famous brand hydraulic system, There are electronic control automatic operation functions inside the cab and outside the vehicle, and different garbage loading devices can be optional at the rear of the vehicle.
Product Parameters

Chassis		Chassis brand		HOWO
		Chassis model		YQF5186ZYSE
		Overall dimension(L*W*H)		8900x2500x3300mm
		Drive modle		4X2 left hand drive/right hand drive
		Front axle		7.5ton loading capacity
		Rear axle		10ton loading capacity
		Wheel Base		4600mm
		Tyre size & number		10.00R20
		Max speed		105km/h
Engine		Model		weichai300-340
		Engine Type		6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4- valve,diesel engine
		Horse power		3300-340hp
		Displacement		7500ml
		Emission		Euro 2/3
Garbage tank		Volume of compartment		16cbm
		Thickness		Side :5mm ; Bottom:5mm
		Material		Carbon steel,inner epoxy anticorrosive
		Electric system		PLCCAN electric automatic control
		Function		Seal garbage truck is formed of garbage box, hydraulic system, operation system. Sewage will be put into totally the sewage box during self-compress and self-dump. With one Bucket. The rear bucket can be according to your requests.

Cab description

1. One and half raw,with cooling and heating air conditioner,electrical window,MP3,radio,USB 2. The cab can reversible forwardly,2-3 person allowed

Garbage container volume(CBM)	About 16M3
Garbage container shape	New style arc-shaped
The garbage container material	Q345 Mn steel
Garbage container plate thickness(mm)	Side floor:5mm,End floor:5mm
Compression ratio	>=2.5
Filler/Hopper effective volume(M3)	About 1M3
Loading/unloading cycle time(s)	<=40s
Feeding cycle time(s)	<=15s
Garbage upload/discharge cycle time(s)	<=40s
Control model	Automated and manual
Hydraulic system pressure(Mpa)	18Mpa
Multiple directional control valve	Made in China famous brand
Hydraulic oil pump	Made in China famous brand
Power take off	Made in China famous brand
Counterbalance valve	Made in China famous brand
Sewage tank	2 sewage tanks to collect waste water
Hydraulic oil cylinder	China famous brand--Fujian Longyan cylinder
Electrical control system(PLC)	SIEMENS PLC
LCD monitor	360 degree LCD monitor in the cab
Lighting	With working lamp and rear position lamp
Emgergency switch	With emergency cut off button on each side
Washing device	With hand washing device
My company special designed patents
1.New breakable scraper 2.Bidirectional peristalsis compression character 3.Equipped with middle and rear double sewage tanks to avoid secondary pollution 4.Shovel slider and skateboard slider are high quality MC nylon 5.The filler lift cylinder is equipped with a balancing valve

Detailed Photos
Dustbin elevator after sandblasting and painting (can hold more than 1 ton)
The dumpster of the compression truck, the body is fully welded, the side is 5mm and the bottom is 5mm (manganese steel), and it is resistant to corrosion and pressure after sandblasting and painting
Reinforced scraper (external reinforcement square tube, stronger pressure resistance), internal teeth (can break wood, branches)
Manual safety support lever
