Highly Reliable Concrete Pump Truck Syg5441thb 560c-10 56m for Hot Sale
Basic Info.
Model NO.
SYG5441THB 560C-10
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
200/137 M³/H
Feeding Height
1380mm
Vibrating Amplitude
2.6mm
Certification
ISO9001: 2000
Condition
New
Color
Red
Dimension(L*W*H)
14050*2500*4000mm
Max. Vertical Conveying Distance
56m
Max. Horizontal Conveying Distance
51m
Weight
43600 Kg
Pressure
8.3/12 MPa
Reach Depth
36.6m
Stroke Length
2100 mm
Hydraulic System Oil Pressure
32 MPa
Oil Tank Capacity
610 L
Engine Max Net Power
290/1600 Kw/Rpm
Capacity of Fuel Tank
390 L
Max.Speed
90 Km/H
Emission Standard
Euro III
Delivery Cylinder Diameter
260 mm
Unfolded Reach
15.2 M
Transport Package
Standard Ocean Freight
Specification
14050*2500*4000mm
Trademark
Top brand
Origin
China
HS Code
8705909100
Production Capacity
350piece/Year
Packaging & Delivery
Package Size
1405.00cm * 250.00cm * 400.00cm
Package Gross Weight
463600.000kg
Product Description

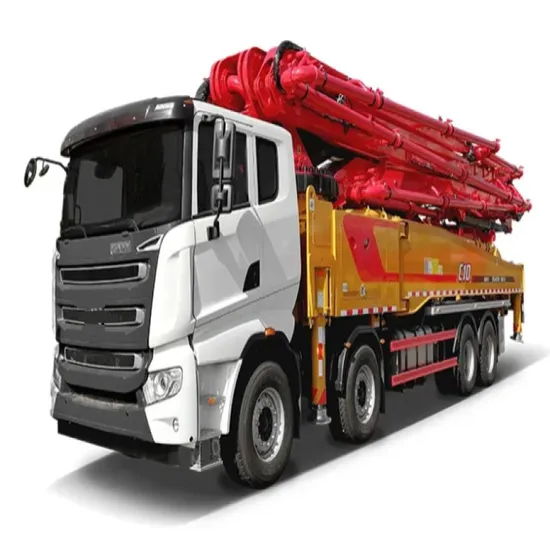

product titleSYG5441THB 560C-10 Concrete Pump Truck
Product Description
Highly Reliable
· International authoritative-certificate lighthouse factory & world-class manufacturing capability
· Optimized essential parts with ultra-high-strength steel · Open hydraulic system & high configuration
· Stable signal & precise control
Strong Pumping
· A 10% increase in pumping efficiency
· smoother flow, less blockage, and meet long-time pumping need
· Dual-purpose machine: quickly transforms into a line pump
· Various boom types & flexible working posture
· Less site limitation, smaller footprint, more comprehensive placement range
Extremely Economical
· Advanced fuel combustion & intelligent power matching technology
· The best cost performance choice
· Easy maintenance, cost-saving and time-saving
· The industry-leading most extended service life of wear parts
Product Parameters
| Item | SYG5441THB 560C-10 |
| Empty Weight | 43600 kg |
| Vertical reach | 56 m |
| Horizontal reach | 51 m |
| Depth reach | 36.6 m |
| Unfolded reach | 15.2 m |
| Theoretical output | 200 m³ /h (137 m³ /h) |
| Theoretical pressure | 8.3 MPa (12 MPa) |
| Delivery cylinder diameter | 260 mm |
| Stroke length | 2100 mm |
| Hydraulic system oil pressure | 32 MPa |
| Oil tank capacity | 610 L |
| Water tank capacity | 600 L |
| Volume of hopper | 700 L |
| Engine max net power | 290/1600 kW/rpm |
| Capacity of fuel tank | 390 L |
| Displacement | 12.8 L |
| Max.speed | 90 km/h |
| Emission standard | Euro III |
