Red Ceramics Tile Extruder Holland Brick Machine Clay Brick Making Machine

Product Description

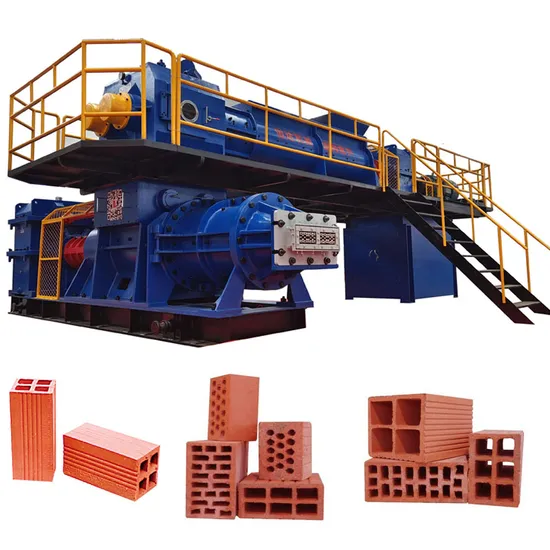

JKY75/65-40 holland Brick Machine is a big extruding & shaping device for hollow brick production line. It is suitable for hollow bricks with highly ratios hole, sintering bricks highly contained fly ash, low plastic glues soil brick, as well as the production of gangue and shale bricks. It enjoys many advantages: structure novel, technique advanced, high extruding, big capacity, highly vacuum degree, so it can instead of imported equipment. It is controlled by air clutch and is sensitive, convenient and reliable. It has been named excellent product by national authority department. It is exported to Russia, Sudan, Egypt and so on, and gaining the high appreciation.
Parameters of Jky75 clay brick making machine:

Item	Unit of measurement	JKY75 holland Brick Machine
Production capacity	standard brick(240*115*53mm)/hour	35000-40000
Vacuum degree	Mpa	≤-0.092
Power	KW	450+200
Overall size	mm	5500*5000*2500
Weight	t	52

Operation and Precautions of JKY75 holland Brick Machine :
1. This clay brick making machine opening, core head, core rod should be replaced and adjusted in time. While they are abraded to some extent, the sizes of tile will be affected in clay brick production line.
2. The wearing parts should be repaired and replaced when they are abraded after a period of use, or the product quality and output will decline, such as reamers, stirring blades and mud pressing board.
3. When you want to stop the machine, stop feeding first, and then squeeze out the clay inside the machine, in order to avoid the overload at next startup. Don't reboot the machine if the air pressure is lower than 0.5MMpa. The friction plate is easily burnt if the air pressure is not enough in clay brick production line.
4. The machine and all the bolts should be stopped and checked after six to eight hours' work for the first time to make sure if there is looseness. If yes, fasten them in time. If the machine is stopped for more than one day, all the clay material should be squeezed and cleaned out, trying to avoid the damage by the dry clay.
FAQ
1.Is your company a factory or trading company?
A: We are the professional clay brick making machine in Jiangsu, Nantong city for more than 50 years,with CE&ISO approved
2. What's the common raw material of bricks?
A: Clay,shale,soil,mud,earth,fly ash,coal gangue and so on.You can choose the most suitable material for your use.
3. If We want purchase the bricks machine,what data needed?
A: a.the production per day
b.The raw material of brick, such as clay,shale,soil,mud,earth,fly ash,coal gangue and so on.
c.The size of bricks you need: L?* W?* H?
d. Hoffman kiln or Tunnel kiln
( If you are not very clear with technical data of bricks machines, we can recommend for you.)
What's more, we have professional engineers,so customized machines are also available.And Detailed pictures and specifications of bricks machines and videos of products line can be offered freely if you need.
Up to now, our machines have been exported to many countries such as India, Bangladesh, Bengal, Uganda, Vietnam, Uzbekistan ect.
Buying tips
We have two kinds of brick making machine, one produce clay brick holland Brick Machine , another produce concrete block machine, when you want to buy, you please tell me
1. You need clay brick making machine or concrete block making machine?
2. Your brick size( length, width and height)
3. Your brick picture and brick production
Anticipating for your inquiry, and we warmly welcome the new and old customers to visit our company.
