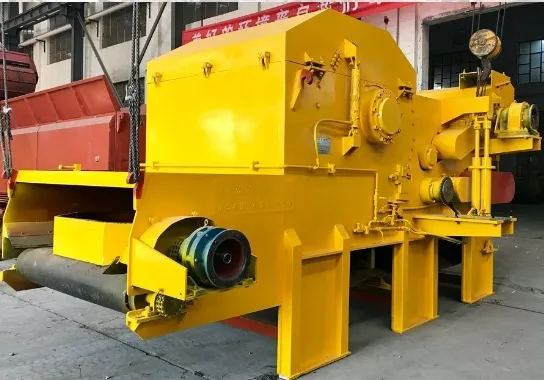

Diesel Engine 10-20ton/Hour Capacity Drum Wood Crusher Chipper Shredder
| US$36,000.00-88,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
1300
Automatic Grade
Full-Automatic
Warranty
2 Years
Engine
430HP 480HP
Feed in Conveyor Length
6m or as Required
Discharge Conveyor Length
7.5m Length
Mobile
6 Tyres
Transport Package
Plywood
Specification
9m*2.4m*2.5m
Trademark
HX
Origin
China
HS Code
8465960000
Packaging & Delivery
Package Size
900.00cm * 260.00cm * 260.00cm
Package Gross Weight
19000.000kg
Product Description
The main engine feed tank is six meters length, so during transportation and installation, the main engine is equipped with double axleThe tyre is equipped with a traction frame and a steering tyre behind it, can be hauled by truck or tractor.
The machine can be installed directly on the ground .
The feed in conveyor is driven by hydraulic motor, and the hydraulic motor can be adjusted by manual valves
The feed speed can be fast and slow, the structure is strong, the wear resistance is high, the inlet diameter is large, and the feeding is more
Smooth.
The chipper is composed of frame, rotor, feed conveyor and hydraulic control system,diesel engine
Parameters:
| Diesel engine power | 480HP or 430HP |
| Feed in width and length | 1300mm width,6m length |
| Rotor | 4,6,or 8 pcs blades rotor,rotor diameter:800mm |
| Mobile system | 6 tyre- mobile |
| Feed in size | 1300mm*600mm |
| estimated capacity per hour | 12-18 tons wood chip |
| discharge conveyor | 7.5m length foldable conveyor |
| Screen hole size | as required |
Pictures
Workshop manufacturing
Clients visiting
Our office
