4FT Plywood Round Log Debarker Machine

Product Description

4FT Plywood Round Log Debarker Machine
Log rounding debarker is used for peeling off the log skin and make the raw log to be round,after debarking it will be easy for the peeling lathes to peel and the veneer thickness will be even without big variation,also can increase the peeling lathes working life.One set debarker can work with two sets of peeling lathes, it can save labor.
Technical Parameters:

Machine name	Hydraulic wood rounding debarker with chipper
Machine model	RBD1400/F
Max. Wood log diameter	Ø600mm
Rollers diameter	Ø150mm(Thicker chroming harden)
Motors (In total 36.5Kw, Made in JiangSu)	Single roller	7.5Kw
	Double roller	11Kw
	Hydraulic oil pump	5.5Kw
	Wood chipper	11Kw
Machine overall dimension	4000 x 2000 x 1500mm
Machine weight	4000Kgs
Main features	1.Inside/outside L shape back pull husk 2.Harden harden chroming rollers 3.Automatic log push design 4.Include two sets of the wood chips conveyor

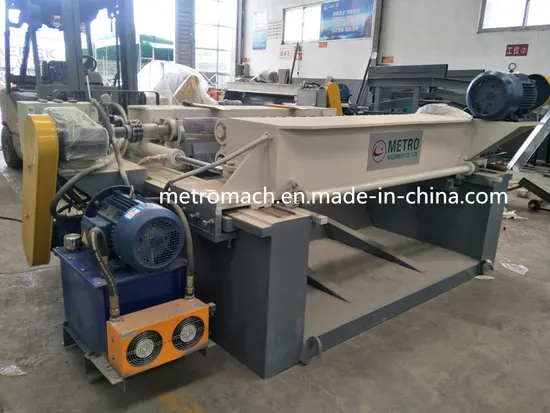

Delivery Pictures:


pre-sale service: 1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.
