China factory Price drilling and milling machine ZX6350D lifting milling machine
Basic Info.
Model NO.
ZX6350D
Structure
Mill Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001, CO
Condition
New
Table Size
1120X280mm
Longitudinal Travel
630mm
Cross Travel
280/240mm
Vertical Travel
430mm
Vertical Milling Capacity
32mm
Face Milling Capacity
120mm
Drilling Capacity
50mm
Spindle Taper
Mt4
Spindle Motor
1.5/0.85kw
Product
China factory Price drilling and milling machine Z
T Slot number/width/pitch
5/14/50mm
Vertical milling spindle travel
120mm
Spindle nose to table surface
100-530mm
Travel of movable arm
360mm
Vertical milling spindle taper
MT4
Transport Package
Plywood Case
Specification
1400x1300x2100mm
Trademark
Luzhong Machine Tool
Origin
China
HS Code
8459590000
Production Capacity
500 Sets Per Month
Packaging & Delivery
Package Size
140.00cm * 130.00cm * 210.00cm
Package Gross Weight
1400.000kg
Product Description

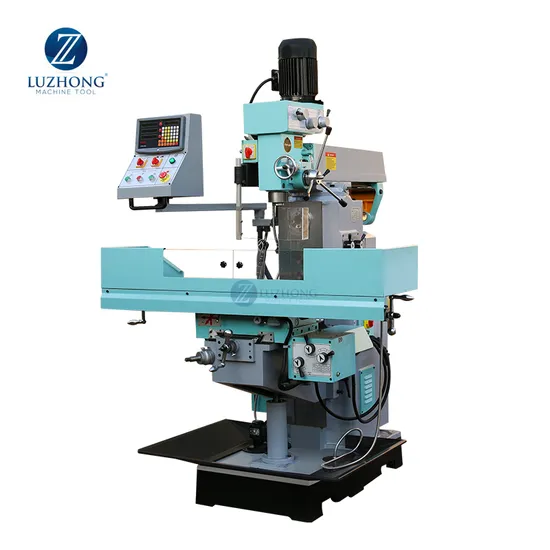

China factory Price drilling and milling machine ZX6350D lifting milling machine Product DescriptionDetailed Photos
Product Parameters
The main performance characteristics:
1.Gear transmission for vertical/hozizontal milling head
2.ZX6350C :X axis auto feed,Y/Z axis manual feed
ZX6350D :X/Y axis auto feed,Z axis manual feed
3.Headstock swivel +/-45°
4.Guide way with sparking quenching
Product main technical parameters:
| Specifications | Units | ZX6350D |
| Table size | mm | 1120x280 |
| T Slot number/width/pitch | mm | 5/14/50 |
| Longitudinal travel | mm | 630 |
| Cross travel | mm | 240 |
| Vertical travel | mm | 430 |
| Vertical milling capacity | mm | 32 |
| Face milling capacity | mm | 120 |
| Drilling capacity | mm | 50 |
| Longitudinal feeds range | Mm/min | 15.1-266.5 ,6steps |
| Cross feeds range | Mm/min | 15.1-266.5 ,6steps |
| Vertical milling spindle travel | mm | 120 |
| Spindle nose to table surface | mm | 100-530 |
| Travel of movable arm | mm | 360 |
| Vertical milling spindle taper | MT4 | |
| Horizontal milling spindle taper | MT4 | |
| Vertical milling spindle speeds | R/min | 115-1750 ,8 steps |
| Horizontal milling spindle speeds | R/min | 32-1320 ,12 steps |
| Vertical milling motor | kw | 1.5/0.85 |
| Main motor | kw | 2.0/2.4 |
| Overall dimensions | mm | 1400x1300x2100 |
| Net weight | Kg | 1300 |
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
