Professional Paper Egg Tray Making Machine Price/Egg Tray Machine Production Line

Product Description

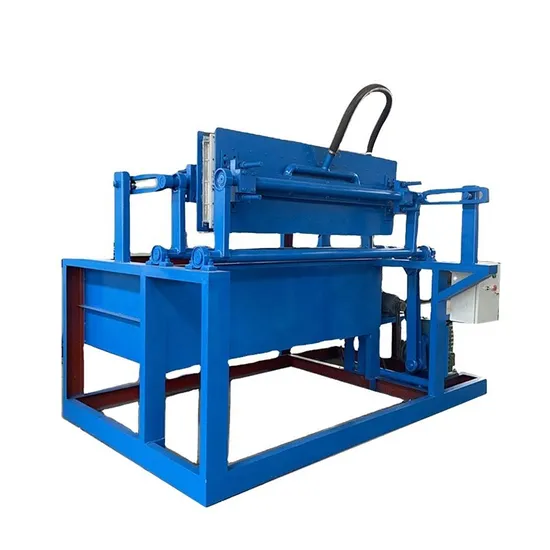

Product Description Automatic Paper Egg Tray Making Machine Automatic reciprocating forming machine, with automatic drying line, suitable for the production of single or diversified products, more flexible. It can make the inner packaging of egg trays, egg boxes, fruit trays, cup holders, mechanical trays, handicrafts and industrial products by changing the mold; One machine can even produce two or more different products at the same time.

Egg tray machine technical parameter
MODEL	CAPACITY/ (hour)	POWER/(Kw)	DRYING METHOD	REMARKS
YZ-F1000	1000	34	Suggest air drying
YZ-F1500	1500	38	Optional drying	Drying power: 18kW
YZ-4X2000	2200	54	Suggest air drying
YZ-4X2500	3000	57	Optional drying	Drying power: 18kW
YZ-8X4000	4000	70	Optional drying	Drying power: 18kW
YZ-8X5000	5000	129	Drying	Optional multi-layer metal drying line
YZ-8X6000	6000	150	Drying	Optional multi-layer metal drying line
YZ-12X6000	6000	155	Drying	Optional multi-layer metal drying line
YZ-12X7000	7000	165	Drying	Multi-layer metal drying line
YZ-GB1000	2000	38	Suggest air drying	Pulp shoe brace or other

Fuel consumption
Natural gas	18~22 m³ /h
LPG	7~8 m³ /h
Diesel	16~20kg/h
Heavy oil	18~21m³/h
Steam	0.4~0.45ton/h
Wood	70~80kg/h
Coal	50~60kg/h

Features for Automatic Egg Tray Making Machine 1. The forming transmission adopts a precision deceleration servo motor to ensure smooth and fast operation.
2. Absolute value encoder is used to achieve precise calibration.
3. Adopting a bronze cast dynamic and static ring structure, it is more suitable for the product dehydration process.
4. Adopting a mechanical structure to ensure even closure on both sides of the mold.
5. Large capacity; Low moisture content; Save drying costs. Raw materail :
1. Waste paper :Such as cardboard, cardboard boxesnewspapers, paper mills and other waste paper
2.Pulp board :Pulp board made of straw, bagasse, bamboo, woodand other raw materials
3.Plant Fibre :Palm fiber, straw, sugar cane and so onFinished product: All kinds of egg tray , egg box ,fruit tray, winetray, cup tray ,shoe tray ect.

Main process:
1.Paper Pulp Making System: It is mainly comprised of hydrapulper, pulp pump, multi-function refiner machine, blender, control cabinet, etc.
2.Egg tray making machine : This part mainly is the egg tray forming machine.We could produce the forming mould and transfer mould based on our customers request.
3.Drying machine : When the egg tray be made over by the forming machine, the egg tray will be put on the drying line by transfer mould,they will across the drying channel, then you can get the dry tray!
Finished product:
All kinds of egg tray , egg box ,fruit tray, wine tray, cup tray ,shoe tray ect.
Multiple molds:
1. Professional 1V1 design, our design team will design the required product dimensions and layout according to your plan. 2. Welcome to visit our factory and our cooperative manufacturers. 3. We provide one-stop services, including project design, quality control, installation, and after-sales service. 4. Simultaneously provide technical training and comprehensive customer support to all customers.
