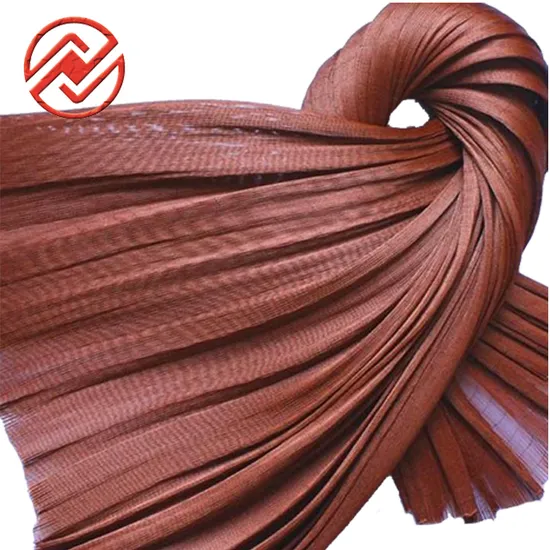

Nylon6 Polyamide Dipped Tire Cord Fabric for Tire
| US$4,000.00-5,000.00 | 10 Tons (MOQ) |
Basic Info.
Model NO.
Tire cord fabric
Weight
20-260GSM
Type
Tyre Cord Fabric
Technics
Woven
Pattern
Plain Dyed
Style
Plain
Fiber Length
Long Fiber
Model No.
1000d/1,1000d/2,1000d/3,1300d/2,1500d/1,1500d/2+3
Structure
Fabric with Rubber Form
DIP Pick up
4.5+-1.0
Variation Coefficient of Elongation at B
7.5%
Variation Coefficient of Breaking Streng
5%
Transport Package
in Rolls
Specification
1000d/1,1000d/2,1000d/3,1300D/2,1500d/1,1500d/2+3
Trademark
Shuanghe
Origin
China
HS Code
5902101000
Production Capacity
10000mt/Month
Product Description
Dipping tire fabrics for tire
Nylon 6 dipping tire fabrics have the characteristics of high strength, fatigue resistance, impact resistance and high adhesion strength.
1. Dipping tire fabrics with multi-folded yarn are appropriate for the production of engineering tire, agricultural automobile, tractor and tricycle tire and air bag restraint system.
2. Dipping tire fabrics with single yarn are widely used in the production of tire of motor, bicycle, electrocar and moped.
Technical Specification
1170dtex(1050D) dipping tire fabrics
| Item & Unit\level\linear density | 700dtex × (630D/1) | |||
| Superior quality | First-level | Qualified | ||
| Breaking strength ≥ | N/root | 48 | 46 | 44 |
| 17N(1.73kg)rated elongation | % | 7.5±1.0 | 7.5±1.5 | 7.5±1.5 |
| Adhesive strength≥ | N/cm | 43 | 39 | 35 |
| Attached cement quantity | % | 4.2±1.0 | 4.2±1.2 | 4.2±1.5 |
| Breaking strength CV | % | 6.0 | 7.0 | 8.0 |
| Breaking elongation CV | % | 7.5 | 9.0 | 11.0 |
| Breaking elongation | % | 19.0±2.0 | 19.0±2.0 | 19.0±2.0 |
| Moisture content ≤ | % | 0.8 | 0.8 | 0.8 |
| Twist Z | twist/cm | 260±15 | 260±15 | 260±15 |
| Diameter | mm | 0.23±0.03 | 0.23±0.03 | 0.23±0.03 |
| Dry heat shrinkage ≤ | % | 4.0 | 4.0 | 4.0 |
| Item & Unit\levle\linear density | 1170dtex × 1(1050D/1) | |||
| Superior quality | First-level | Qualified | ||
| Breaking strength≥ | N/root | 92 | 87 | 82 |
| 33N rated elongation | % | 7.0±0.8 | 7.0±1.0 | 7.0±1.5 |
| Adhesive strength≥ | N/cm | 60 | 55 | 50 |
| Attached cement quantity | % | 4.2±0.8 | 4.2±1.0 | 4.2±1.0 |
| Breaking strength CV≤ | % | 4.5 | 6 | 7.5 |
| Breaking elongation CV≤ | % | 5.5 | 7.5 | 9.5 |
| Breaking elongation | % | 20±2 | 20±2 | 20±2 |
| Moisture content≤ | % | 0.8 | 0.8 | 0.8 |
| Twist | twist/cm | 200±15 | 200±15 | 200±15 |
| Dry heat shrinkage≤ | % | 4.0 | 4.0 | 4.0 |
Nylon"6" dipping tire fabrics
| Item & Unit \ level \ variety | 1870dtex × 1 | ||||
| Superior quality | First-level | Qualified | |||
| Breaking strength ≥ | N/root | 132 | 127 | 123 | |
| Definite elongation | 44N | % | 8±0.8 | 8±1.0 | 8±1.0 |
| 33N | -- | -- | -- | ||
| 22.6N | -- | -- | -- | ||
| Adhesive strength ≥ | N/cm | 83 | 78 | 74 | |
| Breaking strength irregularity ≤ | % | 3.5 | 4.0 | 5.0 | |
| Breaking elongation irregularity ≤ | 5.5 | 6.0 | 7.0 | ||
| Attached cement content | 4.20±1.00 | 4.20±1.20 | 4.20±1.20 | ||
| Breaking elongation | 20.0±2.0 | 20.0±2.0 | 20.0±2.0 | ||
| Moisture content ≤ | % | 0.8 | 0.8 | 0.8 | |
| Diameter | mm | 0.5±0.03 | 0.5±0.03 | 0.5±0.03 | |
| Twist | First twist(z) | twist/cm | 160±10 | 160±10 | 160±10 |
| Repeated twist(s) | |||||
| Dry heat shrinkage ≤ | % | 4.0 | 4.0 | 4.0 | |
| Item & Unit\level\variety | 1400dtex × 1 | 930dtex × 1 | ||||||
| Superior quality | First-level | Qualified | Superior quality | First-level | Qualified | |||
| Breaking strength ≥ | N/root | 103 | 98 | 93 | 69 | 67 | 65 | |
| Definite elongation | 44N | % | -- | -- | -- | -- | -- | -- |
| 33N | 7±0.8 | 7±1.0 | 7±1.0 | -- | -- | -- | ||
| 22.6N | -- | -- | -- | 7.5±0.8 | 7.5±1.0 | 7.5±1.0 | ||
| Adhesive strength ≥ | N/cm | 69 | 64 | 59 | 54 | 49 | 44 | |
| Breaking strength irregularity ≤ | % | 3.5 | 4.0 | 5.0 | 4.0 | 4.5 | 5.0 | |
| Breaking elongation irregularity ≤ | 5.5 | 6.0 | 7.0 | 6.0 | 6.5 | 7.0 | ||
| Attached mess content | 4.20±1.00 | 4.20±1.20 | 4.20±1.20 | 4.20±1.00 | 4.20±1.20 | 4.20±1.20 | ||
| Breaking elongation | 20.0±2.0 | 20.0±2.0 | 20.0±2.0 | 20.0±2.0 | 20.0±2.0 | 20.0±2.0 | ||
| Moisture content ≤ | % | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
| Diameter | mm | 0.43±0.03 | 0.43±0.03 | 0.43±0.03 | 0.32±0.03 | 0.32±0.03 | 0.32±0.03 | |
| Twist | First twist(z) | twist/cm | 190±10 | 190±10 | 190±10 | 210±15 | 210±15 | 210±15 |
| Repeated twist(s) | ||||||||
| Dry heat shrinkage ≤ | % | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | 4.0 | |
| Item | Unit | Specification index | ||||||
| dtex/ply | 2100/2 | 1870/2 | ||||||
| level | Superior quality | First-level | Qualified | Superior quality | First-level | Qualified | ||
| Breaking strength ≥ | N/root | 313.6 | 303.8 | 294.0 | 279.3 | 269.5 | 259.7 | |
| 100N | % | 9.5±0.5 | 9.5±0.8 | 9.5±1.0 | -- | -- | -- | |
| 88.2N | Rated load | -- | -- | -- | 9.5±0.5 | 9.5±0.8 | 9.5±1.0 | |
| 66.6N | Elongation | -- | -- | -- | -- | -- | -- | |
| 44.1 | -- | -- | -- | -- | -- | -- | ||
| Adhesive strength ≥ | N/cm | 176.4 | 166.6 | 156.8 | 166.6 | 156.8 | 147.0 | |
| Breaking strength CV | % | 3.8 | 5.0 | 6.3 | 3.8 | 5.0 | 6.3 | |
| Breaking elongation CV | % | 6.3 | 7.5 | 8.8 | 6.3 | 7.5 | 8.8 | |
| Attached mess content | % | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | |
| Breaking elongation | % | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | |
| Diameter | mm | 0.78±0.03 | 0.78±0.04 | 0.78±0.05 | 0.78±0.03 | 0.78±0.04 | 0.78±0.05 | |
| Twist | First twist(z) | twist/cm | 320±15 | 320±15 | 320±15 | 320±15 | 320±15 | 320±15 |
| Repeated twist(s) | ||||||||
| Dry heat shrinkage | % | 6.0 | 6.5 | 7.5 | 6.0 | 6.5 | 7.5 | |
| Moisture content | % | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
| Item | Unit | Specification index | ||||||
| dtex/ply | 1400/3 | 1400/2 | ||||||
| level | Superior quality | First-level | Qualified | Superior quality | First-level | Qualified | ||
| Breaking strength ≥ | N/root | 313.6 | 303.8 | 294.0 | 215.6 | 205.8 | 196.0 | |
| 100N | % | 9.5±0.5 | 9.5±0.8 | 9.5±1.0 | -- | -- | -- | |
| 88.2N | Rated load | -- | -- | -- | -- | -- | -- | |
| 66.6N | Elongation | -- | -- | -- | 9.5±0.5 | 9.5±0.8 | 9.5±1.0 | |
| 44.1 | -- | -- | -- | -- | -- | -- | ||
| Adhesive strength ≥ | N/cm | 176.4 | 166.6 | 156.8 | 147.0 | 137.2 | 127.4 | |
| Breaking strength CV | % | 3.8 | 5.0 | 6.3 | 3.8 | 5.0 | 6.3 | |
| Breaking elongation CV | % | 6.3 | 7.5 | 8.8 | 6.3 | 7.5 | 8.8 | |
| Attached mess content | % | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | 4.5±1.0 | |
| Breaking elongation | % | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | 23.0±2.0 | |
| Diameter | mm | 0.78±0.03 | 0.78±0.04 | 0.78±0.05 | 0.65±0.03 | 0.65±0.04 | 0.65±0.05 | |
| twist | First twist(z) | twist/cm | 320±15 | 320±15 | 320±15 | 370±15 | 370±15 | 370±15 |
| Repeated twist(s) | ||||||||
| Dry heat shrinkage | % | 6.0 | 6.5 | 7.5 | 6.0 | 6.5 | 7.5 | |
| Moisture content | % | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 | |
This only the common size, the other size also can be produced as the requirement of costomer.
Applications: Rubber Hose, Tyre, Conveyor Belt.
Q1:Which kind of payment terms do you accept?
For small order,you can pay by T/T,Western Union or Paypal,nomal order by T/T to our company account
Q2:Can you give me a discount price?
Surely,It depend on your qty
Q3:How can i get a sample?
free samples is available,but freight charges will be at your account and the charges will be return to you or deduct from your order in the future.
Q4: How to confirm the Product Quality before placing orders?
A:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. You can send us your product specifications and requests,we will manufacture the products according to your requests.
Q5:How do you treat quality complaint?
A:First of all, our quality control will reduce the quality problem to near zero. If there is a real quality problem caused by us, we will send you free goods for replacement or refund your loss.
