Complete Plant Project Livestock Poultry Chicken Feed Pellet Mill Machine From China

Product Description

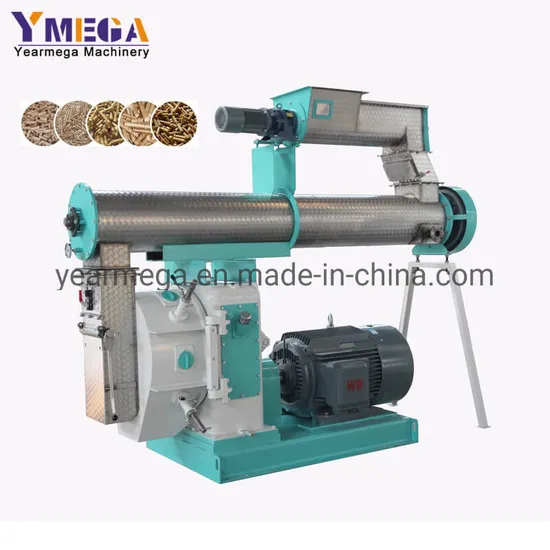

Complete Plant Project Livestock and Chicken Feed Pellet Mill From China
Introduction of Livestock and Chicken Feed Pellet Mill
1.Widely applied product with mature technology .
2.The main driving of the chicken feed pellet mill adopts high-precision gear drive, so that the output is improved by about 20% when compared with that of belt drive.
3.Imported high-quality bearing and oil seal are adopted to ensure efficient, stable and low-noise whole machine operation . the granulating room is equipped with air suction temperature reducing system .
4.The feeder of the feed pelletizer adopts variable-frequency and variable-speed motor to ensure the quality of discharged particles .
5.Ring dies with multiple kinds of bore diameters are optional . and high-quality craft ring dies are adopted, so that the service life is long. The discharged particles are smooth and the quality is high .
6.International advanced compensation type snakelike spring coupling has the propertied of novel and compact structure, high safety, low noise and low fault rate.
7.Plus-size conditioner and jacket type conditioner of the chicken feed pellet mill are selectable to strength the particle conditioning effect.

Main features of Livestock and Chicken Feed Pellet Mill
1. High efficiency and good performance
Stable and classical gear driving, non-slipping, it can really ensure the production output. Low noise, optimized ring die, achieve to maximum output.
2. Hygiene and safety
Product certified standard design and available stainless conditioner to make safe feed for animals. And the conditioner could precook material and it has germicidal function.
3. Flexible production and multi-functional
Pellet range is wide Φ2mm-Φ12mm, it is multi-functional used for different animals such as chicken, duck, livestock, different poultry and livestock.
4. Easy operation
The Chicken Feed Pellet Mill auto-lubrication system and die & roller lifting device,save labor, and with automatic control cabinet which could operate easily and automatically.
Main parameters of Livestock and Chicken Feed Pellet Mill

Model	SZLH320	SZLH350	SZLH400	SZLH420	SZLH508
Capacity	2-5T/H	1.5-8T/H	2-10T/H	3-12T/H	4-20T/H
Main Motor Power	37KW	55KW	75/90KW	110KW	132/160KW
Screw Feeder Power	0.55KW	0.75KW	0.75KW	1.5KW	1.5KW
Conditioner Power	2.2KW	2.2KW	2.2KW	5.5KW	7.5KW
Ring die inner diameter	320mm	350mm	400mm	420mm	508mm
Ring die rotational speed	305PRM	336PRM	307PRM	287PRM	287PRM
Roller outer diameter	140mm	165mm	190mm	206mm	/
Dimension	2300*1000*2100 mm	3200*1100*1700 mm	3200*1300*1900 mm	3500*1300*2800 mm	3500*1500*2900mm

Pellets shaping rate: ≥95%
Pellets stability in water: ≥20Min
Noise: ≤86dB(A) ≤90dB(A)
Roller working temperature: ≤85ºC
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150ºC
Raw Materials for animal feed making line
The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal etc.
Animal feed production line flow as following:
Crushing proecss-----Mixing process-----Pelletizing process----Cooling Process-----Packing Process
Packing and shipping
1. First the Chicken Feed Pellet Mill would be covered by plastic, and then packed in export wooden case.
2. we will provide the machine as quickly as possible after the cusomer playing the order, also with high capacity. we will track the shipping for customer whenever they need.
`
Our Services
1. We will give detailed introduction of the Chicken Feed Pellet Mill according to the client capacity requirement.
2. Share any information about the animal feed pellet machine that the clients need, like detaield pictures, video,etc
3. Design full animal feed pellet line for client.
4. Provide formulation as reference and help the clients to make suitable feed formulation.
5. Give detailed instruction manual and video to the customers.
