Plastic Film Tensile Strength Test Break test ASTM D882 tensile tester instrument

Product Details

Product Description

Product Description
Product Description

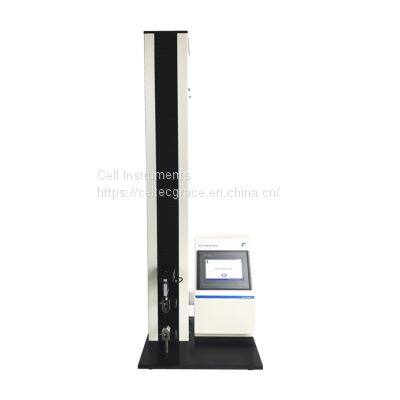

Tensile Tester TST-01 is used to test the mechanical properties of various materials such as stretching, tension, tearing,peeling, deformation, seal strength, adhesiveness, puncture force, etc. It is suitable for plastic films, sheets, compositematerials, paper, rubber, textiles, medical packaging, etc. It's specially designed for plastic film testing by standard ASTMD882.
Bench Top Tensile Tester Standards
ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113
Bench top tensile tester TST-01 features
7 inch TFT touch screen makes parameter setting and test operation easy and convenient.
PLC programmable logic controller realizes precise control of the driving system and the overall performance of the instrument.
Precision ball screw for accurate speed and displacement.
Test speed is adjustable.
Multiple test items are available.
Multiple fixtures available for other types of pulling and compression tests.
Limiting device and automatic returning function ensure safe operation.
microprinter(optional)
Bench Top Tensile Tester Technical Specifications

Test Range	0-500N (Standard, 50N,100N,200N,1000N are optional)
Speed	1-500 mm/min
Accuracy	0.5% F.S.
Effective stroke	800mm
