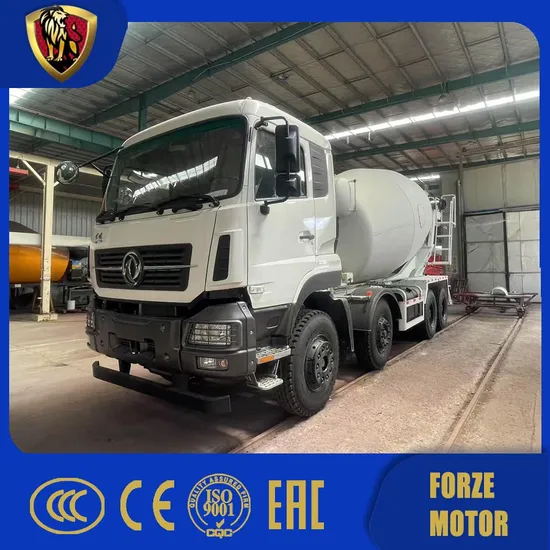

Super-Above New 8m3 Concrete Mixer Truck 8X4 Concrete Mixing Truck 6X4 Cement Tank Mixing Truck 10to 15 Cubic Meters Concrete Mixer Truck
Basic Info.
Certification
ISO9000, CCC, TS16949
Transmission Type
Manual
Emission Standard
Euro3
Displacement
9
Payload
20T
Fuel
Diesel
Drive Mode
8x4
Maximum Horsepower
300-400hp
Condition
New
Product Name
6cbm Mixer Truck
Chassis Brand
Dongfeng or Optional
Loading Capacity
30-35 T
Steering
Left/Right Hand Drive
Engine
Commins
Commins
12 Mt
Tire Specification
12.00-20/11.00r20
Tire Quantity
12+1PCS
Drum Mix Volume
6-16 Cbm
Reducer
PMP/Eaton
Hydraulic Pump
PMP/Eaton
Hydraulic Motor
PMP/Eaton
Water Supply System
300 L, Air Pressure
Export Markets
South America, Southeast Asia/ Mideastafrica. Dome
Transport Package
Naked Packing After Waxing
Specification
10950× 2500× 3990mm
Origin
China
Production Capacity
30000pices/Year
Packaging & Delivery
Package Size
1195.00cm * 250.00cm * 400.00cm
Package Gross Weight
14500.000kg
Product Description
Product DescriptionConcrete mixer truck also named cement mixer mobile truck which is used for transporting mixing concrete to the construction site, mixing station. Concrete mixer truck is composed of the chassis, mixer drum, hydraulic system, reducer and radiator, which brand could be imported or Chinese top one. The mixer drum maintains the agitation and turning until delivery during the transportation which cubage could be from 2cbm to 16cbm.
Product Parameters
| Vehicle Description | ||
| Overall dimension | 10950×2500×3990 | |
| GVW | 31000 kg | |
| Curb weight | 15900 kg | |
| Chassis brand | DONGFENG | |
| Traction type | 8*4, left hand drive | |
| Chassis Description | ||
| Model | DFL5310 | |
| Cab | Sleeper cab, forward control type, low roof, new face, all welded steel cab, electrical cab tilting, front and rear mechanical cab suspension, adjustable Driver's seat, air conditioning system, electrical windows, central lock. | |
| Wheelbase | 1850+3400+1350mm | |
| Tire specification | 12.00-20/12.00R20 | |
| Tire quantity | 12+1 units | |
| Engine | Engine model | dCi385-40 |
| Emission standard | Euro 3 | |
| Exhaust/output | 8900ml/283kw | |
| Horse power | 375hp | |
| Gear box | Model | 9JS150T-B |
| Brake system | Full air brake system, split pneumatic circuit; parking spring brake acting on rear axles; exhaust brake. | |
| Axle | Front | 7T-Elliot type, I beam section |
| Rear | Single reduction, tandem axle, with axle lock, ratio 5.143.13T-Hub reduction, tandem axle, with axle lock and wheel lock, ratio 4.875 | |
| Suspension | Front | 10- Leaf spring with shock absorber |
| Rear | 13-Leaf spring | |
| Battery | Voltage | 12V*2 |
| Capacity | 165A.h*2 | |
| Fuel tanker | Type | Aluminum fuel tank with lockable cap |
| Capacity | 350 L | |
