China Alva Woodworking Machinery Industry High-Speed 8FT Rotary Cutting Machine /Veneer Peeling Machine Has High Work Efficiency

Product Description

1.Product brief introduction
The 8 feet CNC veneer peeling machine is used to process wood segments of a certain length and diameter into continuous veneer strips for the production of plywood, fine wood upper boards and other wood-based panel veneers. The main technical parameters of the rotary cutting machine are that it can be processed Maximum length and diameter of wood segments.
8 feet high-performance veneer peeling machine is used for peel the wood into face veneers. Face veneers can be laminated on the core veneers, to make the plywood better. Spindle-less plywood veneer peeling machine is most welcomed among plywood machinery.Heavy duty veneer peeling machine has high configuration, to guarantee the veneer quality. This model is suitable for hard wood, such as Eucalyptus,etc.
8 feet veneer peeling machine is fully automatic at high speed,You can set the speed to 40M/Min,50M/Min,60M/Min,70M/Min,80M/Min.many customers choose automatic veneer peeling machine to do high-speed automatic one support two veneer peeling production line,because it has the advantages of being dural power CNC,computer adjustment knife seam hydraulic pressure install knife,push back CNC.
CNC single spindle and without spindle combined peeling machine not only improves the quality and precision of the production of veneer, but also greatly improves the production efficiency and the degree of automation of the whole machine. The 8 feet veneer peeling machine is one of the main equipment for the production of plywood.
Rotary cutting machine is divided into clamping rotary cutting machine and no clamping rotary cutting machine,one of them is the clipping machine included CNC spindle and vertical spindle,each of these rotary cutting machines has its own advantages. If you want to know more about it, you can contact us.
2.Product parameter list

Model	ALVA-VP-8FT
Max peeling length	2600mm
Max cutting diameter	600mm
Thickness range	0.3mm-1.2mm/1.2-3.6
Peeling knife	2900*180*16mm
Cutting knife	2800*140*12.7mm
Core diameter of remaining	32-40mm
Diameter of guide screw	125mm/2700mm
Single roller motor	90mm
Double roller motor &Power of Single roller	2*11kw+2*11kw
Feeding motor	11kw servo motor
Cutting motor	4kw servo motor
Conveyor motor	4kw
Total power	48.7kw
Voltage	380V /440V/415V / customized
Linear speed of host machine	40-80M/miute(adjustable)
Weight diameter	10000kgs
Overall dimension	6000*2000*1600mm

3.Product Advantage:
1)The rotary cutting board is combined into one, which improves the utilization rate of the site and labor. It adopts advanced high-strength wear-resistant screw and screw drive and multi-functional numerical control box, which is easy to operate and automatically cut skin, low maintenance rate, labor saving and material saving. And make the precision of the veneer finger quality stable and reliable. Suitable for miscellaneous wood, eucalyptus, maple, pine, etc.
2)The guide rail part make by high temperature quenching and CNC cutting method,increases the hardness and ensure guide rail has unlimited service life,
Avoid the wear problem like ordinary screw, and ensure machine operation no deviation, veneer width and thickness are accurate,produce high quality veneer.
3)All peeling rollers have been quenched and electroplating,increases the peeling roller hardness and sevice life.
4)The roller pattern have different type.We will choose the right roller pattern acoording to clients differen wood species.
5)Our electric is international famous brand Siemens.

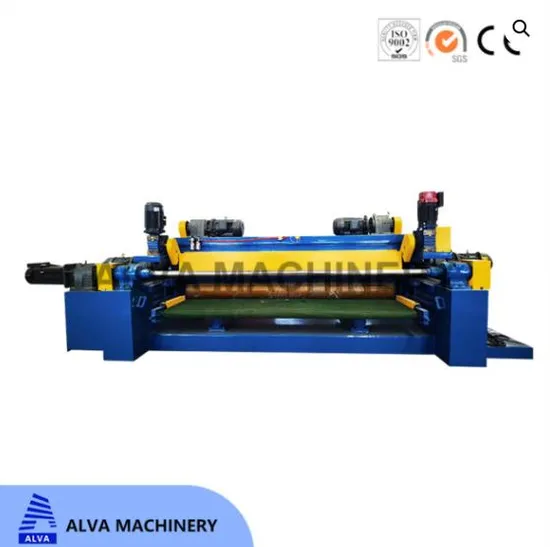

4.Product picture

5.Main features
1) Veneer peeling machine without wood clip has rollers at both front and rear side, with the force from motors, the wood inside will be peeled layer by layer. It's a high efficiency and high precision wood peeling equipment.
2) Feeder roller steps forward according to the calculated curve, make sure even veneer thickness.
3) High accuracy of wood radius calculation.
