Vertcial Drilling Machinez Z5040 Z5040L Z5040A Z5040EL
| US$2,500.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5040 Z5040L Z5040A Z5040EL
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Artificial
Number of Shaft
0
Hole Diameter
151-200mm
Automatic Grade
Automatic
Precision
Precision
Certification
CE, ISO 9001, CE, ISO 9001
Condition
New, New
Application
Metal
Movement Method
Point to Point Control
After-Sales Service
Online Support
Process Usage
Metal Drilling Taping
Control Method
Manual
Numerical Control
Manual
Processing Precision
Without
Performance Classification
Metal
Max. Driiling Capacity
40mm
Max. Taping Capacity
M27
Max.Spindel Travel
180mm
Spindel Speed
50-1450rpm
Column Diameter
160mm
Motor Power
2.2kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
845929000
Production Capacity
300
Product Description
Vertcial Drilling Machine FEATURES:
2 speed strong power motor, 18 steps speed which can improve the machining accuracy and producing efficiency.
2 steps power feed 0.1-0.2mm/rev
Drilling, tapping, boring, reaming;
Automatic tools ejectors

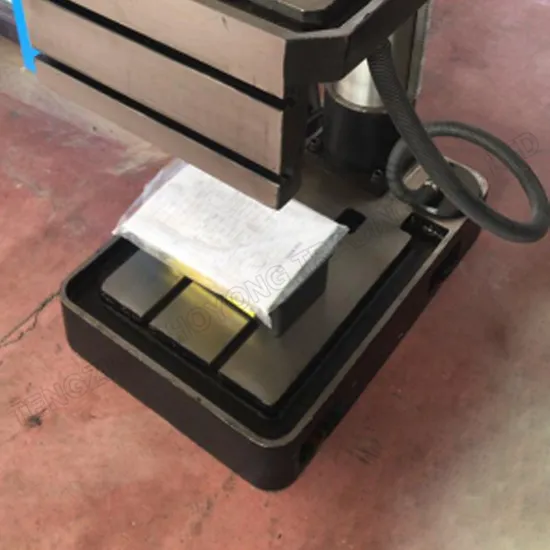

Strong column, table can rotary and tilting, Gear drive, lower noise;
| Model | Unit | Z5040L |
| Max. Drilling dia. | mm | 40 |
| Max. Tapping dia. | mm | M27 |
| Column dia | mm | 160 |
| Max. Spindle shaft travel | mm | 180 |
| The spindle axis distance to column | no | 360 |
| Max.distance spindle nose up to table | R/min | 590 |
| Max.distance spindle nose up to base | mm | 1175 |
| Spindle morse | MT4 | |
| Spindle speed | R/min | 50-1450 |
| Spindle speed steps | 12 | |
| Table size | mm | 560X560 |
| Overall height | mm | 2330 |
| Main motor | w | 2200 |
| The gross | kg | 470 |
