150-300mm Stone / Rock Processing Jaw / Hammer / Cone Crusher for Sale
Basic Info.
Model NO.
HTJC430
Drive
Hydraulic
Feed Size
150mm-299mm
Jaw Plate Material
Carbon Steel
Object
Basalt, Gold Ore, Granite, Limestone
Engine
Gasoline, Diesel
Travel Speed
0-3 (Km/H)
After-Sales Service
1 Year Free Part
Package Gross Weight
1800 Kg
Transport Package
Packing in Wooden Cases or Iron Racks
Specification
3200*1000*1600 mm
Trademark
HighTop
Origin
Shandong, China
Production Capacity
500
Packaging & Delivery
Package Size
210.00cm * 100.00cm * 175.00cm
Package Gross Weight
1800.000kg
Product Description
Product DescriptionHTJC430 High-Efficiency Jaw Crusher for Robust Crushing Performance
This jaw crusher is designed with advanced crushing technology, offering high performance in processing a variety of materials.
t is ideal for primary crushing in industries such as mining, construction, and metallurgy. The compact structure ensures stable
operation, making it a reliable choice for handling large blocks of ore and providing a high output while minimizing maintenance
costs.

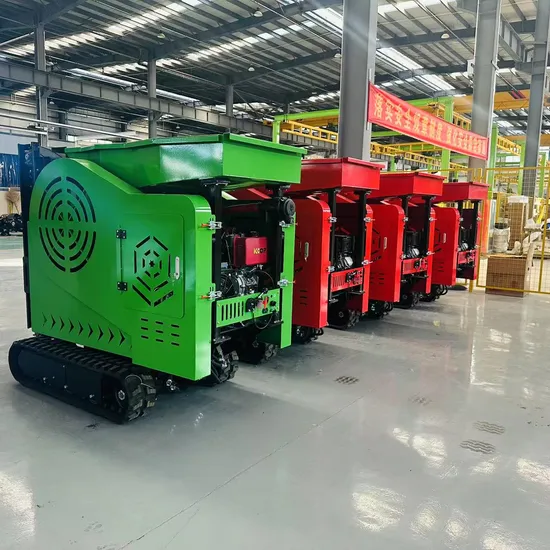

Detailed Photos
Product Parameters
| Equipment Parameters |
| Working Dimensions (mm): 3200×1000×1600 |
| Internal Width of Stand (mm): 380 |
| Transport Dimensions (mm): 2150×1000×1750 |
| Overall External Width of Shield (mm): 960 |
| Track Model (mm): 180×72×41 |
| Diameter of Support Wheel (mm): 126 |
| Number of Support Wheels (sets): 6 |
| Feed Opening Dimensions (mm): 220×350 |
| Max Feed Size (mm): 200 |
| Bin Capacity (m³): 0.4 |
| Stacking Height (mm): 700-1150 |
| Feeding Conveyor (mm): 1500×500 |
| Crushed Stone Range (mm): Diameter 15-50 |
| Walking Speed (km/h): 0-3 |
| Track Specifications: Rubber Tracks |
| Production Capacity (T/h tons/hour): 2T-10T/h |
| Conveyor Belt Width (mm): 400 |
| Operating Mode and Main Accessory Parameters |
| Equipment Operation Mode: Manual Hydraulic Valve |
| Walking Mode: Hydraulic Powered Crawler |
| Walking Motor Model: 6K-395 |
| Continuous Torque (N.m): 850 |
| Hydraulic Pump Specifications: PGP5108 |
| Conveyor Motor Model: BMER-300 |
| Conveyor Lifting Mode: Manual Hydraulic Lift |
| Jaw Crusher Lubrication Mode: Grease |
| Track Tension Adjustment Mode: Mechanical |
| Power System |
| Gasoline Engine Standard: Runtong R500-V2-18HP |
| Max Output Power: 13KW/3600r/min |
| Max Output Torque: 28N.m/2500r/min |
| Fuel Tank Capacity (L): 6.5 |
| Oil Type and Quantity |
| Fuel Tank Capacity (L): Gasoline Engine 6.5L |
| Engine Oil Capacity (L): 1.0L |
| Hydraulic Oil Tank Capacity (L): 35L 32#/46# Hydraulic Oil |
| Weight: 1800KG |
