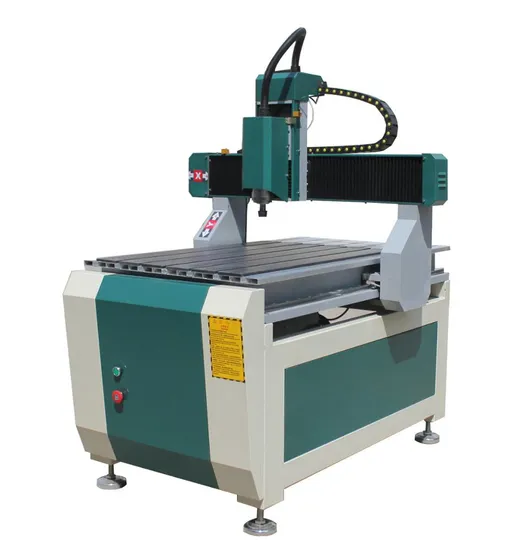

Hot Sale! Mini CNC Router CNC Engraving Machine

Product Description

Features:
1.Taiwan HIWIN high precison square guide rail, high efficiency and high precision
2.Taiwan TBI ball screw with high working precision
3.Water cooling spindle, working with high speed
4.Whole machine is welded bed structure when working it's more stable
5.Can change the parts according to your requirment
Technical parameters:
Model Jinan Zhongke 3d wood cnc router machine
X,Y,Z Working Area 600*900*100mm
X,Y,Z Traveling Positioning Accuracy ±0.03/300mm
X,Y,Z repositioning Positioning Accuracy ±0.02mm
Lathe Structure T-slot seamless welded steel bed structure
X Structure Taiwan HIWIN square guide rails
Y Structure Taiwan HIWIN square guide rails
Z Structure Taiwan TBI ball screw
Max.Speed 0-30000mm/min
Max.Working Speed 0-25000mm/min
Spindle Water cooling spindle
Spindle Speed 600-24000RPM
Working Mode Stepper motor
Working Voltage 220V380V/3ph 50HZ/60Hz for standard machine
Command Code G code(*uoo,*nc,*mmg, *plt)
Operating System Ncstudio control system
Interface USB
X,Y Working Delicacy <0.01mm
Software Type3 software or Wentai software
Running circumstance Temperature: 0°C~45°C
Relative humidity: 30%~75%
Waranty One year
Delivery time 2 weeks
Samples:
Our service:
a)warranty is 1 year
b)24 hour technical support by email or calling
c)User-friendly english manual for machine using and maintaining
d) We will send you manual and guide video in English,if you still don't know how to operate it, we can help you by phone or Whatsapp,Skype.
