Energy Saving Peach Beating Machine Kiwi Pulper

Product Description

Energy saving peach beating machine kiwi pulper
1.The equipment is mainly suitable for stoning, pulping and automatic separation of drupe fruits after pre boiling.
2.Used in beating and residues discharging of fruits and vegetables,automatic residues discharging.
3.Suitable for crushing mango,potato,kiwi fruit,strawberry,apple,pear and softening maybush,jujube.
4.Can complete peeling, pulping and separating cornel, seeds in one machine
5.It can also squeezing juice from catted green vegetables,celery,separating vegetables ribs.It is the ideal products for making jam,juice and vegetable juice.

Features
1.The machine combined the function of breaking fruit and screw juicer; it can remove the residuesitself.
2.Pulp residue automatic separation.
3.Combination of both in the production line, but also single production.
4.The material contact parts are of high quality stainless steel, with Food Hygiene.
5.The machine is multifunctional, can complete peeling, pulping, seeds removing and slag discharging in one machine
6.Made of superior quality stainless steel,approval of the national hygienic standards,safe and healthy.
7.Pulping thickness can be adjusted as your requires
How it works
Motor drive the rotor rotation with high speed,put fruit in to the mouth,the screw convey the material to the beating bar,with the beat,material being crushed.
Because of the centrifugal force,juice and flesh through the screen hole in to next beating (Screen hole according to core size),core being discharged by slag bade,so core and pulp being separated.Fruit pulp machine has single channel beater and double channel beater
When used to mango pulp making,if choose single channel beater,skin and flesh flow into buffer tank,core discharge.If choose double channel nucleation beater,first channel for removing core,second core for making pulp,full automatic separate skin,core,residue;except the transmission part,are adopt 304stainless steel,sealer is food standard rubber.

Technical parameters

Model	Name	Capacity(T/H)	Power(KW)	Dimension(mm)
DJ0.12	Single beater	0.12 (tomato)	1.5	1000*830*948
DJ2.5	Single beater	2.5 (tomato)	4.0	1450*770*1523
DJ5	Single beater	5 (tomato)	11	1900*850*1700
DJ2-4.0	Double beater	4.0 (tomato)	7.5	1535*1420*1533
MDJ2.5	Denucleated single beater	1.5 (mango) 2.5 (tomato)	4.0	1450*770*1650
MDJ2-4.0	Denucleated double beater	1.8 (mango) 4 (tomato)	7.5	1535*1420*1680
MDJ2-5.0	Denucleated double beater	3 (mango) 5 (tomato)	15.0	1935*1650*1900

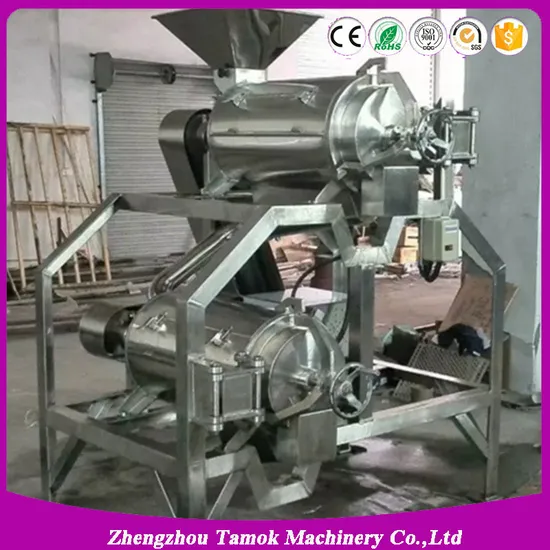

Pictures
Finished product
We also have the related fruit juice extractor,fruit&vegetable washing machine,
cutting machine,peeling machine,etc,welcome to inquiry!
