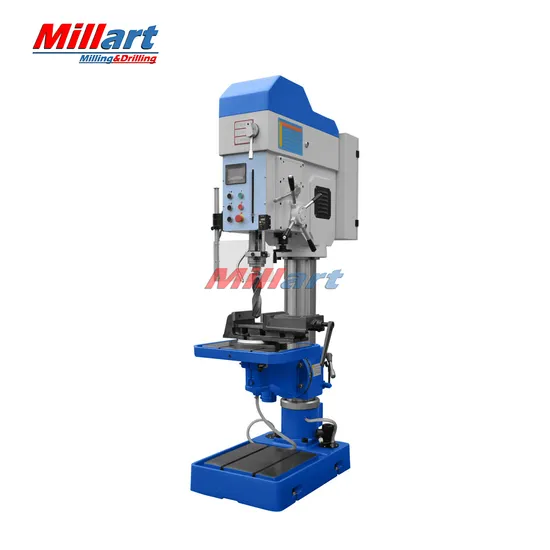

Auto Feeding Drill Press Machine Zwb5030
| US$3,000.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZWB5030
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Column Diameter
120mm
Spindle Taper
Mt4
Main Motor Power
1.5kw
Transport Package
Wood Case
Specification
CE ISO9001 RoHS
Trademark
L&T
Origin
Tengzhou China
HS Code
8459619000
Production Capacity
200 PCS/Month
Product Description
Auto Feeding Drill Press Machine ZWB5030Features:
Spindle auto feeding
Threading function
Tilting rotary table -45 to + 45 degree
Drilling depth indicator
Electronic spindle and feed rate indicator
High spindle rigidity
Threading by automatic switching of the left turns
Left turn switch
Headstock, column, table and column base made of the highest quality components
Spindle and transmission shafts of hardened and heat treated steel
Top-class electric motor
A large spindle stroke
Readable control panel
Working table automatically lifted with 360 rotation and assembly grooves
Technical paramter:
| Model | ZWB5030 |
| Max drilling capacity | 30 mm |
| Max threading capacity | M20 |
| Column diameter | 120 mm |
| Spindle stroke | 135 mm |
| Distance from spindle to column | 320 mm |
| Distance from spindle to table | 540 mm |
| Distance from spindle to base | 1110 mm |
| Spindle taper | MT4 |
| Spindle speed | 50-300/300-2500 r/min |
| Spindle feed rate | 21-213 mm/min |
| Table size | 420 x 360 mm |
| Base size | 400 x 390 mm |
| Main motor power | 1.5 kw |
| Feed motor power | 90w |
| Coolant motor power | 40 w |
| Weight | 510/560 kg |
| Packing size | 96x50x195 cm |
Standard accessories:
Drill chuck
Tapper sleeve
Wrench
Optional accessories:
Safety guard
Vice
