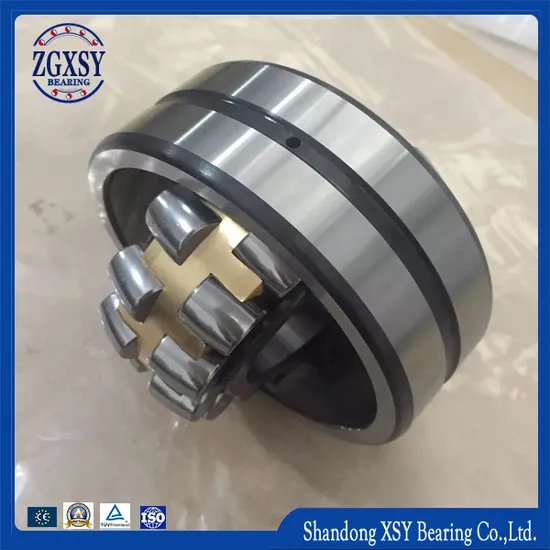

Taper Tapered Cylinderical Needle Hub Spherical Roller and Ball Bearings

Product Description

XSY Bearing Roller Bearings are designed according to the European International Standard ISO 492:2014 and American Standard AMBA. And are divided into subfamilies based on their outer diameter and height.
Inch series tapered roller bearing consists of detachable and interchangeable elements that make them easily adjustable in any application.
Shandong XSY Bearing Co., Ltd. is a Professional and leading factory of thrust roller &ball bearings in China market, With more than 30 years of experience in producing, R&D, and sales bearing lines.
Next is our brief introduction, hope you can like it.
1. World quality, global share.
2. Since 1990.
3. Affordable, Durable, &Classical
4. OEM & ODM services are available.
5. Super Quality & Favorable price
XSY Bearing--Your trustworthy professional bearing expert!
We supplying the following Tapered Roller Bearings:

Inch series
Bearing No.		Boundary dimensions							Basic load ratings (kN)		Limiting speeds		Mass
		mm							Dynamic	Static	rpm		Kg
Cone	Cup	d	D	T	B	C	R	r	Cr	Cor	Grease	Oil	≈
11590	11520	15.875	42.862	14.288	14.288	9.525	1.5	1.5	17.6	17.6	8500	12000	0.1
LM11749	LM11710	17.462	39.878	13.843	14.605	10.668	1.3	1.3	21.2	20.8	9000	13000	0.081
LM11949	LM11910	19.050	45.237	15.494	16.637	12.065	1.3	1.3	27.5	27.5	8500	12000	0.12
09067	09195	19.050	49.225	18.034	19.05	14.288	1.3	1.3	39.1	40	8000	11000	0.18
09074	09196	19.050	49.225	23.02	21.539	17.462	1.5	1.5	39.1	40	8000	11000	0.21
A6075	A6157	19.050	39.992	12.014	11.153	9.525	1.0	1.3	14.9	15.7	9500	13000	0.066
09067	09196	19.050	49.225	21.209	19.050	17.462	1.3	1.5	39.1	40	8000	11000	0.2
09074	09195	19.050	49.225	19.845	21.539	14.288	1.5	1.3	39.1	40	4300	8000	0.19
09074	09194	19.050	49.225	23.020	21.539	17.462	1.5	3.5	37.5	37.0	8500	11000	0.21
12580	12520	20.638	49.225	19.845	19.845	15.875	1.5	1.5	37.5	39.0	8200	11000
M12649	M12610	21.430	50.005	17.526	18.288	13.970	1.3	1.3	36.9	38	8000	11000	0.17
LM12749	LM12710	21.986	45.237	15.494	16.637	12.065	1.3	1.3	27.5	31	8000	11000	0.12
LM12749	LM12711	21.986	45.974	15.494	16.637	12.065	1.3	1.3	27.5	31	8000	11000	0.12
M12648	M12610	22.225	50.005	17.526	18.288	13.970	1.3	1.3	39.1	40.7	8500	11000	0.17
1280	1220	22.225	57.150	22.225	22.225	17.462	0.8	1.6	52.6	55.7	7600	10000
1755	1729	22.225	56.896	19.368	19.837	15.875	1.3	0.8	46	43.1	7600	10000
07093	07196	23.812	50.005	13.495	14.260	9.525	1.5	1.0	26.0	27.9	7600	10000
07097	07196	25.000	50.005	13.495	14.260	9.525	1.5	1.0	26.7	28.8	7900	11000	0.146
07100	07204	25.400	51.994	15.011	14.260	12.700	1.5	1.3	26.7	28.8	7900	11000	0.145
1780	1729	25.400	56.896	19.368	19.837	15.875	0.8	1.3	42.5	46.5	7200	9600
L44643	L44610	25.400	50.292	14.224	14.732	10.668	1.3	1.3	26	30	7500	10000	0.13
M84548	M84510	25.400	57.150	19.431	19.431	14.732	1.5	1.5	39.6	45	6700	9000	0.24
15101	15243	25.400	61.912	19.050	20.638	14.288	0.8	2.0	44.6	50.7	6400	8600	0.28
07100	07196	25.400	50.005	13.495	14.260	9.525	1.5	1.0	26.7	28.8	7900	11000	0.12
15101	15245	25.400	62.000	19.050	20.638	14.288	0.8	1.3	48.4	57	6000	8000	0.31
15101	15250X	25.400	63.500	20.638	20.638	15.875	0.8	1.5	48.4	57	6000	8000	0.34
L44649	L44610	26.988	50.292	14.224	14.732	10.668	3.5	1.3	26	30	7500	10000	0.11
1988	1922	28.575	57.150	19.845	19.355	15.875	3.5	1.5	47.3	55	6700	9000	0.22
02474	02420	28.575	68.262	22.225	22.225	17.462	0.8	1.5	58.3	69.5	5600	7500	0.42
02872	02820	28.575	73.025	22.225	22.225	17.462	0.8	3.2	55.0	65.7	5500	7400
15112	15245	28.575	62.000	19.050	20.638	14.288	3.5	1.3	48.4	57	6000	8000	0.28
L45449	L45410	29.000	50.292	14.224	14.732	10.668	3.5	1.3	26	32.5	7000	9500	0.11
15116	15245	30.112	62.000	19.050	20.638	14.288	0.1	1.2	44.6	50.7	6400	8600
M86649	M86610	30.162	64.292	21.433	21.433	16.670	1.5	1.5	49.5	61	6000	8000	0.33
M88043	M88010	30.162	68.262	22.225	22.225	17.462	2.3	1.5	55	69.5	5600	7500	0.41
02475	02420	31.750	68.262	22.225	22.225	17.462	3.6	1.6	51.0	61.1	6000	8000
14125A	14276	31.750	69.012	19.845	19.583	15.875	3.5	1.3	44.5	55.0	5500	7500	0.35
LM67048	LM67010	31.750	59.131	15.875	16.764	11.811	3.6	1.3	34.7	41.5	6300	8500	0.18
2580	2520	31.750	66.421	25.400	25.357	20.638	0.8	3.3	69.3	81.5	5600	7500	0.4
2580	2523	31.750	69.850	23.812	25.357	19.050	0.8	1.3	69.0	81.5	5700	7600	0.45
14125A	14276	31.750	69.012	19.845	19.583	15.875	3.5	1.3	48.5	58.0	5600	7400	0.35
15123	15245	31.750	62.000	18.161	19.050	14.288	4	1.3	48.4	57	6000	8000	0.24
15126	15245	31.750	62.000	19.050	20.638	14.288	0.8	1.2	44.6	50.7	6400	8600
HM88542	HM88510	31.750	73.025	29.370	27.783	23.020	1.3	3.3	74.3	101.0	5600	7500	0.62
M88048	M88010	33.338	68.262	22.225	22.225	17.462	0.8	1.5	55	69.5	5600	7500	0.38
14130	14276	33.338	69.012	19.845	19.583	15.875	3.5	1.3	53.9	67	5600	7500	0.35
14136 A	14276	34.925	69.012	26.982	26.721	15.875	0.8	1.3	53.9	67	5600	7500	0.33
25877	25821	34.925	73.025	23.812	24.608	19.050	1.5	0.8	72.1	88	5300	7000	0.47
LM48548	LM48510	34.925	65.088	18.034	18.288	13.970	3.6	1.3	47.3	57	5600	7500	0.25
HM88649	HM88610	34.925	72.233	25.400	25.400	19.842	2.3	2.3	67.1	90	5000	6700	0.5
HM89446	HM89410	34.925	76.2	29.37	28.575	23.02	3.5	3.3	78.1	106	4800	6300	0.66
L68149	L68110	34.988	59.131	15.875	16.764	11.938	3.5	1.3	33	44	6000	8000	0.17
L68149	L68111	34.988	59.974	15.875	16.764	11.938	3.5	1.3	33	44	6000	8000	0.17
LM78349A	LM78310A	34.988	61.973	16.700	17.000	13.600	1.5	1.5	37.0	48.0	5900	7900	0.21
HM88648	HM88610	35.717	72.233	25.400	25.400	19.842	3.6	2.4	66.9	87.4	5700	6900
25880	25821	36.487	73.025	23.812	24.608	19.05	1.5	0.8	72.1	88	5300	7000	0.46
25880	25820	36.487	73.025	23.812	24.608	19.05	1.5	0.8	72.1	88	5300	7000	0.45
2794	2720	36.487	76.2	23.812	25.654	19.05	3.5	3.3	74.8	93	5000	6700	0.5
HM89448	HM89410	36.512	76.200	29.370	28.575	23.02	0.8	3.3	78.1	106	4800	6300	0.64
HM89449	HM89410	36.512	76.200	29.370	28.575	23.02	3.5	3.3	78.1	106	4800	6300	0.64
JL69349	JL69310	38.000	63.000	17.000	17.000	13.500	sp	1.3	43.5	58.2	6000	8000	0.2
LM29748	LM29710	38.100	65.088	18.034	18.288	13.97	sp	1.3	42.9	56.5	5800	7800	0.24
LM29749	LM29710	38.100	65.088	18.034	18.288	13.97	2.3	1.3	42.9	57.0	5600	7500	0.24
LM29749	LM29711	38.100	65.088	19.812	18.288	15.748	2.3	1.3	42.9	57	5600	7500	0.25
3490	3420	38.100	79.375	29.370	29.771	23.812	3.5	3.3	91.3	110	5000	6700	0.67
418	414	38.100	88.5	26.988	29.083	22.225	3.5	1.5	101	114	4800	6300	0.83
2788	2720	38.100	76.200	23.812	25.654	19.050	3.5	3.3	74.8	93	5000	6700	0.5
16150	16282	38.100	72	19.000	20.638	14.237	3.5	1.5	49.5	60	5300	7000	0.33
HM801346	HM801310	38.1	82.55	29.37	28.575	23.02	0.8	3.3	85.8	118	4500	6000	0.78
25572	25520	38.100	82.931	23.812	25.400	19.050	0.8	0.8	77.2	100.0	4800	6300	0.64
LM300849	LM300811	40.988	67.975	17.500	18.000	13.500	3.6	1.5	44	58.5	5300	7000	0.24
LM501349	LM501310	41.275	73.431	19.558	19.812	14.732	3.5	0.8	55	69.5	4800	6300	0.33
LM501349	LM501314	41.275	73.431	21.430	19.812	16.604	3.5	0.8	55	69.5	4800	6300	0.35
LM501349	LM501311	41.275	73.431	23.012	19.812	18.186	3.5	2.3	55	69.5	4800	6300	0.37
M802048	M802011	41.275	82.550	26.543	25.654	20.193	3.5	3.3	73.7	91.5	4500	6000	0.62
18590	18520	41.275	73.025	16.667	17.462	12.700	3.5	1.5	46.8	56	5000	6700	0.28
11162	11300	41.275	76.200	18.009	17.384	14.288	1.5	1.5	45.7	56	5000	6700	0.34
24780	24720	41.275	76.200	22.225	23.020	17.462	3.5	0.8	68.2	86.5	5000	6700	0.43
HM803146	HM803110	41.275	88.9	30.162	29.37	23.02	3.5	3.3	95.2	127	4300	5600	0.9
526	522	41.275	101.6	34.925	36.068	26.988	3.5	3.3	151	190	3800	5000	1.45
3579	3525	42.862	87.312	30.162	30.886	23.812	3.5	3.3	102	132	4500	6000	0.8
25577	25520	42.875	82.931	23.812	25.400	19.050	3.5	0.8	80.9	106	4500	6000	0.57
25577	25523	42.875	82.931	26.988	25.4	22.225	3.5	2.3	80.9	106	4500	6000	0.61
25577	25522	42.875	83.058	23.876	25.4	19.114	3.5	2	80.9	106	4500	6000	0.57
527	522	44.450	101.600	34.925	36.068	26.988	3.5	3.3	151	190	3800	5000	1.35
535	532 A	44.450	111.125	38.100	36.957	30.162	3.5	3.3	151	190	3600	4800	1.9
25580	25520	44.450	82.931	23.812	25.400	19.050	3.5	0.8	80.9	106	4500	6000	0.57
25580	25523	44.45	82.931	26.988	25.4	22.225	3.5	2.3	80.9	106	4500	6000	0.61
25580	25522	44.45	83.058	23.876	25.4	19.114	3.5	2	80.9	106	4500	6000	0.57
HM803149	HM803110	44.45	88.9	30.162	29.37	23.02	3.5	3.3	95.2	127	4300	5600	0.85
17887	17831	45.230	79.985	19.842	20.638	15.080	2.0	1.3	62.0	78.5	4500	6000	0.41
LM603049	LM603011	45.242	77.788	19.842	19.842	15.080	3.5	0.8	53.9	69.5	4800	6300	0.37
LM603049	LM603014	45.242	79.974	19.842	19.842	15.000	3.5	0.8	57.1	73.5	4900	6500
LM603049	LM603012	45.242	77.788	21.430	19.842	16.667	3.5	0.8	57.1	73.5	4900	6500	0.38
LM102949	LM102910	45.242	73.431	19.558	19.812	15.748	3.5	0.8	55.6	78.1	5100	6700	0.3
25590	25520	45.618	82.931	23.812	25.400	19.050	3.5	0.8	80.9	106	4500	6000	0.55
25590	25523	45.618	82.931	26.988	25.400	22.225	3.5	2.3	80.9	106	4500	6000	0.59
LM503349	LM503310	45.987	74.976	18.000	18.000	14.000	2.3	1.5	50.1	71	4800	6300	0.31
M804049	M804010	47.625	88.900	25.400	25.400	19.050	3.5	3.3	87.1	112.0	4400	5900
386 A	382 A	47.625	96.838	21.000	21.946	15.875	0.8	0.8	80.9	102	3800	5500	0.73
JLM104948	JLM104910	50.000	82.000	21.501	21.501	17.000	3.0	0.5	71.7	97.9	4500	6000	0.42
LM104949	LM104911	50.800	82.550	21.590	22.225	16.51	3.5	1.3	61.2	84.3	4500	6000	0.42
LM104949	LM104912	50.800	82.931	21.590	22.225	16.510	3.5	1.3	69.5	94.0	4300	5700
368A	362A	50.800	88.900	20.638	22.225	16.513	3.5	1.3	76.5	91.5	4300	5600	0.5
368A	362X	50.800	90	25	22.225	20	3.5	2	76.5	91.5	4300	5600	0.58
529	522	50.800	101.600	34.925	36.068	26.988	0.8	3.2	131.0	159.0	4000	5300
529X	522	50.800	101.600	34.925	36.068	26.988	3.5	3.3	151	190	3800	5000	1.25
3780	3720	50.800	93.264	30.162	30.302	23.812	3.5	3.3	110	146	4000	5300	0.87
28580	28521	50.800	92.075	24.608	25.400	19.845	3.5	0.8	85.8	118	4000	5300	0.72
368A	363	50.800	90.000	20.000	22.225	20.000	3.5	0.8	76.5	90.5	4100	5500
28584	28521	52.388	92.075	24.608	25.400	19.845	3.5	0.8	84.8	119.0	4200	5600	0.67
539	532X	53.975	107.950	36.512	36.957	28.575	3.5	3.3	151	190	3600	4800	1.5
JLM506849	JLM506810	55.000	90.000	23.000	23.000	18.500	1.6	0.5	81.4	115.0	4200	5500
39581	39520	57.150	112.712	30.162	30.162	23.812	8	3.3	142	204	3200	4300	1.4
387	382A	57.150	96.838	21.000	21.946	15.875	2.3	0.8	80.9	102	3800	5000	0.59
387A	382A	57.150	96.838	21.000	21.946	15.875	3.5	0.8	80.9	102	3800	5000	0.59
387AS	382A	57.150	96.838	21.000	21.946	15.875	5	0.8	80.9	102	3800	5000	0.58
387	382S	57.150	96.838	21.000	21.946	15.875	2.3	2.3	80.9	102	3800	5000	0.59
387A	382S	57.150	96.838	21.000	21.946	15.875	3.5	2.3	80.9	102	3800	5000	0.59
387AS	382S	57.150	96.838	21.000	21.946	15.875	5	2.3	80.9	102	3800	5000	0.58
462	453X	57.150	104.775	30.162	29.317	24.605	2.3	3.3	109.0	144.0	3700	4900	1.08
28985	28920	60.325	101.600	25.400	25.400	19.845	3.5	3.3	85.8	125	3600	4800	0.81
28985	28921	60.325	100.000	25.400	25.400	19.845	3.5	3.3	85.8	125	3600	4800	0.77
395	394A	63.500	110.000	22.000	21.996	18.824	3.5	1.3	88	118	3200	4300	0.84
29585	29520	63.5	107.95	25.4	25.4	19.05	3.5	3.3	89.7	137	3200	4300	0.9
559	552A	63.500	123.825	38.100	36.678	30.162	3.5	3.3	172	240	3000	4000	2
39585	39520	63.500	112.712	30.162	30.162	23.812	3.5	3.3	142.0	204	3200	4300	1.25
395S	394A	66.675	110.000	22.000	21.996	18.824	3.5	1.3	88	118	3200	4300	0.79
HM212049	HM212011	66.675	122.238	38.100	38.354	29.718	3.5	3.5	191.0	249.0	3200	4300	1.85
3984	3920	66.675	112.712	30.162	30.048	23.812	3.5	3.3	123	183	3200	4300	1.15
39590	39520	66.675	112.712	30.162	30.162	23.812	3.5	3.3	142	204	3200	4300	1.2
399A	394A	68.262	110.000	22.000	21.996	18.824	2.3	1.3	88	118	3200	4300	0.76
482	472	69.850	120.000	29.794	29.007	24.237	3.5	2.0	132	186	3000	4000	1.35
566	563	69.850	127.000	36.512	36.17	28.575	3.5	3.3	176	255	2800	3800	1.85
484	472	70.000	120.000	29.794	29.007	24.237	2.0	2.0	132	186	3000	4000	1.3
567A	563	71.438	127.000	36.512	36.170	28.575	3.5	3.3	156.0	226.0	3000	4000
29685	29620	73.025	112.712	25.400	25.400	19.050	3.5	3.3	99	156	3000	4000	0.89
567	563	73.025	127.000	36.512	36.170	28.575	3.5	3.3	176	255	2800	3800	1.85
575	572	76.200	139.992	36.512	36.098	28.575	3.5	3.3	187	280	2400	3400	2.45
581	572	80.962	139.992	36.512	36.098	28.575	3.5	3.3	175.0	262.0	2700	3600
740	742	80.962	150.098	44.450	46.672	36.512	5.2	3.2	264.0	368.0	2500	3400
580	572	82.550	139.992	36.512	36.098	28.575	3.5	3.3	187	280	2400	3400	2.2
663	653	82.550	146.050	41.275	41.275	31.750	3.5	3.3	220	320	2200	3200	2.8
27690	27620	83.345	125.412	25.400	25.400	19.845	3.5	1.5	112	186	2600	3600	1.05
498	493	84.138	136.525	30.162	29.769	22.225	3.5	3.3	145	220	2400	3400	1.6
749	742	85.026	150.089	44.450	46.672	36.512	3.5	3.3	286	405	2200	3200	3.3
HM518445	HM518410	88.900	152.400	39.688	39.688	30.162	6.4	3.3	242	355	2000	3000	2.85
HM218248	HM218210	89.974	146.975	40.000	40.000	32.500	7	3.5	229	355	2200	3200	2.5
42381	42584	96.838	148.430	28.575	28.971	21.433	3.5	3.0	130	196	2200	3200	1.65
L521949	L521910	107.950	146.050	21.432	21.432	16.670	1.6	1.6	86.4	167.0	2300	3100

Bearing No.	Boundary dimensions							Limiting speed		Mass
	mm							rpm		Kg
	d	D	T	B	C	Rmin	rmin	Grease	Oil	≈
30200 series
30202	15	35	11.75	11	10	0.6	0.6	9000	13000	0.053
30203	17	40	13.25	12	11	1	1	9000	13000	0.096
30204	20	47	15.25	14	12	1	1	8000	11000	0.128
30205	25	52	16.25	15	13	1	1	7500	10000	0.153
30206	30	62	17.25	16	14	1	1	6300	8500	0.232
30207	35	72	18.25	17	15	1.5	1.5	5300	7000	0.337
30208	40	80	19.75	18	16	1.5	1.5	4800	6300	0.422
30209	45	85	20.75	19	16	1.5	1.5	4500	6000	0.476
30210	50	90	21.75	20	17	1.5	1.5	4300	5600	0.538
30211	55	100	22.75	21	18	2	1.5	3800	5000	0.715
30212	60	110	23.75	22	19	2	1.5	3400	4500	0.905
30213	65	120	24.75	23	20	2	1.5	3000	4000	1.12
30214	70	125	26.25	24	21	2	1.5	3000	4000	1.26
30215	75	130	27.25	25	22	2	1.5	2800	3800	1.36
30216	80	140	28.25	26	22	2.5	2	2400	3400	1.67
30217	85	150	30.5	28	24	2.5	2	2200	3200	2.08
30218	90	160	32.5	30	26	2.5	2	2000	3000	2.53
30219	95	170	34.5	32	27	3	2.5	1900	2800	3.06
30220	100	180	37	34	29	3	2.5	1900	2800	3.72
30221	105	190	39	36	30	3	2.5	1800	2600	4.39
30222	110	200	41	38	32	3.5	2	1700	2400	5.21
30224	120	215	43.5	40	34	3	2.5	1600	2200	6.19
30226	130	230	43.75	40	34	4	3	1500	2000	6.94
30228	140	250	45.75	42	36	4	3	1400	1900	8.75
30230	150	270	49	45	38	4	3	1300	1800	10.8
30232	160	290	52	48	40	4	3	1100	1600	12.9
30234	170	310	57	52	43	5	4	1000	1500	19
30236	180	320	57	52	43	5	4	1000	1500	20
30238	190	340	60	55	46	3	2.5	950	1400	24
30240	200	360	64	58	48	5	4	900	1300	25
30300 series
30302	15	42	14.25	13	11	1	1	9000	13000	0.096
30303	17	47	15.25	14	12	1	1	8500	12000	0.13
30304	20	52	16.25	15	13	1.5	1.5	8000	11000	0.166
30305	25	62	18.25	17	15	1.5	1.5	6700	9000	0.266
30306	30	72	20.75	19	16	1.5	1.5	5600	7500	0.391
30307	35	80	22.75	21	18	2	1.5	5000	6700	0.484
30308	40	90	25.25	23	20	2	1.5	4500	6000	0.751
30309	45	100	27.25	25	22	2	1.5	4000	5300	0.985
30310	50	110	29.25	27	23	2.5	2	3600	4800	1.28
30311	55	120	31.5	29	25	2.5	2	3200	4300	1.61
30312	60	130	33.5	31	26	3	2.5	3000	4000	1.95
30313	65	140	36	33	28	3	2.5	2600	3600	2.44
30314	70	150	38	35	30	3	2.5	2000	3000	2.99
30315	75	160	40	37	31	3	2.5	2200	3200	3.58
30316	80	170	42.5	39	33	3	2.5	2000	3000	4.27
30317	85	180	44.5	41	34	4	3	1900	2800	4.97
30318	90	190	46.5	43	36	4	3	1800	2600	5.79
30319	95	200	49.5	45	38	4	3	1800	2600	6.8
30320	100	215	51.5	47	39	4	3	1700	2400	8.2
30321	105	225	53.5	49	41	4	3	1600	2200	9.91
30322	110	240	54.5	50	42	4	3	1600	2200	11.5
30324	120	260	59.5	55	46	4	3	1500	2000	13.7
30326	130	280	63.75	58	49	5	4	1300	1800	17.1
30328	140	300	67.75	62	53	5	4	1200	1700	21.7
30330	150	320	72	65	55	5	4	1100	1600	28.5
30332	160	340	75	68	58	5	4	1100	1600	29
30334	170	360	80	72	62	5	4	950	1400	35
31300 series
31305	25	62	18.25	17	13	1.5	1.5	5600	7500	0.264
31306	30	72	20.75	19	14	1.5	1.5	5000	6700	0.393
31307	35	80	22.75	21	15	2	1.5	4500	6000	0.518
31308	40	90	25.25	23	17	2	1.5	4000	5300	0.727
31309	45	100	27.25	25	18	2	1.5	3400	4500	0.947
31310	50	110	29.25	27	19	2.5	2	3200	4300	1.22
31311	55	120	31.5	29	21	2.5	2	2800	3800	1.56
31312	60	130	33.5	31	22	3	2.5	2600	3600	1.91
31313	65	140	36	33	23	3	2.5	2200	3200	2.39
31314	70	150	38	35	25	3	2.5	2400	3400	2.95
31315	75	160	40	37	26	3	2.5	1900	2800	3.39
31316	80	170	42.5	39	27	3	2.5	1900	2800	4.05
31317	85	180	44.5	41	28	4	3	1800	2600	4.6
31318	90	190	46.5	43	30	4	3	1700	2400	5.9
31319	95	200	49.5	45	32	4	3	1700	2400	6.95
31320	100	215	56.5	51	35	4	3	1600	2200	8.6
31321	105	225	58	53	36	4	3	1500	2000	9.65
31322	110	240	63	57	38	4	3	1400	1900	12
31324	120	260	68	62	42	4	3	1200	1700	15.5
31326	130	280	72	66	44	5	4	1100	1600	18.5
31328	140	300	77	70	47	5	4	1000	1500	24.5
31330	150	320	82	75	50	5	4	950	1400	29.5
32000 series
32004	20	42	15	15	12	0.6	0.6	9700	13000	0.96
32005	25	47	15	15	11.5	0.6	0.6	8000	11000	0.115
32006	30	55	17	17	13	1	1	6700	9000	0.172
32007	35	62	18	18	14	1	1	6000	8000	0.227
32008	40	68	19	19	14.5	1	1	5300	7000	0.77
32009	45	75	20	20	15.5	1	1	4800	6300	0.329
32010	50	80	20	20	15.5	1	1	4500	6000	0.365
32011	55	90	23	23	17.5	1.5	1.5	4000	5300	0.55
32012	60	95	23	23	17.5	1.5	1.5	3800	5000	0.586
32013	65	100	23	23	17.5	1.5	1.5	3400	4500	0.627
32014	70	110	25	25	19	1.5	1.5	3200	4300	0.842
32015	75	115	25	25	19	1.5	1.5	3000	4000	0.887
32016	80	125	29	29	22	1.5	1.5	2600	3600	1.27
32017	85	130	29	29	22	1.5	1.5	2400	3400	1.33
32018	90	140	32	32	24	2	1.5	2200	3200	1.73
32019	95	145	32	32	24	2	1.5	2200	3200	1.8
32020	100	150	32	32	24	2	1.5	2000	3000	1.87
32021	105	160	35	35	26	2.5	2	1900	2800	2.38
32022	110	170	38	38	29	2.5	2	1800	2600	3.05
32024	120	180	38	38	29	2.5	2	1800	2600	3.2
32026	130	200	45	45	34	2.5	2	1600	2200	4.86
32028	140	210	45	45	34	2.5	2	1600	2200	5.19
32030	150	225	48	48	36	3	2.5	1500	2000	6.33
32032	160	240	51	51	38	3	2.5	1300	1800	7.53
32034	170	260	57	57	43	3	2.5	1100	1600	10.6
32036	180	280	64	64	48	3	2.5	1100	1600	14.5
32038	190	290	64	64	48	3	2.5	1000	1500	15
32040	200	310	70	70	53	3	2.5	950	1400	19.5
32044	220	340	76	76	57	4	3	900	1300	25.5
32048	240	360	76	76	57	4	3	850	1200	27.5
32200 series
32204	20	47	19.25	18	15	1	1	8000	11000	0.161
32205	25	52	19.25	18	16	1	1	7500	10000	0.184
32206	30	62	21.25	20	17	1	1	6300	8500	0.29
32207	35	72	24.25	23	19	1.5	1.5	5300	7000	0.45
32208	40	80	24.75	23	19	1.5	1.5	4800	6300	0.535
32209	45	85	24.75	23	19	1.5	1.5	4500	6000	0.584
32210	50	90	24.75	23	19	1.5	1.5	4300	5600	0.646
32211	55	100	26.76	25	21	2	1.5	3800	5000	0.86
32212	60	110	29.75	28	24	2	1.5	3400	4500	1.16
32213	65	120	32.75	31	27	2	1.5	3000	4000	1.54
32214	70	125	33.25	31	27	2	1.5	2800	3800	1.63
32215	75	130	33.25	31	27	2	1.5	2600	3600	1.75
32216	80	140	35.25	33	28	2.5	2	2400	3400	2.13
32217	85	150	38.5	36	30	2.5	2	2200	3200	2.69
32218	90	160	42.5	40	34	2.5	2	2000	3000	3.43
32219	95	170	45.5	43	37	3	2.5	1900	2800	4.24
32220	100	180	49	46	39	3	2.5	1800	2600	3.72
32221	105	190	53	50	43	3	2.5	1800	2600	6.31
32222	110	200	56	53	46	3.5	2	1700	2400	7.43
32224	120	215	61.5	58	50	3	2.5	1600	2200	9.26
32226	130	230	67.75	64	54	4	3	1500	2000	11.5
32228	140	250	71.75	68	58	4	3	1400	1900	14.4
32230	150	270	77	73	60	4	3	1200	1700	18.2
32232	160	290	84	80	67	4	3	1000	1400	21.1
32234	170	310	91	86	71	5	4	1000	1500	28.5
32236	180	320	91	86	71	5	4	950	1400	29.8
32238	190	340	97	92	75	5	4	900	1300	36
32240	200	360	104	98	82	5	4	900	1300	42.7
32244	220	400	115	108	90	5	4	800	1100	58.3
32300 series
32303	17	47	20.25	19	16	1	1	8000	11000	0.174
32304	20	52	22.25	21	18	1.5	1.5	7500	10000	0.231
32305	25	62	25.25	24	20	1.5	1.5	6000	8000	0.367
32306	30	72	28.75	27	23	1.5	1.5	5300	7000	0.56
32307	35	80	32.75	31	25	2	1.5	4800	6300	0.77
32308	40	90	35.25	33	27	2	1.5	4000	5300	1.05
32309	45	100	38.25	36	30	2	1.5	3600	4800	1.4
32310	50	110	42.25	40	33	2.5	2	3200	4300	1.89
32311	55	120	45.5	43	35	2.5	2	3000	4000	2.37
32312	60	130	48.5	46	37	3	2.5	2600	3600	2.9
32313	65	140	51	48	39	3	2.5	2400	3400	3.51
32314	70	150	54	51	42	3	2.5	2000	3000	4.35
32315	75	160	58	55	45	3	2.5	2000	3000	5.34
32316	80	170	61.5	58	48	3	2.5	1900	2800	6.38
32317	85	180	63.5	60	49	4	3	1800	2600	7.3
32318	90	190	67.5	64	53	4	3	1700	2400	8.78
32319	95	200	71.5	67	55	4	3	1700	2400	10.7
32320	100	215	77.5	73	60	4	3	1600	2200	3
32321	105	225	81.5	77	63	4	3	1500	2000	14.5
32322	110	240	84.5	80	65	4	3	1400	1900	17.8
32324	120	260	90.5	86	69	4	3	1300	1800	21.7
32334	170	360	128	120	100	3.7	1.3	850	1100	59.5
33000 series
33005	25	47	17	17	14	0.6	0.6	8000	10700	0.131
33006	30	55	20	20	16	1	1	6700	9100	0.208
33007	35	62	21	21	17	1	1	6200	8200	0.267
33008	40	68	22	22	18	1	1	5500	7400	0.322
33009	45	75	24	24	19	1	1	5000	6700	0.414
33010	50	80	24	24	19	1	1	4600	6100	0.452
33011	55	90	27	27	21	1.5	1.5	4100	5400	0.672
33012	60	95	27	27	21	1.5	1.5	3900	5200	0.713
33013	65	100	27	27	21	1.5	1.5	3600	4800	0.758
33014	70	110	31	31	25.5	1.5	1.5	3300	4400	1.11
33015	75	115	31	31	25.5	1.5	1.5	3200	4200	1.18
33019	95	145	39	39	32.5	2	1.5	2500	3300	2.3
33022	110	170	47	47	37	2.5	2	2100	2800	3.775
33200 series
33205	25	52	22	22	18	1	1	6700	9000	0.23
33206	30	62	25	25	19.5	1	1	5600	7500	0.37
33207	35	72	28	28	22	1.5	1.5	4800	6300	0.522
33208	40	80	32	32	25	1.5	1.5	4300	5600	0.535
33209	45	85	32	32	24.5	1.5	1.5	4000	5300	0.82
33210	50	90	32	32	24.5	1.5	1.5	3800	5000	0.9
33211	55	100	35	35	27	2	1.5	3400	4500	1.2
33212	60	110	38	38	29	2	1.5	3000	4000	1.6
33213	65	120	41	41	32	2	1.5	2800	3800	2.05
33214	70	125	41	41	32	2	1.5	2600	3600	2.1
33215	75	130	41	41	31	2	1.5	2400	3400	2.25
33216	80	140	46	46	35	2.5	2	2200	3200	2.9
33217	85	150	49	49	37	2.5	2	2000	3000	3.7
33220	100	180	63	63	48	3	2.5	1700	2400	6.78

Besides the above bearings, we also have other roller bearings(such as spherical roller bearings, cylindrical roller bearings, needle roller bearings, and thrust roller bearings. More details please contact me freely!
Description of the bearing:
Spherical roller bearing are two inner ring raceway,outer ring raceway spherical roller bearing type.The outer ring raceway center consistent with the bearing center,it has a self-aligning properties,can automatically adjust due to installation error or shaft deflection arising between the eccentric shaft and the bearing,the outer ring and the inner ring relative to the centerline of not more than 1-2.5,the bearing can still work properly.Can bear radial load and axial load,especially for heavy duty and shock loads.

place of Origin	China(Mainland)
product type	spherical ball bearing
Brand	ZGXSY
Precision	P0 P4 P5 P6
Tolerance	spherical roller beairngs with P0, P6 and P5 precision grades according to customers demands.
	All tolerance values conform to GB307.1 standard.
Vibration	Z1V1 Z2V2 Z3V3 Z4V4
Clearance	C1 C2 C3 C4 C5
Hardness	HRC60-HRC63
Cage Material	Nylon,Steel, Brass
Bearing Material	bearing steel
Technology&QC Process	Assembly, Windage Test, Cleaning, Rotary Test, Greasing and Gland, Noise Inspection, Appearance Inspection, Rust Prevision
Application	Auto, tractor, machine tool, electric machine, water pump, agricultural machinery, textile machinery, etc.
Feature	High Precision, High Speed, Low Friction, Low vibration, Long life
Ertification	ISO 9001:2000, SGS, ROHS

Size (mm)							Basic Load Rating (kN)		Part Number	LimitedSpeed (rpm)		Weight (kg)
d	D	T	B	C	Rmin	rmin	Cr	Cor	Inner-Out Ring	Grease	Oil
45	100	-	25	-	1.5	1.5	104	116	21309	4000	5400	0.935
70	150	-	51	-	2.1	2.1	311	364	22314C3W33	2600	3500	4.11
85	180	-	60	-	3	3	397	481	22317C3W33	2200	2900	6.99
90	160	-	40	-	2	2	246	330	22218KW33	2300	3100	3.4
90	190	-	64	-	3	3	497	617	22318C3W33	1900	2500	8.41
90	160	-	52.4	-	2	2	303	412	23218CAC3E33	1900	2400	4.55
100	215	-	73	-	3	3	633	806	22320CA/W33	1600	2200	12.7
110	170	-	45	-	2	2	288	471	23022K	1900	2500	3.63
120	180	-	46	-	2	2	299	517	23024MB	1900	2600	4.22
120	180	-	46	-	2	2	299	517	23024CAC3W33	1900	2600	4.07
120	200	-	80	-	2	2	495	925	24124E	900	120	10.6
130	180	-	37	-	1.5	1.5	204	355	23926YMW33C3	1800	2300	2.87
140	190	-	37	-	1.5	1.5	248	466	23928YMW33C3	1700	2200	3.13
160	290	-	80	-	3	3	885	1270	22232CAC3W33	1200	1700	22.9
160	270	-	86	-	2.1	2.1	784	1240	23132CAW33	1100	1400	21.8
170	310	-	86	-	4	4	952	1390	22234W33	1100	1500	28.4
170	260	-	67	-	2.1	2.1	629	1110	23034CAKC3W33	1200	1600	12.6
180	320	-	112	-	4	4	1360	2110	23236KMC3W33	1000	1300	38.2
190	340	-	120	-	4	4	1550	2420	23238CAC3W33	1000	1260	44.8
200	420	-	138	-	5	5	2010	2750	22340K	830	1100	93.5
200	340	-	112	-	3	3	1240	2210	23140CAKC3W33	840	1000	43.5
200	280	-	60	-	2.1	2.1	495	1150	23940MW33	1600	2000	12.1
200	340	-	140	-	3	3	1380	2800	24140CAW33	560	700	52.1
200	340	-	140	-	3	3	1380	2800	24140CAC3W33	560	700	52.1
220	460	-	145	-	5	5	2380	3380	22344MBW33C3	720	960	122
220	340	-	90	-	3	3	984	1890	23044CAW33	940	1300	31.5
220	340	-	90	-	3	3	984	1890	23044W33	940	1300	31.5
220	400	-	144	-	4	4	2040	3750	23244KC3W33	710	840	77.3
220	300	-	60	-	2.1	2.1	500	1200	23944MW33	1500	1900	13
240	400	-	128	-	4	4	1080	2320	23148W33	750	890	67.6
240	440	-	160	-	4	4	2530	4300	23248CA/C3W33	670	850	103
240	440	-	160	-	4	4	2530	4300	23248CK	670	850	110
240	440	-	160	-	4	4	2530	4300	23248KC3W33	670	850	102
240	320	-	60	-	2.1	2.1	530	1310	23948	1300	1700	15
260	400	-	104	-	4	4	1470	2720	23052CAW33	760	1000	46.3
280	580	-	175	-	6	6	3150	4910	22356K	530	710	225
280	460	-	146	-	5	5	2180	3920	23156M	600	710	95.5
280	500	-	176	-	5	5	2850	4770	23256MB	560	670	154
280	500	-	176	-	5	5	2850	4770	23256KMB	560	670	149
280	500	-	176	-	5	5	2850	4770	23256KC3W33	560	670	152
280	380	-	75	-	2.1	2.1	700	1850	23956CCKW33	1000	1400	25.7
280	420	-	140	-	4	4	1620	3700	24056CC/W33	670	850	69.2
300	500	-	160	-	5	5	2560	4490	23160KYMBW33W507CO8C6	530	630	130
300	540	-	192	-	5	5	3350	5570	23260CAF3C3W33	500	600	200
300	540	-	192	-	5	5	3350	5570	23260CKC3	500	600	195
300	540	-	192	-	5	5	3350	5570	23260CCW33C3	500	600	195
300	420	-	90	-	3	3	1050	2500	23960MBW33	950	1300	40.1
300	460	-	160	-	4	4	2420	4850	24060CAC3W33	560	700	65.7
320	480	-	121	-	4	4	1890	3510	23064	530	630	78.5
320	540	-	176	-	5	5	3020	5390	23164SPLIT	500	600	190
320	540	-	176	-	5	5	3220	5390	23164KMB	500	600	165
320	580	-	208	-	5	5	3880	6520	23264C3W33	450	530	253
320	440	-	90	-	3	3	1330	2870	23964CAW33	630	840	43.0
320	440	-	90	-	3	3	1330	2870	23964MBW33	630	840	43.0
340	520	-	133	-	5	5	2270	4210	23068	500	600	114
340	580	-	190	-	5	5	3450	6100	23168KC3	450	530	206
340	460	-	90	-	3	3	1200	2700	23968MBW33	900	1200	45.6
340	520	-	180	-	5	5	2460	5700	24068W33C3	530	670	137
340	580	-	243	-	5	5	3700	7950	24168W33	320	400	256
360	540	-	134	-	5	5	2360	1160	23072MBW33	450	530	126
360	600	-	192	-	5	5	3630	6550	23172CAKW33	420	500	255
360	600	-	192	-	5	5	3630	6550	23172CCKW33	420	500	255
360	600	-	192	-	5	5	3630	6550	23172C3W33	420	500	221
360	600	-	192	-	5	5	3630	6550	2317CCW33C3	400	500	255
360	650	-	232	-	6	6	4650	8300	23272W33MBC3	400	500	330
360	480	-	90	-	3	3	1290	2820	23972MBW33	850	1100	46.6
360	480	-	90	-	3	3	1290	2820	23972CACW33	850	1100	46.6
360	480	-	90	-	3	3	1290	2820	23972MW33	850	1100	46.6
360	540	-	180	-	5	5	3010	6350	24072CAC3W33	500	630	148
380	520	-	106	-	4	4	1730	3800	23976MW33	800	1000	69.5
400	650	-	200	-	6	6	4040	7580	23180	380	450	239
400	540	-	106	-	4	4	2540	3900	23980MBW33	750	950	72.4
400	540	-	106	-	4	4	2540	3900	23980CAW33	750	950	72.4
420	760	-	272	-	6	6	6400	11300	23284CAKC3W33	320	400	550
420	560	-	106	-	5	5	1810	4000	23984	480	600	74.5
420	560	-	106	-	5	5	1810	4000	23984CACW33	480	600	77
440	650	-	157	-	6	6	3210	6410	23088CC	350	420	184
440	720	-	226	-	6	6	4480	9350	23188MBH40	330	400	420
460	620	-	118	-	4	4	2220	4900	23992CAW33	430	530	103
460	620	-	118	-	4	4	2220	4900	23992MBW33	430	530	103
460	830	-	296	-	7.5	7.5	6100	14400	24192CAW33	160	200	459
480	650	-	128	-	5	5	2390	5450	23996CAW33	430	530	126
500	720	-	167	-	6	6	3470	7650	230/500	380	480	228
500	720	-	167	-	6	6	3470	7650	230/500CAKC3W33	380	480	227
500	870	-	224	-	9.5	9.5	9750	39500	294/500	320	460	559
530	780	-	185	-	6	6	4290	9650	230/530K	340	430	328
530	710	-	136	-	5	5	2900	6700	239/530MW33	360	450	154
530	710	-	109	-	5	5	3356	16600	292/530	350	300	113
600	870	-	200	-	6	6	5170	11600	230/600	300	380	431
600	980	-	300	-	7.5	7.5	8900	18800	231/600	180	250	894
600	800	-	150	-	5	5	3260	8400	239/600CAMKE4C3	320	400	220
600	800	-	150	-	5	5	3260	8400	239/600KMW33C3	320	400	213
600	870	-	272	-	6	6	7690	15900	240/600	240	320	555
600	870	-	272	-	6	6	8100	16500	240/600CAC4S2W33	220	300	560
600	980	-	375	-	7.5	7.5	1000	21600	241/600	110	150	1140
600	980	-	375	-	7.5	7.5	1000	21600	241/600CAC4S2W33	110	150	1135
600	800	-	122	-	5	5	4050	21200	292/600	-	450	162
630	850	-	165	-	6	6	3550	9750	239/630	280	360	280
670	900	-	170	-	6	6	4400	10600	239/670K+8LeeveH39/670K	260	340	313
670	1090	-	412	-	7.5	7.5	14000	31500	241/670K	150	190	1560
710	950	-	180	-	6	6	5000	12000	239/710KC3	240	310	364
750	1120	-	224	-	9	9	-	-	293/750	-	250	708
900	1180	-	206	-	6	6	6050	16400	239/900CAKW33C3	180	240	591
950	1250	-	224	-	7.5	7.5	7350	19000	239/950KC3FY	160	225	745
1060	1400	-	250	-	7.5	7.5	9350	25000	239/1060KMW33C3	145	170	1028
1060	1400	-	250	-	7.5	7.5	9350	25000	239/1060KMBC3 ORNON C3	145	170	1028
1180	1540	-	272	-	7.5	7.5	10290	29600	239/1180CAKF	110	150	1335
1180	1540	-	272	-	7.5	7.5	10290	29600	239/1180KMW33C3	110	150	1350
1180	1540	-	375	-	7.5	7.5	13310	40000	249/1180CAK	110	150	1772
1500	1820	-	315	-	7.5	7.5	12000	40000	248/1500KC3	65	83	1730
1500	1820	-	315	-	7.5	7.5	12000	40000	248/1500KW33	65	83	1700
1800	2180	-	375	-	9.5	9.5	17400	62800	248/1800CAK30FA/C3W20	62	70	2870
1800	2180	-	375	-	9.5	9.5	17400	62800	248/1800CAK30FA/C3 VE545	62	70	2870
1800	2180	-	375	-	9.5	9.5	17400	62800	248/1800CK30BC3	62	70	2900
150	250	60	20	29	2.1	2.1	735	2840	29330	-	1600	11.5
160	270	67	23	32	3	3	880	3400	29332	-	1400	15.5
160	270	67	23	32	3	3	880	3400	29332MA	-	1400	15.5
190	270	48	48	24	2	2	540	2300	29238F3	-	1800	8.5
200	280	48	15	24	2	2	550	2410	29240	-	1800	9
200	340	85	29	41	4	4	1350	5250	29340	-	1000	32.0
220	360	85	29	41	4	4	1410	5750	29344	-	1000	34.5
240	340	60	19	30	2.1	2.1	890	4000	29248	-	1300	17.1
280	520	145	52	68	6	6	3450	13500	29456	-	580	137
280	520	145	52	68	6	6	3450	13500	29456E	-	580	137
300	480	109	37	50	5	5	2310	10000	29360	-	720	75.4
300	480	109	37	50	5	5	2310	10000	29360E	-	720	75.4
300	540	145	52	70	6	6	4510	16460	29460EM	-	540	146
320	580	155	55	75	7.5	7.5	4050	16800	29464E	-	480	179
400	710	185	67	89	7.5	7.5	5850	25000	29480	-	360	314
400	710	185	67	89	7.5	7.5	5850	25000	29480E	-	360	314

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
150	225	56	2.1	338	768	23030	3003130	8.91	1700	2200
150	225	56	2.1	338	768	23030/W33	3003130Y	8.85	1700	2200
150	225	75	2.1	564	1040	24030CC/W33		10.5	1300	1700
150	250	100	2.1	890	1600	24130C	4053730	20.4	1000	1400
150	250	100	2.1	890	1600	24130C/W33	4053730Y	20	1000	1400
150	270	73	3	738	1100	22230C	53530	18.9	1600	2000
150	270	96	3	935	1520	23230C/W33	3053230Y	24.3	1100	1500
150	320	108	4	1270	1850	22330CA/W33	53630HY	41.7	1000	1400

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
160	240	60	2.1	376	825	23032	3003132	13.5	1700	2200
160	240	60	2.1	376	825	23032/W33	3003132Y	13.4	1700	2200
160	240	80	2.1	652	1230	24032C	4053132	12.9	1100	1500
160	240	80	2.1	652	1230	24032C/W33	4053132Y	12.8	1100	1500
160	270	109	2.1	1040	1880	24132C	4053732	25.4	950	1300
160	270	109	2.1	1040	1880	24132C/W33	4053732Y	25	950	1300
160	290	80	3	658	1140	22232	3532	22.2	1500	1900
160	290	80	3	658	1140	22232/W33	3532Y	22.1	1500	1900
160	340	114	4	1170	1730	22332/W33	3632Y	49.9	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
170	260	67	2.1	450	1010	23034	3003134	14.7	1600	2000
170	260	67	2.1	450	1010	23034/W33	3003134Y	14.6	1600	2000
170	280	109	2.1	700	1200	24134/W33	-	27	1300	1700
170	310	86	4			22234			1300
170	310	86	4	730	1300	22234/W33	3534Y	27.2	1300	1700
170	310	110	4	1160	1835	23234CA	3053234H	37.1	950	1300
170	360	120	4			22334			950
170	360	120	4	1200	2060	22334/W33	3634Y	59.3	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
180	280	100	2.1	930	1820	24036	4003136	22.5	950	1300
180	280	100	2.1	930	1820	24036/W33	4003136Y	22.3	950	1300
180	300	96	3	695	1480	23136	3003736	27.1	1100	1500
180	300	96	3	695	1480	23136/W33	3003736Y	26.8	1100	1500
180	300	96	3	695	1480	23136/C9	3003736U	27.1	1100	1500
180	300	96	3	695	1480	23136/W33YA2	3003736KY	26.8	1100	1500
180	300	96	3	695	1480	23136N	3203736	26.4	1100	1500
180	320	86	4	750	1370	22236	3536	28.6	1300	1700
180	320	86	4	750	1370	22236/W33	3536Y	28.3	1300	1700
180	320	112	4	1280	2170	23236CA	3053236H	39.6	900	1200
180	320	112	4	1280	2170	23236CA/W33	3053236HY	39.5	900	1200
180	320	112	4	1280	2170	23236CA/W33YA2	3053236HKY	39.4	900	1200
180	380	126	4	1430	2210	22336	3636	80.7	900	1200
180	380	126	4	1430	2210	22336/W33	3636Y	79.9	900	1200

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
160	240	60	2.1 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 160 240 60 2.1 376 825 23032 3003132 13.5 1700 2200 160 240 60 2.1 376 825 23032/W33 3003132Y 13.4 1700 2200 160 240 80 2.1 652 1230 24032C 4053132 12.9 1100 1500 160 240 80 2.1 652 1230 24032C/W33 4053132Y 12.8 1100 1500 160 270 109 2.1 1040 1880 24132C 4053732 25.4 950 1300 160 270 109 2.1 1040 1880 24132C/W33 4053732Y 25 950 1300 160 290 80 3 658 1140 22232 3532 22.2 1500 1900 160 290 80 3 658 1140 22232/W33 3532Y 22.1 1500 1900 160 340 114 4 1170 1730 22332/W33 3632Y 49.9 950 1300 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 170 260 67 2.1 450 1010 23034 3003134 14.7 1600 2000 170 260 67 2.1 450 1010 23034/W33 3003134Y 14.6 1600 2000 170 280 109 2.1 700 1200 24134/W33 - 27 1300 1700 170 310 86 4 22234 1300 170 310 86 4 730 1300 22234/W33 3534Y 27.2 1300 1700 170 310 110 4 1160 1835 23234CA 3053234H 37.1 950 1300 170 360 120 4 22334 950 170 360 120 4 1200 2060 22334/W33 3634Y 59.3 950 1300 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min d D B rmin Cr Cor Current Original Kgs Grease Oil 180 280 100 2.1 930 1820 24036 4003136 22.5 950 1300 180 280 100 2.1 930 1820 24036/W33 4003136Y 22.3 950 1300 180 300 96 3 695 1480 23136 3003736 27.1 1100 1500 180 300 96 3 695 1480 23136/W33 3003736Y 26.8 1100 1500 180 300 96 3 695 1480 23136/C9 3003736U 27.1 1100 1500 180 300 96 3 695 1480 23136/W33YA2 3003736KY 26.8 1100 1500 180 300 96 3 695 1480 23136N 3203736 26.4 1100 1500 180 320 86 4 750 1370 22236 3536 28.6 1300 1700 180 320 86 4 750 1370 22236/W33 3536Y 28.3 1300 1700 180 320 112 4 1280 2170 23236CA 3053236H 39.6 900 1200 180 320 112 4 1280 2170 23236CA/W33 3053236HY 39.5 900 1200 180 320 112 4 1280 2170 23236CA/W33YA2 3053236HKY 39.4 900 1200 180 380 126 4 1430 2210 22336 3636 80.7 900 1200 180 380 126 4 1430 2210 22336/W33 3636Y 79.9 900 1200	376	825	23032	3003132	13.5	1700	2200
160	240	60	2.1	376	825	23032/W33	3003132Y	13.4	1700	2200
160	240	80	2.1	652	1230	24032C	4053132	12.9	1100	1500
160	240	80	2.1	652	1230	24032C/W33	4053132Y	12.8	1100	1500
160	270	109	2.1	1040	1880	24132C	4053732	25.4	950	1300
160	270	109	2.1	1040	1880	24132C/W33	4053732Y	25	950	1300
160	290	80	3	658	1140	22232	3532	22.2	1500	1900
160	290	80	3	658	1140	22232/W33	3532Y	22.1	1500	1900
160	340	114	4	1170	1730	22332/W33	3632Y	49.9	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
170	260	67	2.1	450	1010	23034	3003134	14.7	1600	2000
170	260	67	2.1	450	1010	23034/W33	3003134Y	14.6	1600	2000
170	280	109	2.1	700	1200	24134/W33	-	27	1300	1700
170	310	86	4			22234			1300
170	310	86	4	730	1300	22234/W33	3534Y	27.2	1300	1700
170	310	110	4	1160	1835	23234CA	3053234H	37.1	950	1300
170	360	120	4			22334			950
170	360	120	4	1200	2060	22334/W33	3634Y	59.3	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
180	280	100	2.1	930	1820	24036	4003136	22.5	950	1300
180	280	100	2.1	930	1820	24036/W33	4003136Y	22.3	950	1300
180	300	96	3	695	1480	23136	3003736	27.1	1100	1500
180	300	96	3	695	1480	23136/W33	3003736Y	26.8	1100	1500
180	300	96	3	695	1480	23136/C9	3003736U	27.1	1100	1500
180	300	96	3	695	1480	23136/W33YA2	3003736KY	26.8	1100	1500
180	300	96	3	695	1480	23136N	3203736	26.4	1100	1500
180	320	86	4	750	1370	22236	3536	28.6	1300	1700
180	320	86	4	750	1370	22236/W33	3536Y	28.3	1300	1700
180	320	112	4	1280	2170	23236CA	3053236H	39.6	900	1200
180	320	112	4	1280	2170	23236CA/W33	3053236HY	39.5	900	1200
180	320	112	4	1280	2170	23236CA/W33YA2	3053236HKY	39.4	900	1200
180	380	126	4	1430	2210	22336	3636	80.7	900	1200
180	380	126	4	1430	2210	22336/W33	3636Y	79.9	900	1200

Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
160	240	60	2.1	376	825	23032	3003132	13.5	1700	2200
160	240	60	2.1	376	825	23032/W33	3003132Y	13.4	1700	2200
160	240	80	2.1	652	1230	24032C	4053132	12.9	1100	1500
160	240	80	2.1	652	1230	24032C/W33	4053132Y	12.8	1100	1500
160	270	109	2.1	1040	1880	24132C	4053732	25.4	950	1300
160	270	109	2.1	1040	1880	24132C/W33	4053732Y	25	950	1300
160	290	80	3	658	1140	22232	3532	22.2	1500	1900
160	290	80	3	658	1140	22232/W33	3532Y	22.1	1500	1900
160	340	114	4	1170	1730	22332/W33	3632Y	49.9	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
170	260	67	2.1	450	1010	23034	3003134	14.7	1600	2000
170	260	67	2.1	450	1010	23034/W33	3003134Y	14.6	1600	2000
170	280	109	2.1	700	1200	24134/W33	-	27	1300	1700
170	310	86	4			22234			1300
170	310	86	4	730	1300	22234/W33	3534Y	27.2	1300	1700
170	310	110	4	1160	1835	23234CA	3053234H	37.1	950	1300
170	360	120	4			22334			950
170	360	120	4	1200	2060	22334/W33	3634Y	59.3	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
180	280	100	2.1	930	1820	24036	4003136	22.5	950	1300
180	280	100	2.1	930	1820	24036/W33	4003136Y	22.3	950	1300
180	300	96	3	695	1480	23136	3003736	27.1	1100	1500
180	300	96	3	695	1480	23136/W33	3003736Y	26.8	1100	1500
180	300	96	3	695	1480	23136/C9	3003736U	27.1	1100	1500
180	300	96	3	695	1480	23136/W33YA2	3003736KY	26.8	1100	1500
180	300	96	3	695	1480	23136N	3203736	26.4	1100	1500
180	320	86	4	750	1370	22236	3536	28.6	1300	1700
180	320	86	4	750	1370	22236/W33	3536Y	28.3	1300	1700
180	320	112	4	1280	2170	23236CA	3053236H	39.6	900	1200
180	320	112	4	1280	2170	23236CA/W33	3053236HY	39.5	900	1200
180	320	112	4	1280	2170	23236CA/W33YA2	3053236HKY	39.4	900	1200
180	380	126	4	1430	2210	22336	3636	80.7	900	1200
180	380	126	4	1430	2210	22336/W33	3636Y	79.9	900	1200

Di Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 320 76 3 758 1280 2644 3844 21.6 1000 1400 370 120 4 1050 2350 23144 3003744 54 900 1200 370 120 4 1050 2350 23144/W33 3003744Y 53.5 900 1200 400 108 4 1200 2220 22244 3544 57.6 950 1300 400 108 4 1200 2220 22244/W33 3544Y 57.1 950 1300 400 144 4 2070 3620 23244 3003244 94.6 750 950 400 144 4 2070 3620 23244/W33 3003244Y 94.2 750 950 460 145 5 1700 3200 22344 3644 130 750 950 460 145 5 1700 3200 22344/W33 3644Y 129 750 950 mm Chamfer Basic Load Ratings Designation Weight r/min D B rmin Cr Cor Current Original Kgs Grease Oil 420 114 4 1600 2600 22246 3546 69.5 750 950 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 360 92 3 820 2060 23048 3003148 37.6 1000 1400 360 92 3 820 2060 23048/W33 3003148Y 37.4 1000 1400 360 118 3 1000 2200 24048CA/W33 - 41.7 900 1200 400 128 4 1200 2850 23148 3003748 77.2 850 1100 400 128 4 1200 2850 23148/W33 3003748Y 75.2 850 1100 400 160 4 2100 3980 24148/W33 4003748Y 81.6 480 600 440 120 4 1870 2890 22248 3548 85 900 1200 440 160 4 2490 4490 23248 3003248 128 670 850 440 160 4 2490 4490 23248/W33 3003248Y 127 670 850 500 155 5 1780 3250 22348 3648 154 670 850 500 155 5 1780 3250 22348/W33 3648Y 153 670 850 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 365 87 3 950 1650 2650 3750 32.2 1000 1400 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 360 57 2.1 800 1500 23952CA/W33 - 22.5 1000 1400 400 104 4 1000 2450 23052 3003152 51.5 900 1200 400 104 4 1000 2450 23052/W33 3003152Y 51.2 900 1200 400 140 4 1300 3000 24052CA/W33 - 64.4 850 1100 440 144 4 1450 3320 23152 3003752 96 800 1000 440 180 4 2660 5180 24152C/W33 4053752Y 113 800 1000 480 130 5 2160 3400 22252CA 53552H 105 850 1100 480 174 5 2800 4550 23252C/W33 3053252Y 140 630 800 480 174 5 2800 4550 23252CA 3053252H 151 630 800 480 174 5 2800 4550 23252CA/W33 3053252HY 151 630 800 490 153 4 2070 3650 2652 3752 140 670 850 540 165 6 2250 4190 22352 3652 193 630 800 540 165 6 2250 4190 22352/W33 3652Y 192 630 800 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 380 75 2.1 800 1500 23956CA/W33 3113956Y 24.5 900 1200 420 106 4 1100 2680 23056 3003156 62 850 1100 420 106 4 1100 2680 23056/W33 3003156Y 61.5 850 1100 420 140 4 1200 2800 24056CA/W33 - 67.2 800 1000 460 146 5 1590 3630 23156 3003756 95.5 750 950 460 180 5 2000 4100 24156CA/W33 - 119 750 950 500 130 5 1690 3380 22256 3556 126 800 1000 500 130 5 1690 3380 22256/W33 3556Y 124 800 1000 500 176 5 2880 4900 23256 3003256 153 600 750 500 176 5 2880 4900 23256/W33 3003256Y 152 600 750 580 175 6 3500 5150 22356 3656 238 600 750 580 175 6 3500 5150 22356/W33 3656Y 238 600 750 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 460 118 4 1260 3070 23060 3003160 75.2 800 1000 460 118 4 1260 3070 23060/W33 3003160Y 74.6 800 1000 460 160 4 2360 5010 24060C/W33 4053160Y 101 600 750 500 160 5 2670 4800 23160 3003760 134 670 850 500 160 5 2670 4800 23160/W33 3003760Y 133 670 850 500 200 5 3100 5800 24160C 4053760 160 530 670 500 200 5 3100 580 24160C/W33 4053760Y 159 530 670 540 140 5 2610 4250 22260 3560 143 750 950 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 440 90 3 1060 2390 23964K 3113964 45.1 900 1200 480 121 4 1380 3260 23064 3003164 81.5 800 1000 480 121 4 1380 3260 23064/W33 3003164Y 80.9 800 1000 480 160 4 2440 5050 24064 4003164 103 560 700 540 218 5 3550 6650 24164 4003764 252 480 600 540 218 5 3550 6650 24164/W33 4003764Y 251 480 600 580 208 5 3900 6900 23264 3003264 260 500 630 580 208 5 3900 6900 23264/W33 3003264Y 259 500 630 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 460 90 3 1330 2840 23968 3003968 50.5 900 1200 520 133 5 1580 3810 23068 3003168 109 700 900 520 133 5 1580 3810 23068/W33 3003168Y 109 700 900 520 180 5 2920 6050 24068/W33 4003168Y 160 530 670 580 190 5 3200 6200 23168/W33 300368Y 207 500 630 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 480 90 3 1130 2710 23972 3003972 49.1 850 1100 540 134 5 1750 4180 23072 3003172 114 670 850 540 134 5 1750 4180 23072/W33 3003172Y 114 670 850 540 180 5 2930 6100 24072C 4053172 149 500 630 540 180 5 2930 6100 24072C/W33 4053172Y 148 500 630 600 192 5 3800 7100 23172 3003772 222 560 700 600 192 5 3800 7100 23172/W33 3003772Y 221 560 700 600 243 5 4300 8000 24172 4003772 333 430 530 600 243 5 4300 8000 24172CA/W33 4003772HY 338 430 530 750 224 7.5 4180 7500 22372 3672 494 340 430 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 520 106 4 1870 4100 23976 3003976 73.5 800 1000 560 135 5 2500 5100 23076 3003176 122 630 800 620 194 5 2680 6240 23176 3003776 244 400 500 620 194 5 2680 6240 23176/W33 3003776Y 243 400 500 Dimensions Chamfer Basic Load Ratings Designation Weight Speed limited mm r/min D B rmin Cr Cor Current Original Kgs Grease Oil 590 142 6 2290 4420 2680 3880 145 400 500 600 148 5 2970 5900 23080 3003180 165 600 750 600 148 5 2970 5900 23080/W33 3003180Y 165 600 750 650 200 6 4150 7900 23180 3003780 239 380 480 650 250 6 4500 8900 24180 - 326 340 430 650 200 6 4150 7900 23180/W33 3003780Y 238 380 480 720 256 6 5800 10400 23280 3003280 530 340 430 mensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
160	240	60	2.1	376	825	23032	3003132	13.5	1700	2200
160	240	60	2.1	376	825	23032/W33	3003132Y	13.4	1700	2200
160	240	80	2.1	652	1230	24032C	4053132	12.9	1100	1500
160	240	80	2.1	652	1230	24032C/W33	4053132Y	12.8	1100	1500
160	270	109	2.1	1040	1880	24132C	4053732	25.4	950	1300
160	270	109	2.1	1040	1880	24132C/W33	4053732Y	25	950	1300
160	290	80	3	658	1140	22232	3532	22.2	1500	1900
160	290	80	3	658	1140	22232/W33	3532Y	22.1	1500	1900
160	340	114	4	1170	1730	22332/W33	3632Y	49.9	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
170	260	67	2.1	450	1010	23034	3003134	14.7	1600	2000
170	260	67	2.1	450	1010	23034/W33	3003134Y	14.6	1600	2000
170	280	109	2.1	700	1200	24134/W33	-	27	1300	1700
170	310	86	4			22234			1300
170	310	86	4	730	1300	22234/W33	3534Y	27.2	1300	1700
170	310	110	4	1160	1835	23234CA	3053234H	37.1	950	1300
170	360	120	4			22334			950
170	360	120	4	1200	2060	22334/W33	3634Y	59.3	950	1300
Dimensions			Chamfer	Basic Load Ratings		Designation		Weight	Speed limited
mm									r/min
d	D	B	rmin	Cr	Cor	Current	Original	Kgs	Grease	Oil
180	280	100	2.1	930	1820	24036	4003136	22.5	950	1300
180	280	100	2.1	930	1820	24036/W33	4003136Y	22.3	950	1300
180	300	96	3	695	1480	23136	3003736	27.1	1100	1500
180	300	96	3	695	1480	23136/W33	3003736Y	26.8	1100	1500
180	300	96	3	695	1480	23136/C9	3003736U	27.1	1100	1500
180	300	96	3	695	1480	23136/W33YA2	3003736KY	26.8	1100	1500
180	300	96	3	695	1480	23136N	3203736	26.4	1100	1500
180	320	86	4	750	1370	22236	3536	28.6	1300	1700
180	320	86	4	750	1370	22236/W33	3536Y	28.3	1300	1700
180	320	112	4	1280	2170	23236CA	3053236H	39.6	900	1200
180	320	112	4	1280	2170	23236CA/W33	3053236HY	39.5	900	1200
180	320	112	4	1280	2170	23236CA/W33YA2	3053236HKY	39.4	900	1200
180	380	126	4	1430	2210	22336	3636	80.7	900	1200
180	380	126	4	1430	2210	22336/W33	3636Y	79.9	900	1200

About Our Company:
1. With more than 30 years experiences of producing and R&D bearings.
2. All of our roller bearings and ball bearings with CE ISO TUV certificate
3. Our products have been exported to about thirty countries/areas and enjoyed a high reputation in the domestic and overseas markets.
4. The OEM and ODM are available.
5. Professional after-sales team.
6. Offering the most reasonable price.
Similar series models:

Model			Boundary Dimensions (mm)			Basic Load Rating (KN)		Mass
			d	D	B	C	Co	Kg
21307	21307K	21307W33	35	80	21	70.7	73.3	0.547
21308	21308K	21308W33	40	90	23	87.6	92	0.751
21309	21309K	21309W33	45	100	25	105	112	1.01
21310	21310K	21310W33	50	110	27	121	129	1.3
21311	21311K	21311W33	55	120	29	141	152	1.66
21312	21312K	21312W33	60	130	31	165	175	1.99
21313	21313K	21313W33	65	140	33	186	197	2.45
21314	21314K	21314W33	70	150	35	206	223	2.98
21315	21315K	21315W33	75	160	37	249	270	3.63
21316	21316K	21316W33	80	170	39	272	306	4.29
21317	21317K	21317W33	85	180	41	297	351	5.19
21318	21318K	21318W33	90	190	43	320	387	6.09
21319	21319K	21319W33	95	200	45	366	500	7.15
21320	21320K	21320W33	100	215	47	397	546	8.81
21322	21322K	21322W33	110	240	50	460	634	9.46

Main products:
1. Deep Groove Ball Bearings
2. Spherical Roller Bearing
3. Tapered Roller Bearing
4. Thrust Ball Bearing
5. Cylindrical Roller Bearing
6. Angular Contact Ball Bearing
7. Pillow Block Bearing
8. Other types of bearings
Our Package: *industrial pakage+outer carton+pallets
*single box+outer carton+pallets
*Tube package+middle box+outer carton+pallets
*According to your requirement
Transportation:
1. International Express
2. By air plant
3. International Seaborne shipping
4. International railway transportation
FAQ:
1. Could you please tell me the delivery time of your goods?3-7days stock goods and other goods according to your quantity about 3-30 days2. How about the MOQ of your product?our MOQ is 1 piece3. Can you tell me the payment terms that can be accepted by your company?T/T, Western Union, Paypal, L/C4. Can you accept OEM and customize?Yes, we can customize it for you according to your sample, blueprint, or drawings with parameters5. Can you supply door-to-door service?Yes, by Express(DHL, FEDEX, UPS, EMS)it will take 3-7 days to your country6. Can supply samples for free?Yes, we can supply our clients with free samples, but you have to afford the freight cost.7. What certificate does your factory own?we have TUV and ISO9001:2008 certificates, which we can do for you if you need other certificates.8. Are you a factory or trading company?Factory+trading company9. How long do your bearings guarantee?1 year, customers need to supply us with the bearings' pictures and sent the bearings back.10. Can you tell me the material of your bearings?Stainless steel, Gcr15(bearing steel), carbon steel, chrome steel, plastic, ceramic11. Can you tell me the packing of your bearings?single plastic bag+single paper box+single or wooden case+pallet
Contact us :
