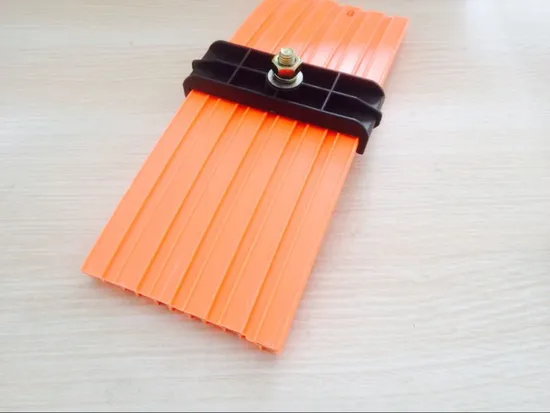

High Quality Htr-3-10/50A High Tro Reel System Seam Conductor Rail for Hoisting Equipments
| US$7.00-9.00 | 100 Meters (MOQ) |
Basic Info.
Model NO.
HTR-3-10/50A
Poles
3 Ploes
Current
50~140A
Length
in Reel
Conductor Material
Copper
Rated Voltage
600V
Sleeve Material
PVC
Conductor Qty
3p 4p 6p
Nsulation Material
Quality PVC
Transport Package
Carton or Wooden Case
Trademark
NANTE
Origin
China
Production Capacity
100000 Meters Per Year
Product Description
Crane Copper Busbar System For Power Supply*Sepecification
1. Conductor Qty: 3P 4P 6P
2. Current: 50A~140A
3. Conductor material: Oxygen-free copper
4. Insulation Material: Quality PVC
*Application
Crane, low power curve hoisting equipments, mobile machinery, machinery plants, small steel factory, Amusement equipment etc.
Ambient temperature <55ºC
*Advantages
1. No joint, long distance continuous power supply.
2. Small space, Low noise.
3. Low voltage drop.
4. Stable operation, fast speed, Good conductivity and contact performance.
5. Easy to install, replace and transport.
6. Long service life.
7. The minimum bend radius is 750mm.
*Technical parameters
| Type | Poles | Conductor Cross Section (mm2) | Max. Current (A) | Weight (kg/m) |
| HTR-3-10/50A | 3 | 3x10 | 50A | 0.57 |
| HTR-3-15/80A | 3 | 3x15 | 80A | 0.73 |
| HTR-3-20/100A | 3 | 3x20 | 100A | 0.85 |
| HTR-3-25/120A | 3 | 3x25 | 120A | 0.98 |
| HTR-3-35/140A | 3 | 3x35 | 140A | 1.27 |
| Type | Poles | Conductor Cross Section (mm2) | Max. Current (A) | Weight (kg/m) |
| HTR-4-10/50A | 4 | 3x10+1x10 | 50A | 0.75 |
| HTR-4-15/80A | 4 | 3x15+1x10 | 80A | 0.90 |
| HTR-4-20/100A | 4 | 3x20+1x10 | 100A | 1.05 |
| HTR-4-25/120A | 4 | 3x25+1x10 | 120A | 1.15 |
| HTR-4-35/140A | 4 | 3x35+1x10 | 140A | 1.43 |
| Type | Poles | Conductor Cross Section (mm2) | Max. Current (A) | Weight (kg/m) |
| HTR-6-10/50A | 6 | 6x10 | 50A | 1.10 |
| HTR-6-15/80A | 6 | 6x15 | 80A | 1.50 |
