2000W Fiber Laser Cutting Machine

Product Description

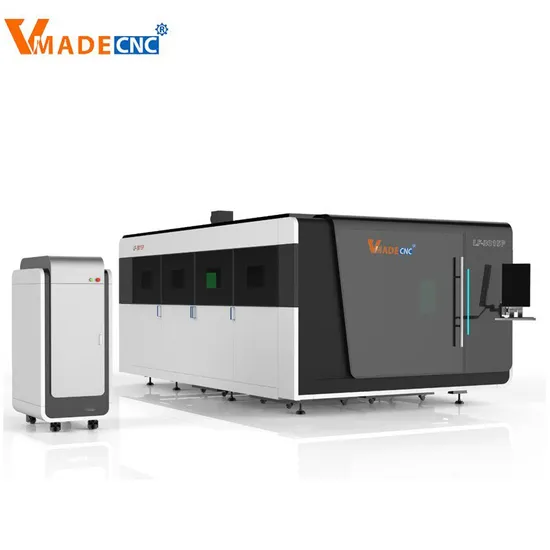

VLF3015P Enclosed Fiber Laser Cutting Machine
Product Description
The machine is welded with a high-intensity overall sheet,and after high temperauture annealing,the machine can be used for 20 years without any deformation.With imported precision gear and rack,linear guide rail and transmission,the machine tool is of high precision,high efficiency and stability.Equipped with advanced wireless handheld terminal,the machine can be operated with remote control.The equipment adopts the laser special matching system,high performance servo motor driver,this shorten the standy time and impove the work efficiency more than 30%,is the integration of penumatic,photoelectric,numerical control and other advanced technologies as one of the high-tech products. The product is specialized in cutting a variety of metal sheet,quality cutting carbon steel plate,stainless steel plate,galvanized sheet,electrolytic plate,brass plate,manganese steel,silicon steel and other metal materials.
Configuration Upper smoking system
After customer feedback and summary of practical experience, we adopted the upper smoke to fundamentally solve the problem of smoke exhaust of the sealed cabinet machine.
Axial fan exhaust system
1. The structure is more reasonable
2. The performance has been greatly improved, the full pressure effectis 89.5%
3. Noise farmland, the noise (compare with level A) is reduced by6dB
4.Anti-corrosion axial fan, it is safer to transport waste.
Dual PC one is formonitor ,one is for controller panel
The ultra-clear picture quality has higher color reproduction and better performance, enabling ultra-clear pictures in every monitored place.
Dual cameras allow users to clearly see the processing process while operating the interface, which is convenient for use.
The 3rd Generation Aviation Aluminum Gantry It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness,
light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
Laser interferometer guarantees transmission accuracy
Machine bed level detection
Product Paramenters

Model	1530P Fiber laser cutting machine	Working Table	Saw tooth
Working Area	1500*3000mm and 3000mm length Exchange Pallet	Maximum Idle Running Speed	1200mm/s
Laser Power	1000w/1500w/2000w/3000w or bigger	Position Accuracy	±0.05mm/m
Laser Wave Length	1064nm	Position Speed	20m/min
Minimum Line Width	± 0.02mm	Cutting Thickness	Cutting Thickness
Control System	Cypcut	Position Type	Red Dot
Power Consumption	≤12KW	Working Voltage	380V/50Hz
Auxiliary Gas	Oxygen,Nitrogen,Air	Working Life of Fiber Module	More than 100000 hours
Fiber Laser Cutting Head	Raytools(AutoFocus) Laser Cutting Head	Focus Lens	Imported
Driver System	1500W Fuji servo motor made in Japan	Liner Guider System	PMI made in Taiwan , (Option THK made in Japan)
Transmit System	Dual Rack & Pinion type	Rack System	Germany Mordoli/Neugart
Chain System	IGUS made in Germany	Warranty Time	3 years

After Sales Service
Pre-sale service:
According to the needs of customers, from the perspective of customers, provide practical technical advice and corresponding product information; from the perspective of technical feasibility, assist customers in analyzing the market, and provide processing bases for customers to conduct field visits and inspections. On-sale service:
Carry out on-site surveys of the customer's processing site, assist customers in planning, designing production bases, and placement of water, electricity, and gas equipment according to the on-site conditions, and provide technical training for customer operators to ensure that operators are proficient in equipment operation Regulations, smoothly put into production.
After-sales service:
The entire set of equipment is installed and tested at the customer's site. Our company will occasionally arrange technicians to the customer's production site for technical tracking. According to.The use of equipment, routine maintenance and inspection of the pen involved, answering technical problems encountered by customers in operation, and upgrading training for customer operators, corresponding 24 hours a day.
Package and shipping
Company Introduction
Jinan Vmade Science & Technology Co., Ltd. is an advanced modern enterprise specializing in the research and development,production and sales of the optic, mechanical and electronic products. We have the first class research and development center and professional production base at present, and lots of experienced high-tech producing and managing staff as well.We have strong economic and technological strength; our products have been well received worldwide because of our first class products and first class after-sales service. We have established long stable relationships with many famous universities and science and technology institutes in Shanghai and Beijing so that we can always improve our products and meet the demands of many customers.On the basis of absorbing the international advanced CNC technology, our company has developed many laser engraving machines, laser cutting machines, laser marking machines, engraving machines, and cutting plotters. They are widely used in advertising, engraving, shoes samples, garments, rubber molding, and arts and crafts fields. FAQ
Q: How can I choose the most suitable machine?
A: In order to recommend you the most suitable machine model, please let us know the following details:
1.What is your material?
2.The size of material?
3.The thickness of material? Q: This is the first time I use this kind of machine, is it easy to operate?
A: A manual is already included in our product packaging,we also provide 24/7 telephone support to our customers and offer a life time warranty.Jinan Vmade as the largest laser manufacturing factory, we have free installation for optical fiber laser machine in addition to the operating instructions door-to-door free installation services we also provide professional engineers, to provide you for free door-to-door training instruction, so please be assured use Q: Why choose agent and OEM?
A: The minimum order is 1 set machine, if you order more one time, the price will be better,Jinan Vmade focus on laser research and development production of 14 years,have 31 national patents, It is the largest fiber laser cutting machine, engraving machine and marking machine manufacture in northen of China,we have advanced technology, quality certification CE, ISO 9001, and FDA. products are exported to more than 100 countries and areas, as a focus on laser industry manufacturers, not only can give you a good quality assurance, but also can offer you a good price.Please tell us what you need 1.What is your working size? 2.What material do you need to cut/engrave? 3. What is the thickness and size of each materials? 4.What is your business industry? signage or art craft works or what else ? 5.What is your full name,email,company name,website and contact number ? If you have any questions, Please contact us!
