Worktable Manual Sumore Wooden Box ISO30/ISO40 Bench Drilling Machine Milling

Product Description

Product Description
ISO30 ISO40 variable speed available universal vertical and horizontal milling machine SP2242 universal milling machine fresadora universal turret milling machine SP2241 ZAY series Universal vertical milling drilling machine price China metal manual bridgeport universal gear drilling milling machine 50mm horizontal vertical universal milling machine fresadora universal cutter mini horizontal vertical milling machine for hobby mini manual vertical milling and drilling machine price SUMORE small milling drilling machine cheap mini torno fresadora Universal Vertical Drilling and milling machine for metal Hobby desktop mini desktop mill drill milling machine Mini metal milling machine made in China, but same quality with Japanese made milling machine Bench Type mini universal Milling Machine is one of our most economic and durable mini universal Milling Machine. It sells very well; it is new condition not used universal Milling Machine. And it is small in size and delicate in design. This milling machine is made in China, but with same quality of Japan milling machine. The main features are as below:
Quick detais
1.Spindle taper: R8, Optional ISO30/ISO40
2.T slot:3*16mm
3.Distance from spindle to table.:0~420 mm
4.Head tilt left & right:+45°,Swivel:+90°
5.Spindle speed: standard 80-5440rpm/ Opotinal 65-4200 rpm
6.Working tabel:254*1270mm/305*1370
7.Power:2.25kW or 3.75KW
Features/Advantages
1.Three axis hardened treatment, high rigidity.2.Vertical horizontal multi-functional ,drilling ,milling, boring operation.3.X axis mechanical feed,Y.Z axis can be added the device4.Gear transmission milling head, stable transmission, compact structure ,easy maintenance, easy to operate
5.Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press6.Easily shiftable gear drive ensures power transmission without losses
7.This machine tool can be equipped with multi-axis machines

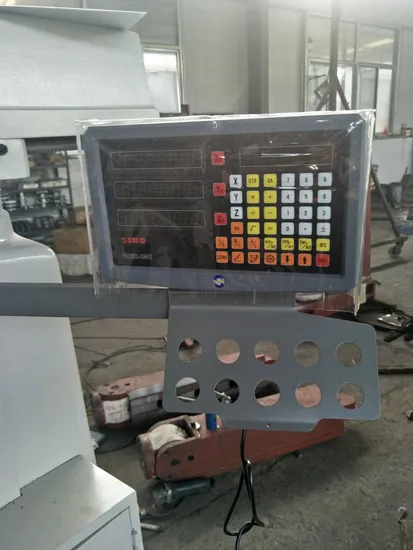

8.Double 55°dovetail guide way is adopted on both Y and Z axis.9.The guide way on saddle is lined with TF wearable material. So it is easy to adjust.10.The worktable surface and 3 axis guide way are hardened and precision ground.11.Gear transmission, high processing efficiency12.Turret milling head13.Power feed supplied at extra cost14.DRO supplied at extra cost
Product Parameters

Model No. SP2242 Table size 254*1270/305*1370 Longitudinal travel 850mm Cross travel 400mm Vertical travel 420mm T-slot no. and size 3*16 Ram travel 470mm Distance from spindle nose to table surface 0~420mm Spindle hole taper Standard:R8 Opiotnal:ISO30/ISO40 Spindle travel 127mm Spindle speed Standard 16 steps 50HZ: 80~5440 Optional stepless 65~4200 Main motor 2.25Kw or 3.75Kw Diameter of quill 95mm Distance from spindle to table 90~370mm Distance from horizontal spindle to table 0~280mm Distance from spindle to column 200~700mm Spindle speeds(16 step)80~5440 r.p.m(V) 40~1300r.p.m(H) Spindle travel 127mm Feeding of quill (3 step)0.04 0.08 015 Swivel 90° Head tilting 45° Dimension of package 1616/1766*1550*2080mm Net weight 1420/1650kg Gross weight 1380/1590kg

Company Profile
As the professional and experienced manufacturer of lathe, mill , drill , cnc and other tools ,Shanghai SUMORE Industrial Group has been in this filed for more than 20 years.
We have got the certificates of CE, GS ,Rohs , UL ,etc . Also we have been in business with GSK ,Siemens ,Faunc and other famous companies within 50 countries all over the world.
Whether you need the standard or the customerised products , please contact us directly . Our professional and experienced engineers and after sale service team will meet your needs.
Hope to cooperate with you!
