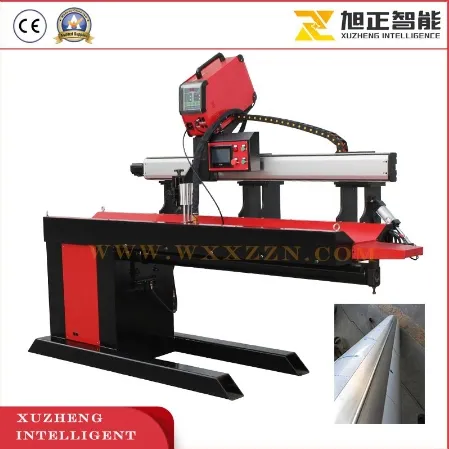

Solar Water Heater Pressure Vessel Automatic Straight Seam Welding Machine for Stainless Steel Carbon Steel

Product Description

* Brief Introduction:
This straight seam welding machine adopts the keys pressing mechanism, for work-piece in welding process provides a uniform and stable clamping force and cooling
effect, reduces the deformation of welding and post weld heat-affected zone of the
weld impact. Thus ensuring the work-piece welding is flat and smooth.
Welding process using a welding process of welded forming on both sides, ensuring
weld 100% welded. It is suitable for MIG/MAG and TIG welding of ferrous or nonferrous metals.
Customers can choose the equipment, gas protection, water cooling, seam tracking.
* Welding Results:
* Technical Data

Standard Straight Seam Welding Machine
ITEM	XZZFH-1000	XZZFH-1500	XZZFH-2000
Rated Power(KW)	14	14	14
Air Pressure Range(Mpa)	0.1~0.6	0.1~0.6	0.1~0.6
Work-piece Thickness(mm)	0.8~3	0.8~4	0.8~4
Work-piece Diameter(mm)	120~600	120~600	120~600
Work-piece Length(mm)	1000	1500	2000

* Our Factory Workshop:
* Advantages:
1 It can control arc start and stop time precisely.
2 Programming is flexible according to products.
3 Arc striking position is precise.
4 Weld seam looks full and nice.
* FAQ:
Q: What is the minimum diameter the machine can weld?
A: It is about 110mm inner diameter.
Q: Can we weld square work-piece?
A: Yes, please offer us your work-piece dimension.
Q: Is discontinuous welding available?
A: Yes, some simple settings.
Q: What parameters do we have to offer while sending inquiry?
A: Your work-piece length / diameter range and material.
